2.5 SAPS on-board electronics

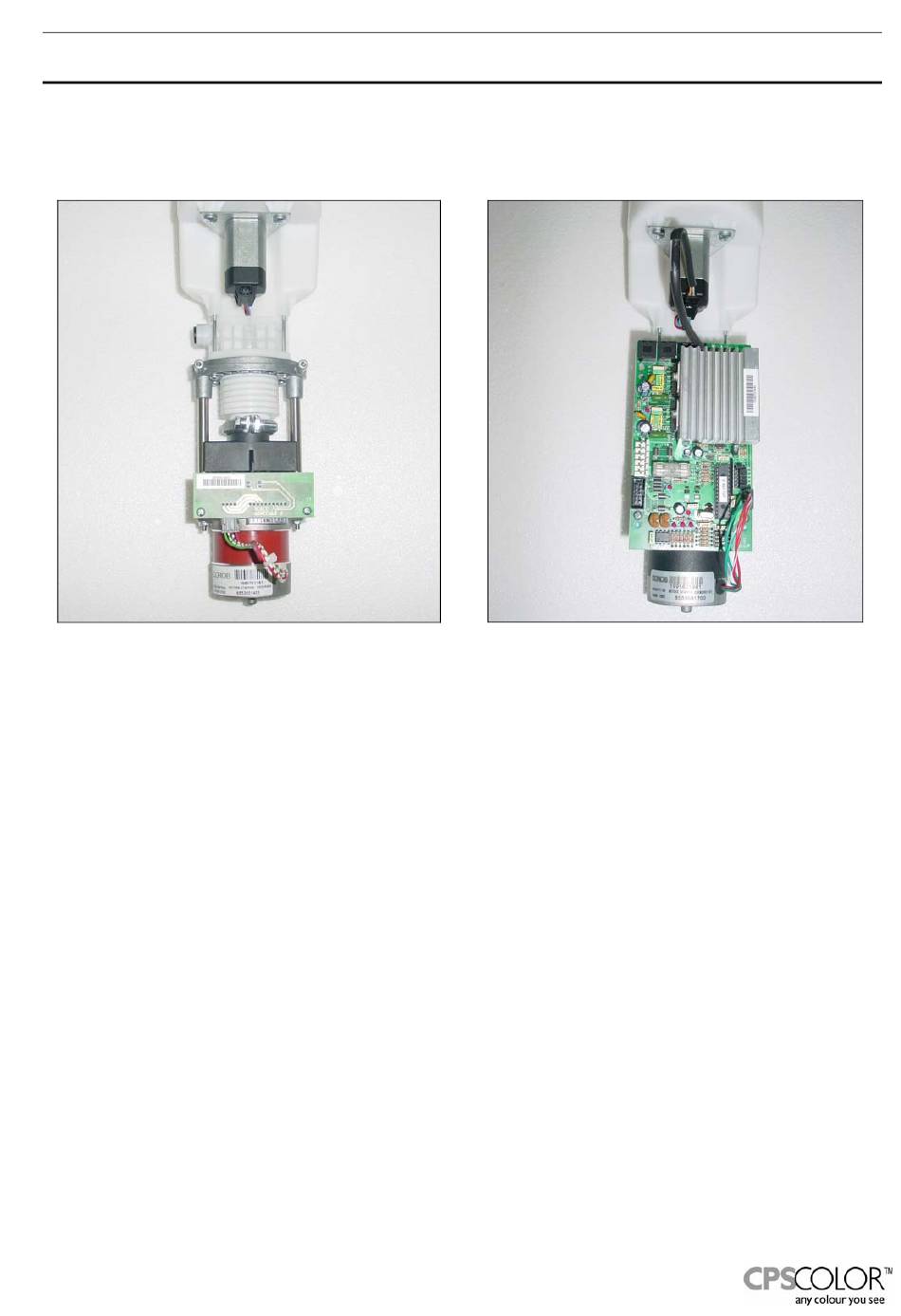

Each SAPS is equipped with an electronic board, attached in the lower part.
The control electronics differs based on the type of circuit: sequential or simultaneous.
CBModule (sequential circuit)
The CBModule board is connected to the CBMono
board.
Version 1.0 - rev0 - May 2006
Figure 7
CBSlave (simultaneous circuit)
The CBSlave board is connected to the CBMaster
board and to the CBMB board.
Figure 8
2-7
