3-22

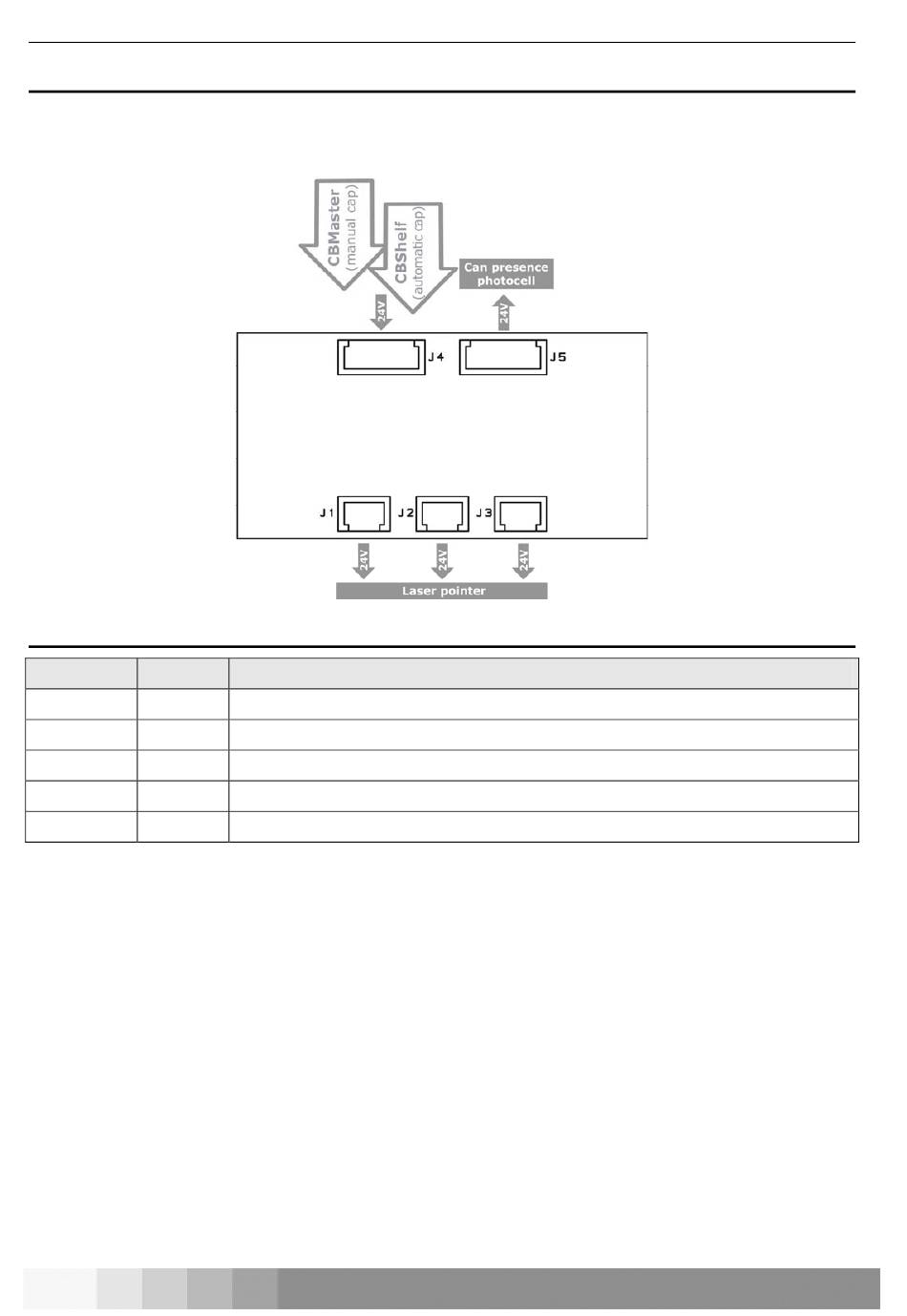

3.10 CBLaser

The CBLaser board is present only when the dispenser is equipped with the option Bung Hole Locator Laser.
3.10.1

Connectors

Connectors
Type
J1
output
J2
output
J3
output
J4
input
J5
output
Description
power supply (+24V) to the laser pointer
power supply (+24V) to the laser pointer
power supply (+24V) to the laser pointer
power supply (+24V) from CBShelf or from CBMaster
to can detection photocell
COROB™ AUTOMATIC DISPENSERS
