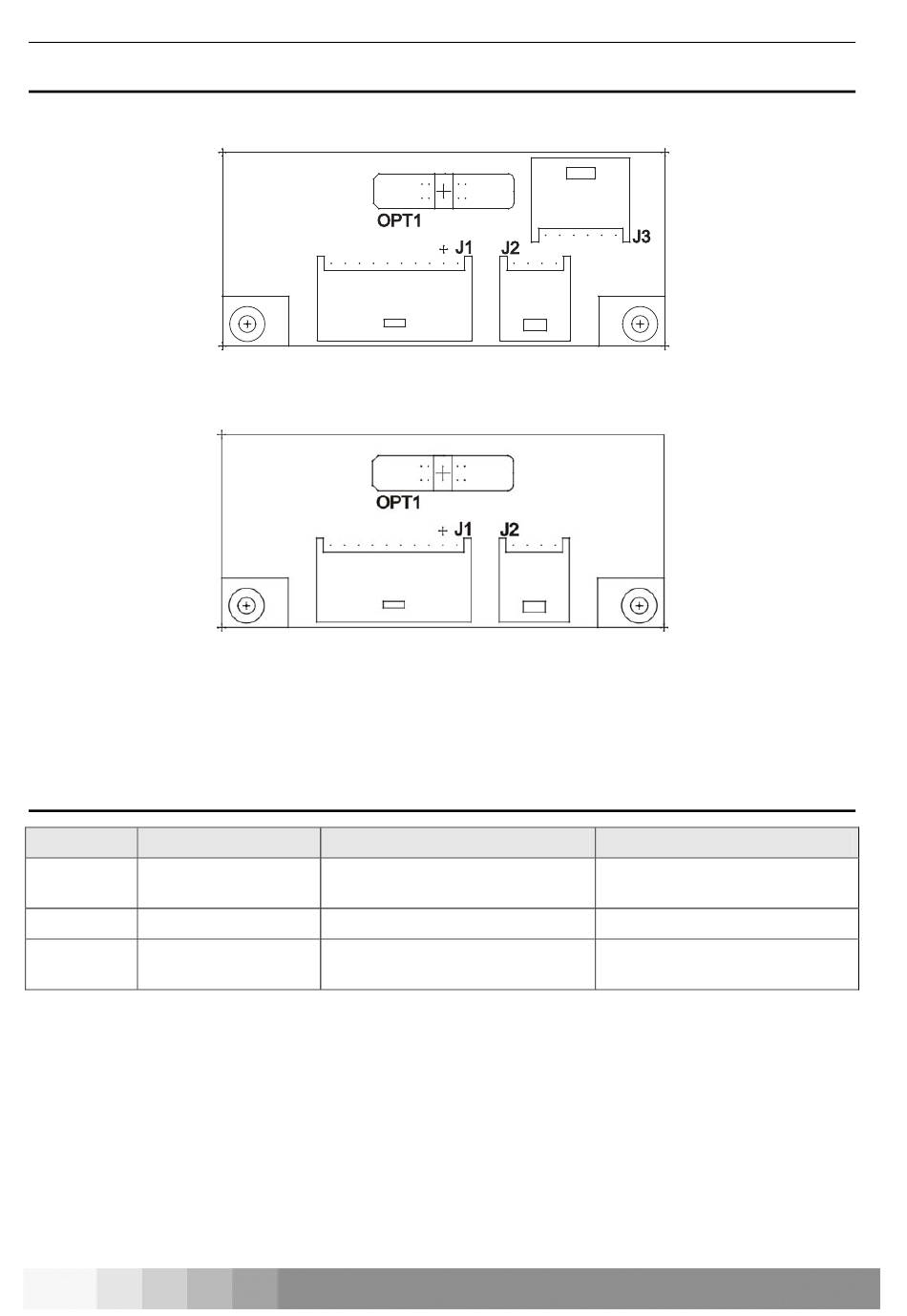

3.5 CBModule

The CBModule board is mounted on the sequential circuit.
The CBModule board houses the optic switch, whose signals are always conveyed on the connector J1.
From each CBModule, wiring leads to the CBMono board.

3.6 Connectors

Connectors
J1 input/output
J2
J3 input/output
Type Description
connection CBMono - CBModule
output to the stepper motor
to the stirring motor
CBModule_A
CBModule_C
COROB™ AUTOMATIC DISPENSERS
Notes
for CBModule_C, also to the stirring
motor
only for CBModule_A and
CBModule_B
