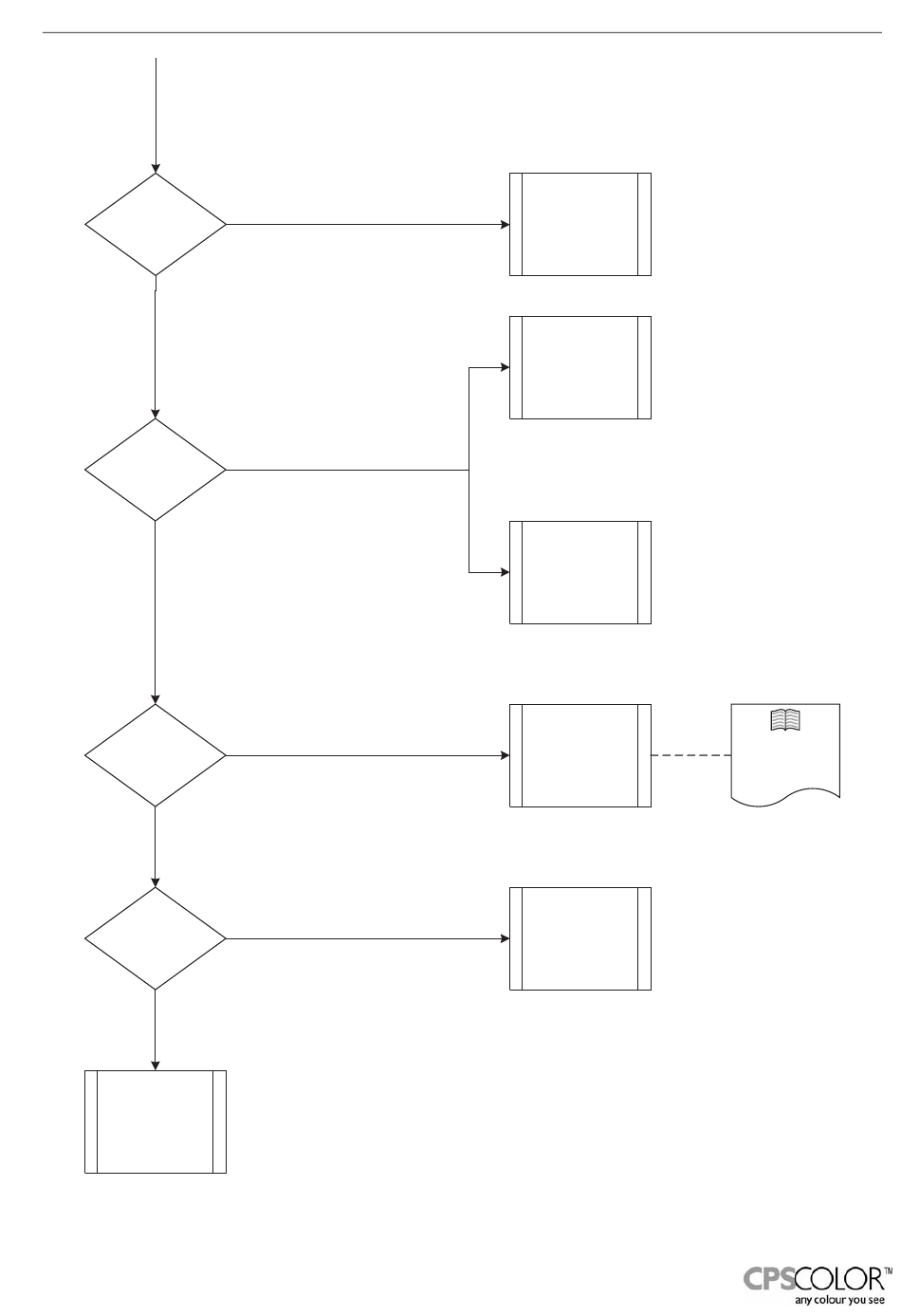

CPS COLOR COROB D200 Technical Manual page 75

YES
Was one SAPS
replaced?
NO
Is
the serial cable
connected?
YES
Does
PC serial
port work or is it
correctly
configured?
YES
Does the
CBMaster board
communication
port work?
YES
Replace the
extension cable of
the communication
port (from filtered
sockets to
CBMaster)
Version 1.0 - rev0 - May 2006
YES
NO
NO
NO
Check power
supply cable
connection
on the
SAPS board
Connect
serial cable /
replace it
Use another port
Check port
configuration with
CorobTECH
Replace CBMaster
8-5
CorobTECH
User's Manual
