3.7.3 Circuit address

The board includes 5 configuration jumpers which are used to make up the board address: JM1, JM2, JM3,
JM4, JM6.

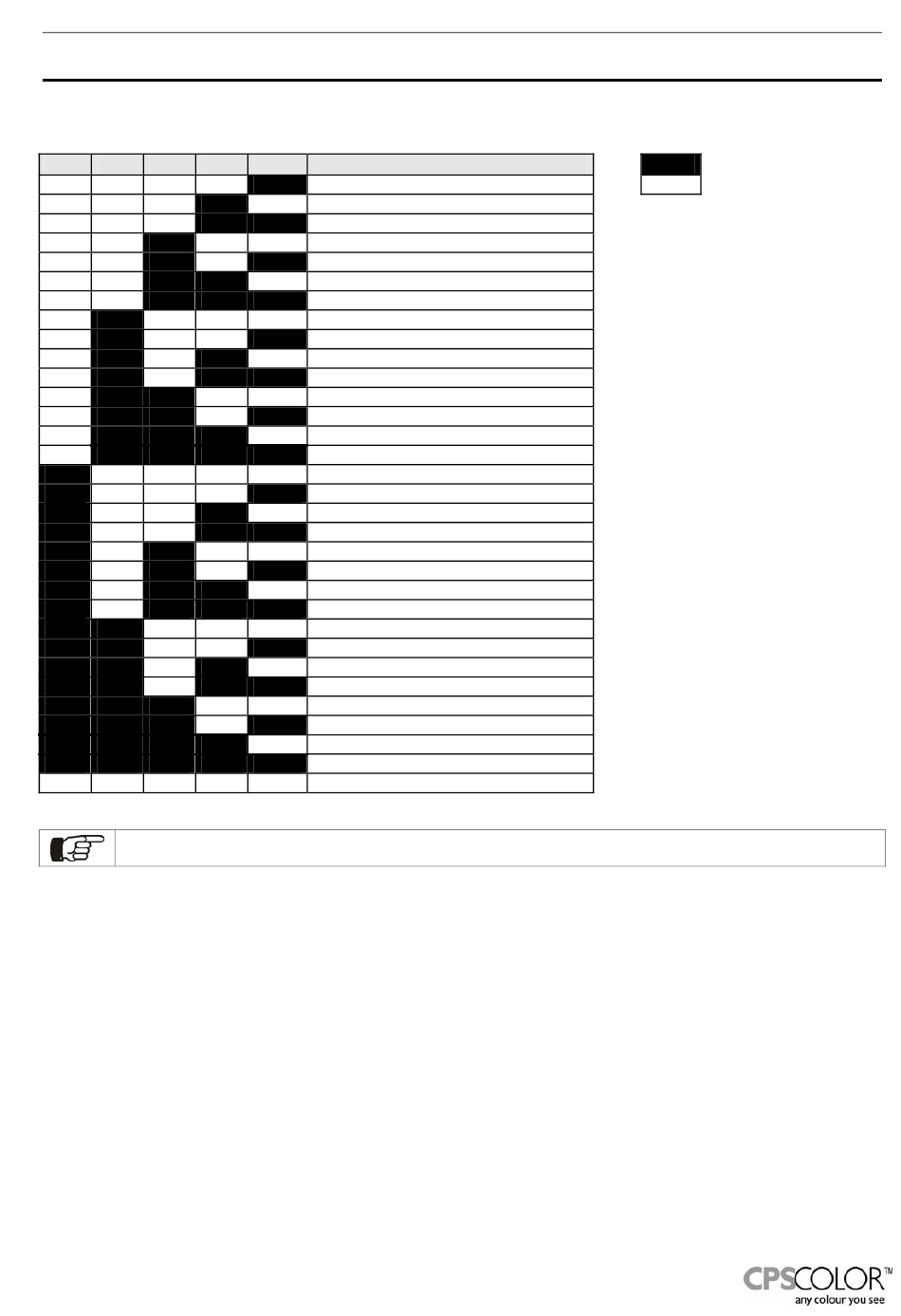

JM6 JM4 JM3 JM2
Note: if 1 is made to match the ON position and 0 the OFF position, you may 'read' the pumping group address in binary form.
Remember to set the correct circuit address in case of board replacement.
Version 1.0 - rev0 - May 2006
JM1 description
group number 1
group number 2
group number 3
group number 4
group number 5
group number 6
group number 7
group number 8
group number 9
group number 10
group number 11
group number 12
group number 13
group number 14
group number 15
group number 16
group number 17
group number 18
group number 19
group number 20
group number 21
group number 22
group number 23
group number 24
group number 25
group number 26
group number 27
group number 28
group number 29
group number 30
group number 31
group number 32
3-15
ON (1)
OFF (0)
