CPS COLOR COROB D200 Technical Manual page 88

M1
Stepper Motor
PHA
GR
GR/WH /PHA
RD/WH PHB
RD /PHB
COROB S.p.a. TITLE of SHEET:
Via dell'Agricoltura, 3
BANCO CABLING
41038 S. Felice s/P (MODENA)
ITALY
DWG no.:
BANCO.dsn
0033500
J2.5
1
GR
2
GR/WH
3
RD/WH
RD 4

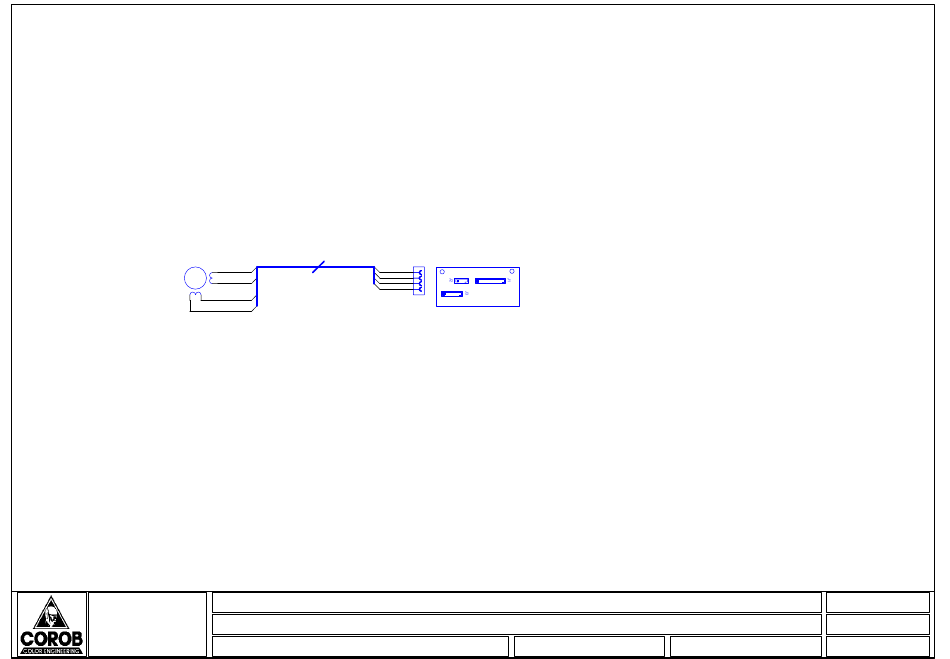

SAPS (Canister Stirring Pump Stepper) Connection for group 1 to 16 - Semplified Sequential Version
SH4
CBMODULE - COROB
Date: Tuesday, November 16, 1999 CAGE Code:
Diagram 4
Sheet no.: 4.C
of : ....
Benatti Fabrizio Revision : V 1.0
