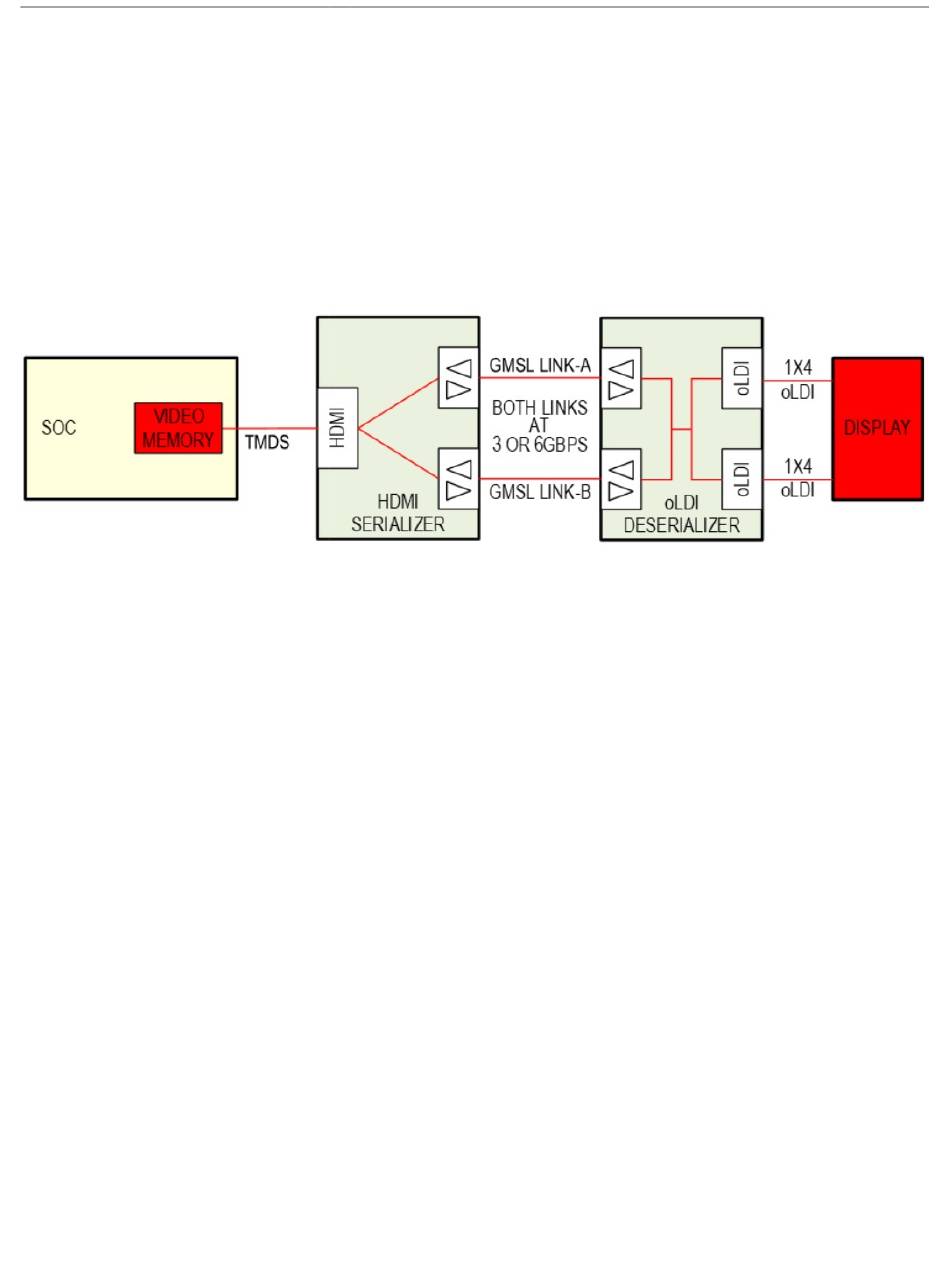

Use Case Example 2

This example has the following characteristics:
• One MAX96751 connected to one MAX96752 using GMSL Links A and B
• Initial I2C address of serializer is 0x80
• Initial I2C address of deserializers is 0x90
•
Link rate = 6 Gbps (on each PHY)
•
The serializer receives HDMI data on its HDMI input port
• The deserializer outputs dual OLDI data on OLDI ports A and B

Use Case Example 2 Script

#Single Video Stream, Dual GMSL2 Links with Both at Either 3Gbps or 6Gbps. OLDI Deserializer with Single or Dual
OLDI
#DUAL LINK, Dual OLDI
#SER 0x80
#DES 0x90
#DES
0x90,0x10,0x00
0x90,0x10,0x20
#SER
0x80,0x10,0x00
0x80,0x10,0x20
0x80,0x53,0x30
#Video Start
0x80,0x01,0xC8
#DES
0x90,0x1CE,0x5E
