MAX17625/MAX17626
Evaluation Kits
General Description
The MAX17625/MAX17626 evaluation kits (EV kits)
provide a proven design to evaluate the performance of
the MAX17625/MAX17626 converters. Each of these
devices operate over an input range from 2.7V to 5.5V
and deliver up to 700mA output current. The devices are
configured to demonstrate optimum performance and
component sizes in the EV kits.
The MAX17625 converter delivers up to 700mA at a
switching frequency of 2MHz. The converter is
configured for a 1.2V output over a 2.7V to 5.5V input
range.
The MAX17626 converter delivers up to 700mA at a
switching frequency of 4MHz. The converter is
configured for a 3.3V output over a 3.6V to 5.5V input
range.
The EV kits feature provisions for selecting the Mode of
operation (PWM/PFM), Enable input, and PGOOD
signal. The MAX17625/MAX17626 converter data sheet
provides a complete description of the parts that should
be read in conjunction with this data sheet prior to
operating the EV kits.

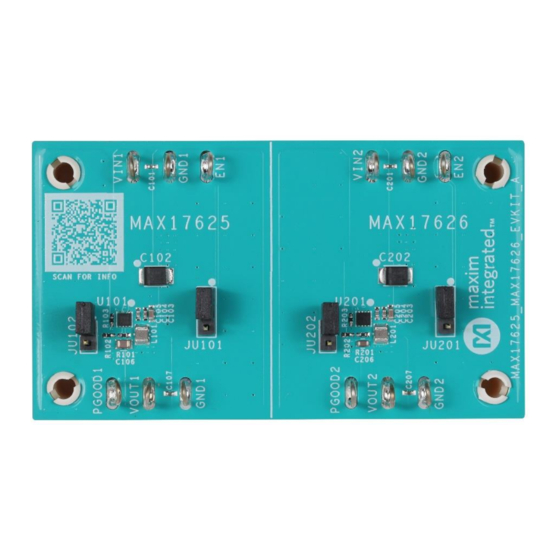

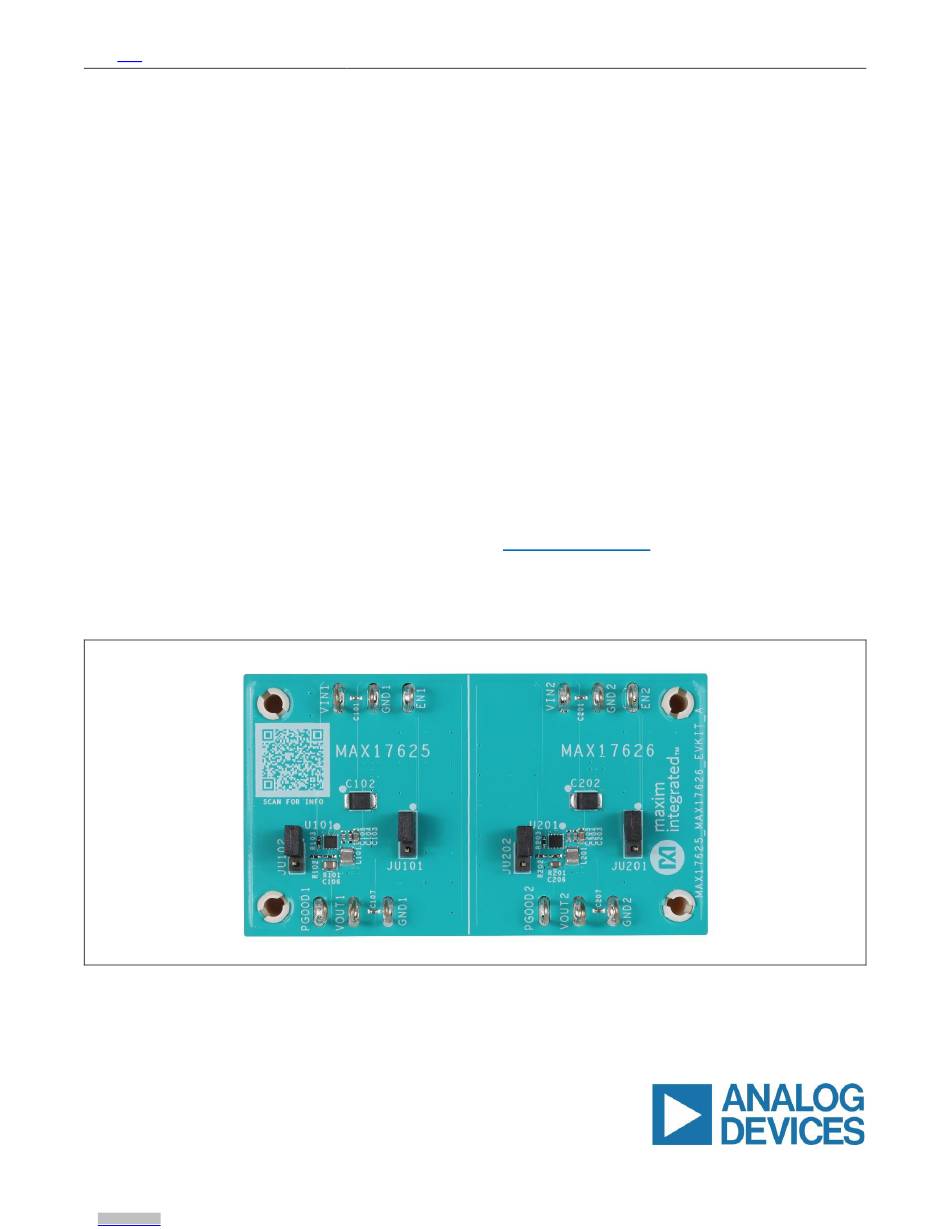

EV Kits Top View
319-100853; Rev 0; 12/21
Arrow.com.
Downloaded from
Evaluates: MAX17625/MAX17626
Converters in Application
Features
•
2.7V to 5.5V Input-Voltage Range
•
MAX17625 Offers High 90.6% Efficiency (V
V = 1.2V, I = 400mA)
OUT OUT
•
MAX17626 Offers High 94.5% Efficiency (V
V = 3.3V, I = 500mA)
OUT OUT
•
Up to 700mA Load Current
•
2MHz Fixed Switching Frequency for the MAX17625
•
4MHz Fixed Switching Frequency for the MAX17626
•
Selectable Pulse-Width Modulation (PWM) and
Pulse-Frequency Modulation (PFM) Modes of
Operation
•
Internal 1ms Soft-Start Time
•
Power-Good (PGOOD) Output with Pullup Resistor
to Respective Input Voltages
•
Low-Profile, Surface-Mount Components
•
Proven PCB Layout
•
Fully Assembled and Tested
Ordering Information at end of data sheet.
= 3.3V,
IN
= 5V,
IN
