General Description
The MAX98366 evaluation system (EV system) is a fully
assembled and tested system that evaluates the
MAX98366A/B/C/D mono Class-D audio amplifier with
ultrasound support. The EV system consists of a
MAX98366 Development Board (DEV board), an Audio
Interface Board III (AUDINT3), and a USB cable.
It is recommended that the DEV board be evaluated with
the AUDINT3 board, as an EV system. MAX98366A and
MAX98366C support the standard I
MAX98366B and MAX98366D support standard left-
justified mode. All MAX98366 variants support an 8-
channel TDM digital audio interface.
The AUDINT3 board provides a USB-to-PCM interface
and a 1.8V VDD supply needed to evaluate the DEV
board. The MAX98366 DEV board requires one additional
supply input, 3V to 15V (PVDD) when evaluating using the
AUDINT3 board. Figure 1
AUDINT3 board.
EV System Photo

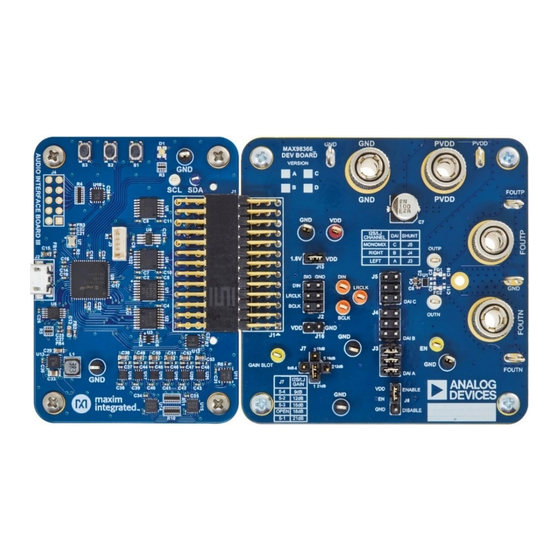

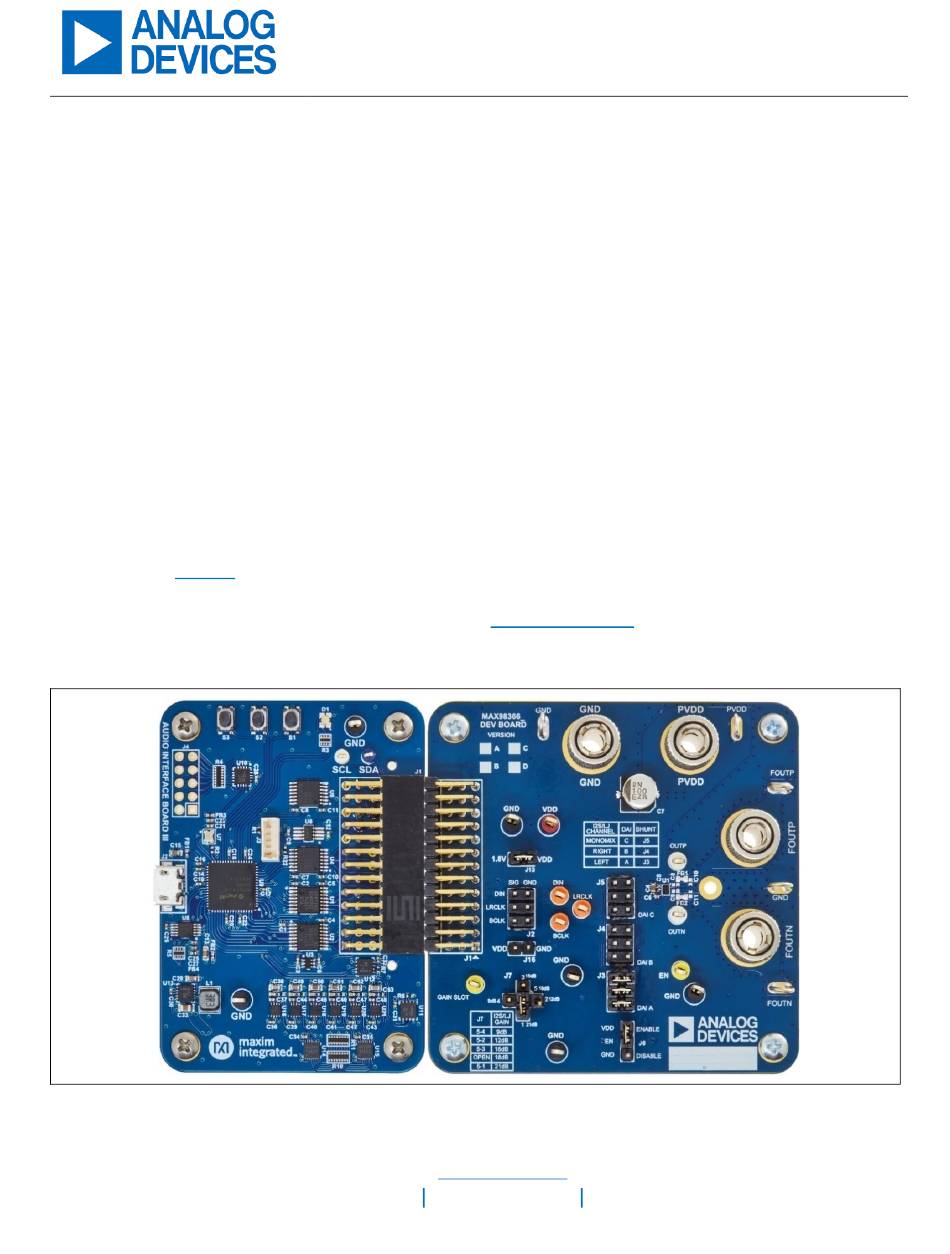

Figure 1. MAX98366 Evaluation System
319-101051; Rev 0; 3/24
O n e A n a l o g W a y , W i l m i n g t o n , M A 0 1 8 8 7 - 2 3 5 6 , U . S . A .
MAX98366 Evaluation System
Evaluates: MAX98366A/MAX98366B/MAX98366C/MAX98366D
2
S interface, and
details the DEV board and the
Evaluation Board User Guide
Features
•
Simple Plug-and-Play Design—No I
Programming Required
•
Wide Amplifier Supply Range (3V to 15V)
•
Wideband Filters for Sample Rates ≥ 50kHz, Enabling
Ultrasound Applications
•
Sample Rates of 8kHz to 192kHz
2
•
I S, Left-Justified, or TDM Input
•
Five Selectable Gains (9.5dB, 12.5dB, 15.5dB,
18.5dB, and 21.5dB)
•
Audio Channel Select (Left, Right, and Mono Mix)
•
Filter Less Operation
•
Low EMI
•
Complete Hardware System with Easy Setup;
No Tools or Special Software Required
EV System Contents
•
MAX98366 Development Board
•
Audio Interface Board III (AUDINT3)
•
Micro-USB Cable
