Output Programming

• Output ports are configurable as 1x4, 1x8, or 2x4 lanes. Refer to the
details related to this block.
• oLDI ports can be configured as 4-lane (for RGB888) or 3-lane (for RGB666) with the OLDI_4TH_LANE register bit.
• The oLDI output lanes can be inverted and/or swapped. The LANE_SEL_* registers select the output pin
mapping for the port and lane designated by the register name; the LANE_INV_* registers invert the polarity of
the port and lane designated by the register name.
• Vertical sync (VS) can be viewed on GPIO01. An optional single-cycle glitch filter is enabled with the VS_OUT_EN
register bit.

Color Lookup Table (LUT)

The LUT enables 1:1 translation of 8-bit RGB color input data to any 8-bit RGB color output values. The feature is
primarily intended for color filtering and gamma correction. The LUT consists of three discrete color channels that
accept 8-bit wide entry for each color (i.e., red, green, and blue) with 256-entry depth. Refer to the
Table (LUT) section for additional information and configuration details.

Spread-Spectrum Clocking

The oLDI output port can be programmed to have 0.5% center spread-spectrum clocking (SSC) with a 20kHz to
40kHz triangular modulation frequency. It is possible to program the spread-spectrum percentage up to 4% with
the config_spread_bit_ratio bitfield (register DPLL_3).
Note: oLDI SSC mode programming is independent of the GMSL high-speed clock SSC mode.
www.analog.com
CURRENT CYCLE
OG0 OR5 OR4
OB1 OB0 OG5
DE VS HS
XX OB7 OB6
EG0 ER5 ER4
EB1 EB0 EG5
DE VS HS
XX EB7 EB6

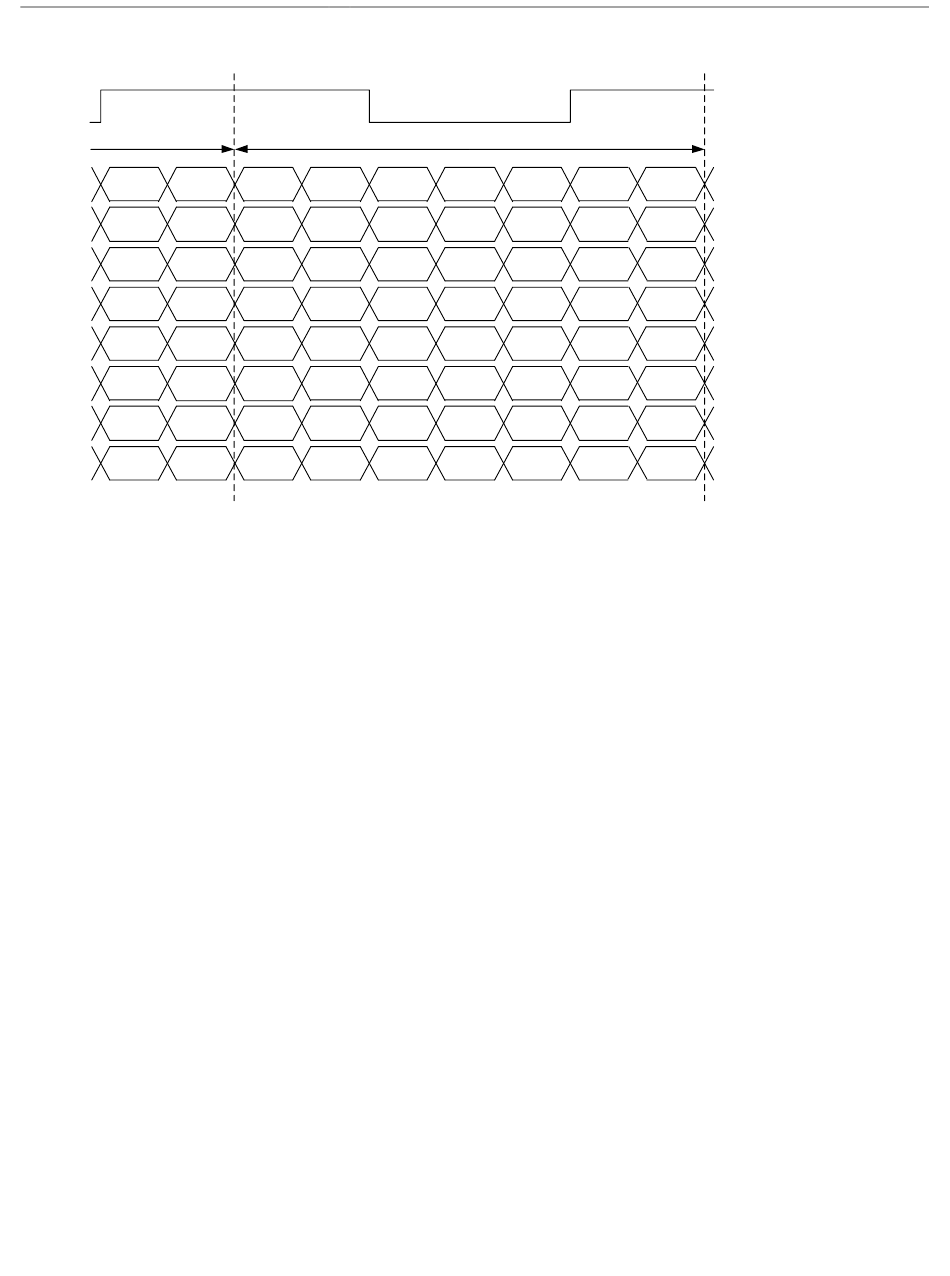

Figure 11. Dual oLDI Port Mapping (VESA/Format 2)
