MAX17553C Evaluation Kit
General Description
The MAX17553C evaluation kit (EV kit) is a fully
assembled and tested circuit board that demonstrates
the performance of the MAX17553C, a 4V to 60V, 50mA,
Ultra-Small, High Efficiency, Synchronous Step-Down
DC-DC converter in an 8-pin TDFN (2mm x 2mm)
package. The EV kit is designed to operate over a 14V
to 60V input and provides a 12V, 50mA output. The EV
kit is set up to turn ON at 20V(max) and turn OFF at
14V(max) using EN/UV and HYST pins. The step-down
converter is programmed to switch at a 400kHz
frequency and delivers a peak efficiency of 95% with
supplied components.
The EV kit is simple to use and easily configurable with
minimal external components.
features programmable input EN/UV and HYST
threshold, programmable frequency, and an open-drain
RESET
signal. The device offers built-in hiccup mode
protection for over-load and short circuit conditions, and
thermal shutdown. The EV kit is complaint with CISPR32
class B standard.

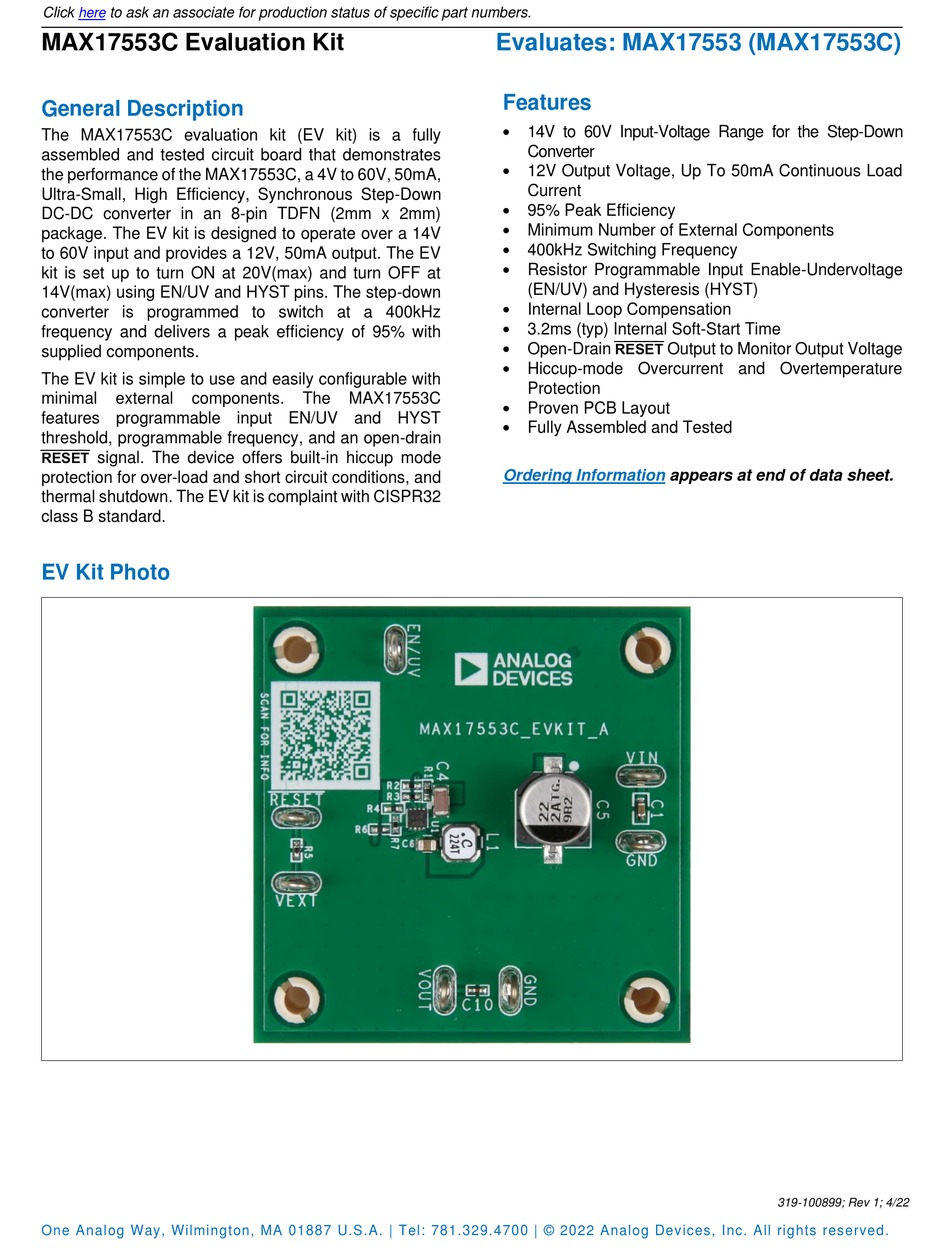

EV Kit Photo
One Analog Way, Wilmington, MA 01887 U.S.A. | Tel: 781.329.4700 | © 2022 Analog Devices, Inc. All rights reserved.
The MAX17553C
Evaluates: MAX17553 (MAX17553C)
Features
•
14V to 60V Input-Voltage Range for the Step-Down
Converter
•
12V Output Voltage, Up To 50mA Continuous Load
Current
•
95% Peak Efficiency
•
Minimum Number of External Components
•
400kHz Switching Frequency
•
Resistor Programmable Input Enable-Undervoltage
(EN/UV) and Hysteresis (HYST)
•
Internal Loop Compensation
•
3.2ms (typ) Internal Soft-Start Time
•
RESET
Open-Drain Output to Monitor Output Voltage
•
Hiccup-mode Overcurrent and Overtemperature
Protection
•
Proven PCB Layout
•
Fully Assembled and Tested
Ordering Information appears at end of data sheet.
319-100899; Rev 1; 4/22
