Complete Use Case Programming Examples

The following use case examples demonstrate how many of the features described throughout this document can
be used together to program a SerDes system. These examples may need to be manipulated or completely
changed for more specific use cases. The basic flow of programming and important steps is annotated to give a
broad picture of the requirements users can expect to get a system working with the MAX96751 serializer and
MAX96752 deserializer. The format of the programming examples throughout this section will follow the format
allowable by the GMSL GUI for .csv files, so that users may copy them for use immediately.

Use Case Example 1

This example has the following characteristics:
•
One MAX96751 connected to one MAX96752 using GMSL link A only
•
Initial I2C address of serializer is 0x80
• Initial I2C address of deserializer is 0x90
• Link rate = 6 Gbps
•
The serializer receives HDMI data on its HDMI input port
•
The deserializer outputs dual oLDI data on oLDI ports A and B

Use Case Example 1 Script

#Single Video Stream, Single GMSL2 Link at Either 3Gbps or 6Gbps, OLDI Deserializer with Single or Dual OLDI
Outputs
#PHY A, Dual OLDI
#SER 0x80
#DES 0x90
#Video Start
0x80,0x01,0xC8
#DES
0x90,0x1CE,0x5E
www.analog.com

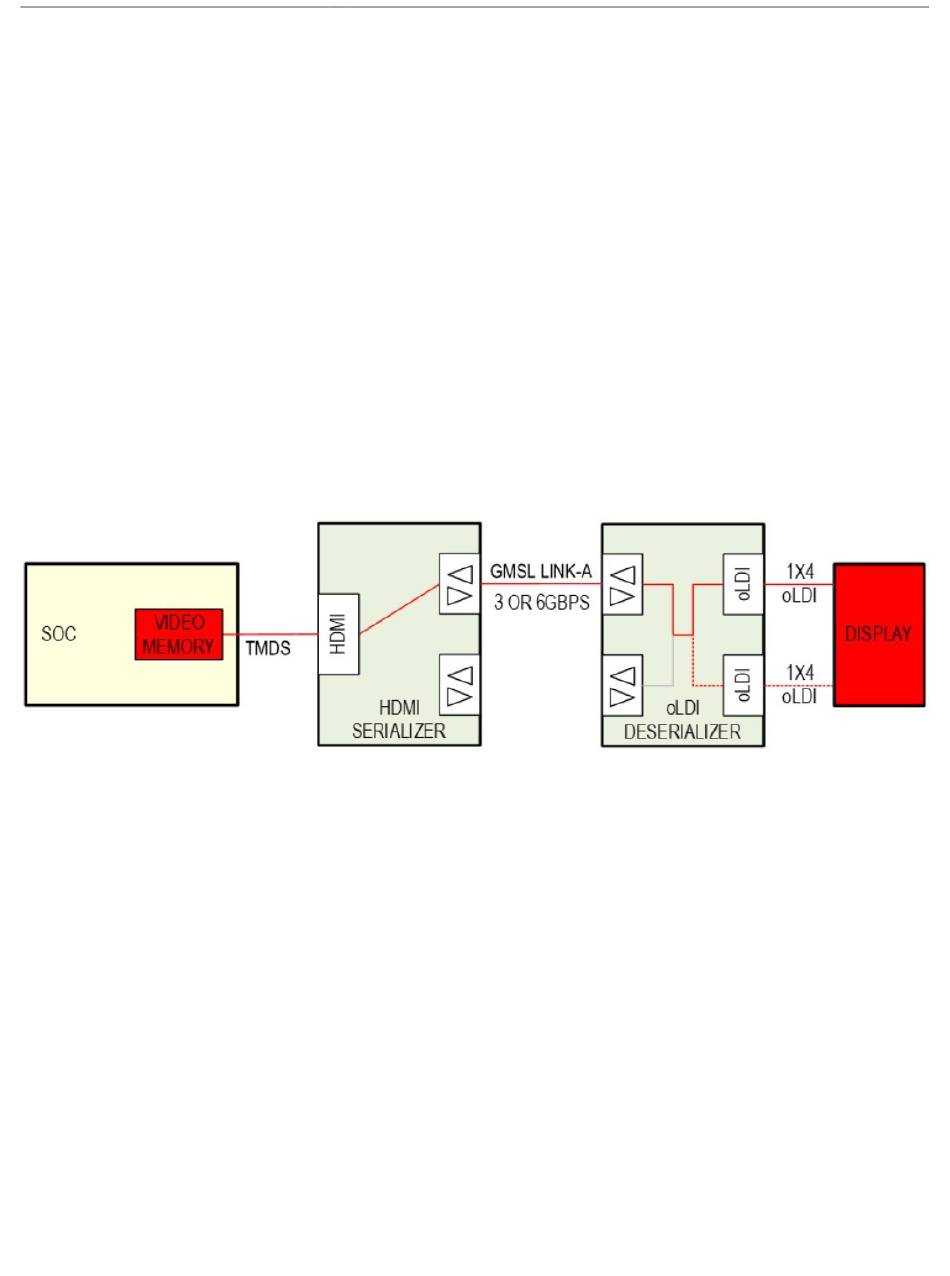

Figure 30. Use Case Example 1 Diagram
Analog Devices | 48
