0x90,0x160,0x0B #Enable SPI channel, set as main.
0x90,0x161,0x1D #default, sets SPI packet size and GMSL link scheduler priority.
0x90,0x162,0x00 #default, subordinate select is active low, SPI mode is 0.
0x90,0x163,0x00 #default, delay between assertion of subordinate select and clock start.
0x90,0x164,0x1E #SPI clock low time.
0x90,0x165,0x1E #SPI clock high time.
0x90,0x166,0x0C #Enable subordinate select 1 (SS1) and 2 (SS2), RO and BNE not enabled.
0x90,0x168,0x00 #SPI timeout delay.
*Note: If micro-controller or external SPI main is on the deserializer side, swap the Ser and Des register writes in the
script.

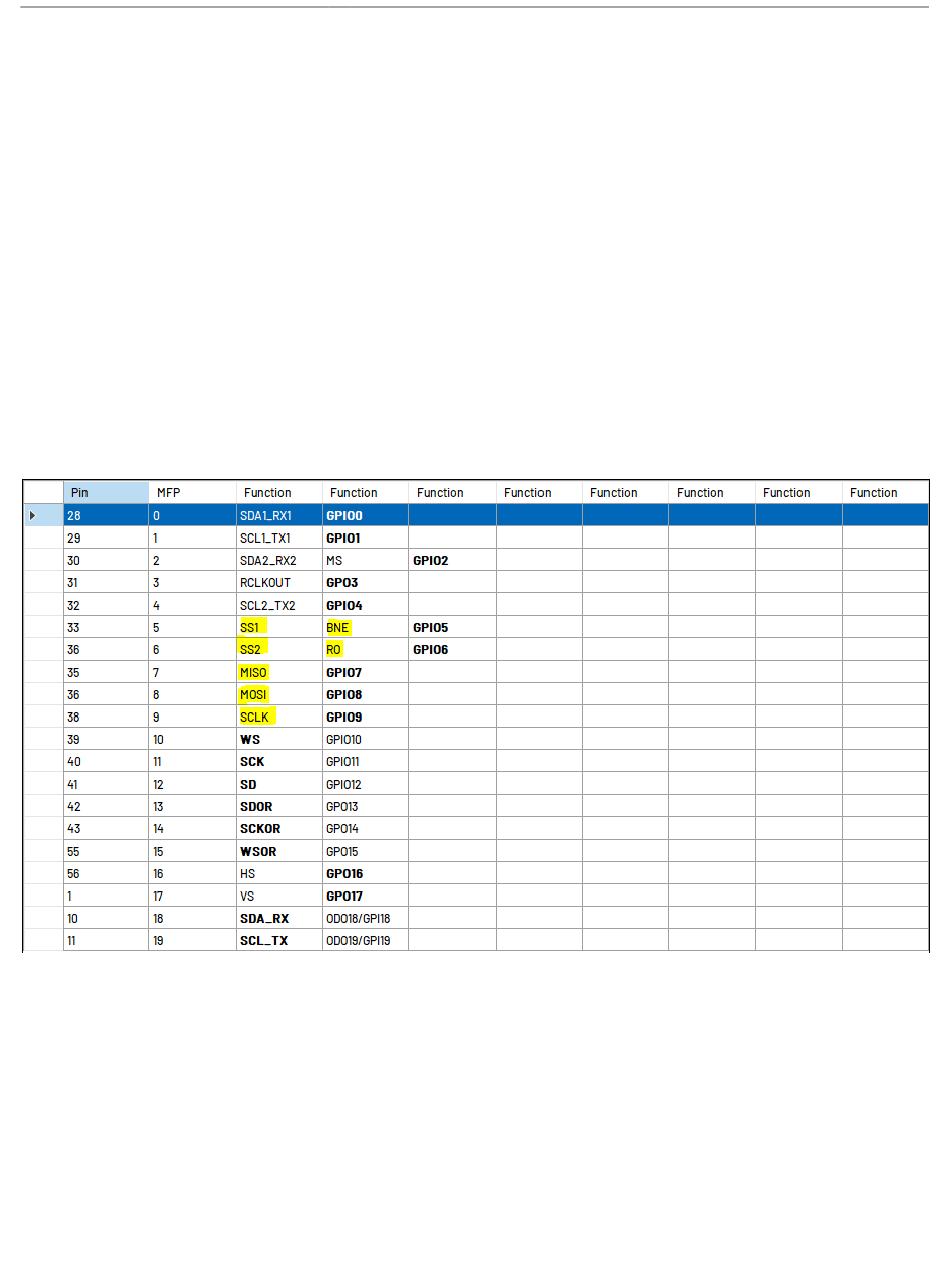

Figure 18 and Figure 19 show MFP pins being used for SPI after running the above script.
Figure 18. SPI MFP Pin Settings for MAX95751
