Evaluates: MAX98360A/MAX98360B/
MAX98360C/MAX98360D (FCQFN)
General Description
The MAX98360 evaluation systems (EV systems) are
fully assembled and tested systems that evaluate the
MAX98360A/B/C/D mono Class D audio amplifiers.
The EV systems consist of a MAX98360 development
board (DEV board), Maxim's Audio Interface Board III
(AUDINT3), and a USB cable.
It is recommended that the DEV board be evaluated with
the AUDINT3 board, as an EV system. The MAX98360A
and MAX98360C support the standard I
the MAX98360B and MAX98360D support standard left-
justified mode. All of the MAX98360 variants support an
8-channel TDM digital audio interface.
The AUDINT3 board provides the USB-to-PCM interface,
as well as the 1.8V V
DDIO
the DEV board. The MAX98360 DEV board requires one
additional supply input, 2.5V to 5.5V (V
ing using the AUDINT3 board.
board and the AUDINT3 board.
FOUTN
GND
FOUTP

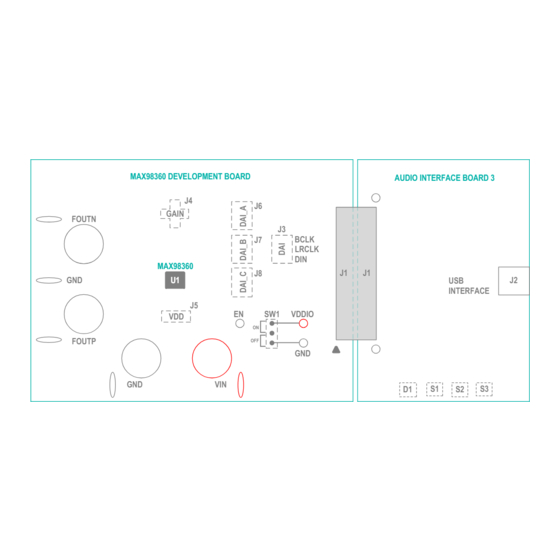

Figure 1. Simplified EV System Block Diagram
©
2023 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners.
One Analog Way, Wilmington, MA 01887 U.S.A.
Click
2
S interface, and
supply needed to evaluate
), when evaluat-
DD
Figure 1
details the DEV
MAX98360 DEVELOPMENT BOARD
J4
GAIN
MAX98360
U1
J5
EN
VDD
GND
VIN
|
Tel: 781.329.4700
here
to ask an associate for production status of specific part numbers.
MAX98360 Evaluation Systems
Features
● 2.5V to 5.5V Single-Supply Operation
2
● I
S, Left-Justified, or TDM Input
● Five Selectable Gains (-3dB, +3dB, +6dB, +9dB, and
+12dB)
● Audio Channel Select (Left, Right, and Mono Mix)
● Filterless Operation
● Low EMI
● Complete Hardware System with Easy Setup, No
Tools or Special Software Required
EV System Contents
● MAX98360 Development Board
● Audio Interface Board III
● Micro-USB Cable
Ordering Information
J6
J3
J7
BCLK
LRCLK
DIN
J1
J1
J8
SW1
VDDIO
ON
OFF
GND
|
© 2023 Analog Devices, Inc. All rights reserved.
appears at end of data sheet.
AUDIO INTERFACE BOARD 3
USB
INTERFACE
S1
S3
D1
S2
319-100630; Rev 1; 11/23
