Device Error Flags

MAX96752 ERRB pin (active low) is available on pin 14 and is enabled by default. In addition, register bitfield ERROR
(register 0x13 bit 2) goes HIGH when device has an error.
Table 25. MAX96752 Error Flags Table
Error Flag
DEC_ERR_FLAG_A
DEC_ERR_FLAG_B
IDLE_ERR_FLAG
REM_ERR_FLAG
WM_ERR_FLAG
PKT_CNT_FLAG
RT_CNT_FLAG
MAX_RT_FLAG
VID_PXL_CRC_ERR_FLAG
APRBS_ERR_FLAG
VPRBS_ERR_FLAG
LCRC_ERR_FLAG
VDDBAD_INT_FLAG
VDDCMP_INT_FLAG
www.analog.com
ERRB
(ON MFP8)

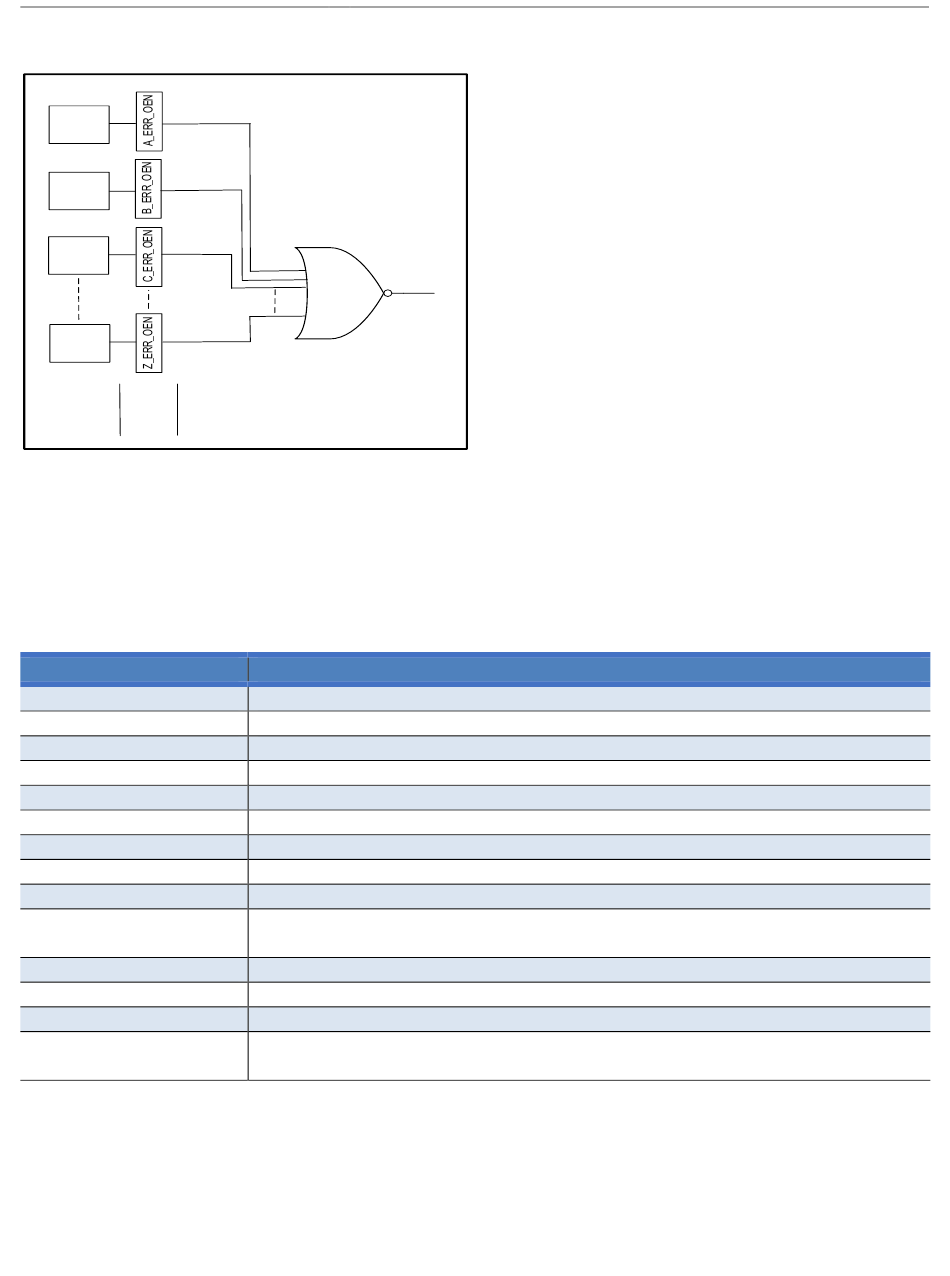

Figure 29. ERRB Reporting Flow
Errors detected in GMSL packet on Link A
Errors detected in GMSL packet on Link B
Idle-Word Error Flag on Link A and B
Received remote side error status
Watermark Error Flag
Packet Count Error Flag on Link A
ARQ Retransmission Event Flag for Link A
ARQ Maximum Retransmission Event Flag for Link A and B
Flag is asserted when video pixel CRC error count is greater than 0
Flag is asserted when the Audio PRBS checker detects at least one error
(APRBS_ERR > 0) while the Audio PRBS test is running
Flag is asserted when video PRBS error is greater than 0
Flag is asserted when video line CRC error is detected
V supply fault flag
DD
Flag is asserted when the internal voltage comparator detects that selected internal
V node is below a threshold.
DD
Table 25 lists all of the error flags in this device.
Error Description
(VPRBS_ERR > 0)
