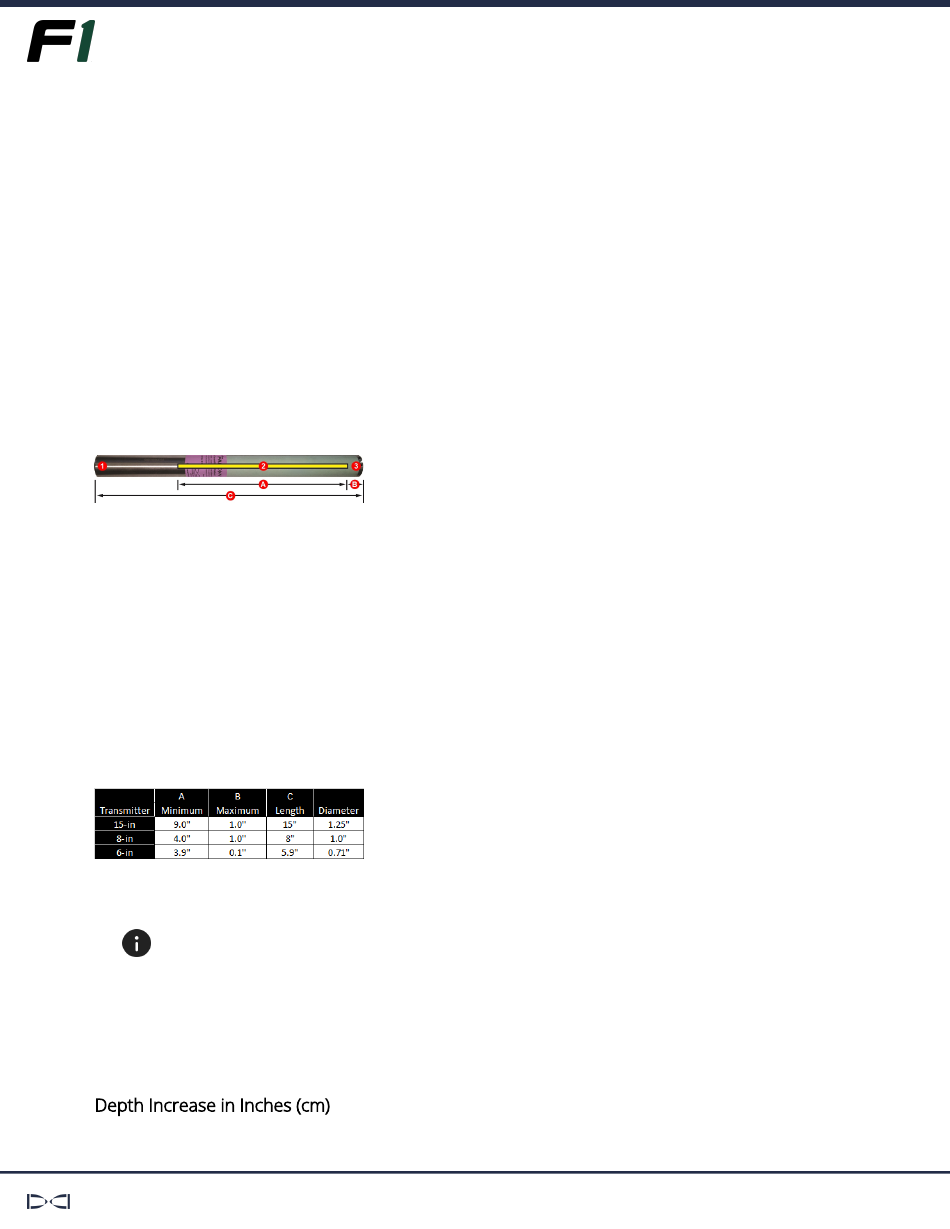

TRANSMITTER DRILL HOUSING REQUIREMENTS
For maximum transmitter range and battery life, the slots in the drill head
must meet minimum size requirements and be correctly positioned. DCI's
transmitters require a minimum of three slots equally spaced around the
circumference of the drill head. DCI transmitters fit standard housings but
may require a battery cap adapter in some cases.
Measure slot lengths on the inside of the drill head; slots must be at least
1/16th inch (1.6mm) wide.
1. Battery cap
2. Slot position
3. Front end cap
A. Slot length
B. Slot position
C. Transmitter length
While a Falcon transmitter is compatible with older housing slot
dimensions, optimal performance requires the A and B
measurements shown above.
6 FT (1.8 M) ROD DEPTH CHANGE BASED ON PITCH
Depth Increase in Inches (cm)
DIGITAL CONTROL, INC
DIGITRAK FALCON F1 SINGLEBAND
USER MANUAL
DCI DigiGuide
05.18.2024
71
