If you go past 35 ft (10.7 m) do not rely on the depth and
up/down steering information. Instead, monitor pitch data.

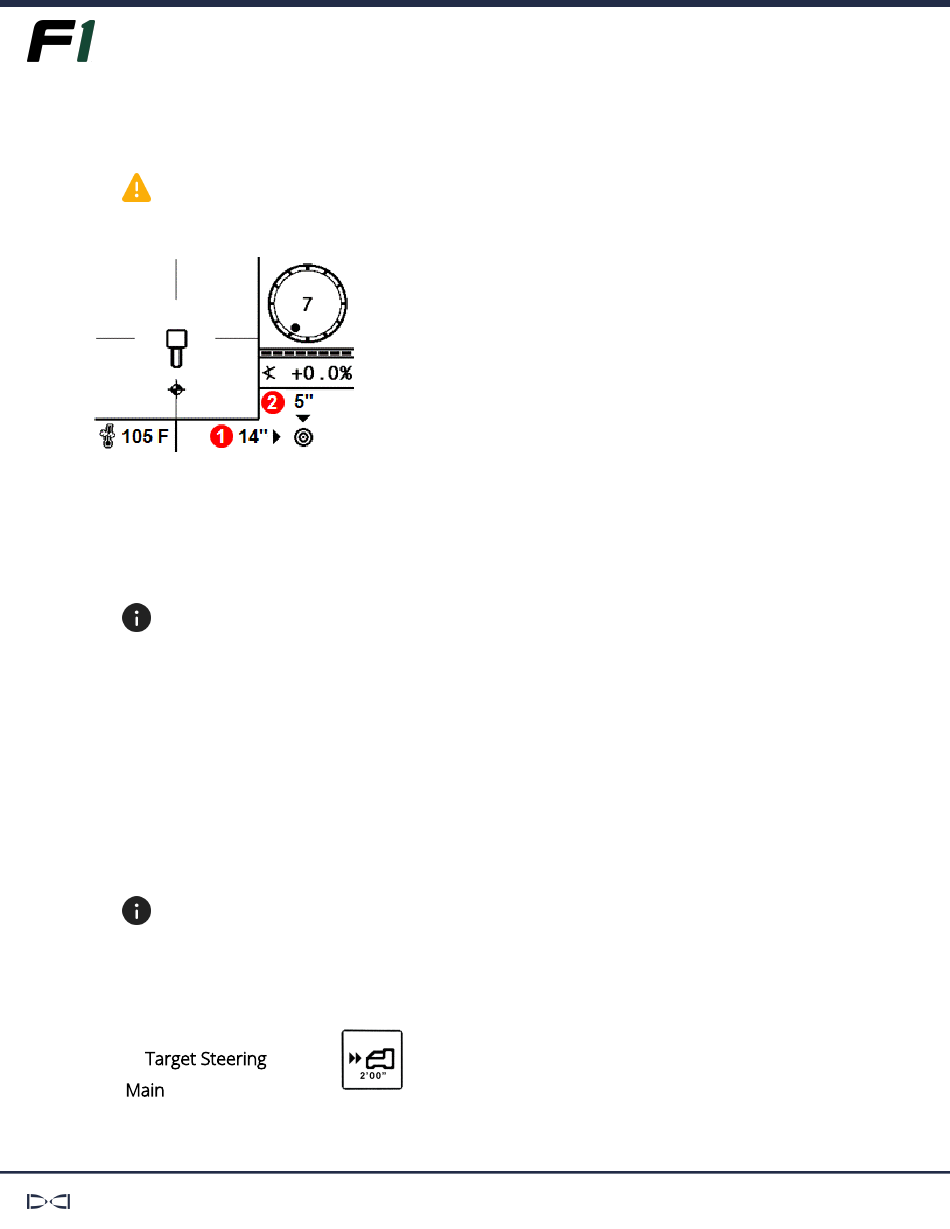

1. Horizontal distance from transmitter to locator
2. Current transmitter depth below the plane of the locator
At this point, the drill rig operator uses the remote display to drill
to the target.
STEP 5 OF 5
When the horizontal distance is almost the same as the current depth, move
the locator farther out to continue Target Steering.
Depth and distance are accurate until the Locate Line (LL)
passes the locator. Once the FLP reaches the locator, or the
distance is almost the same as the depth, the left/right steering
indicators could be wrong.
To turn off Target Steering,
select Target Steering from
the Main menu.
DIGITAL CONTROL, INC
DIGITRAK FALCON F1 SINGLEBAND
USER MANUAL
DCI DigiGuide
05.18.2024
52
