SHARE PICTURES FUNCTION

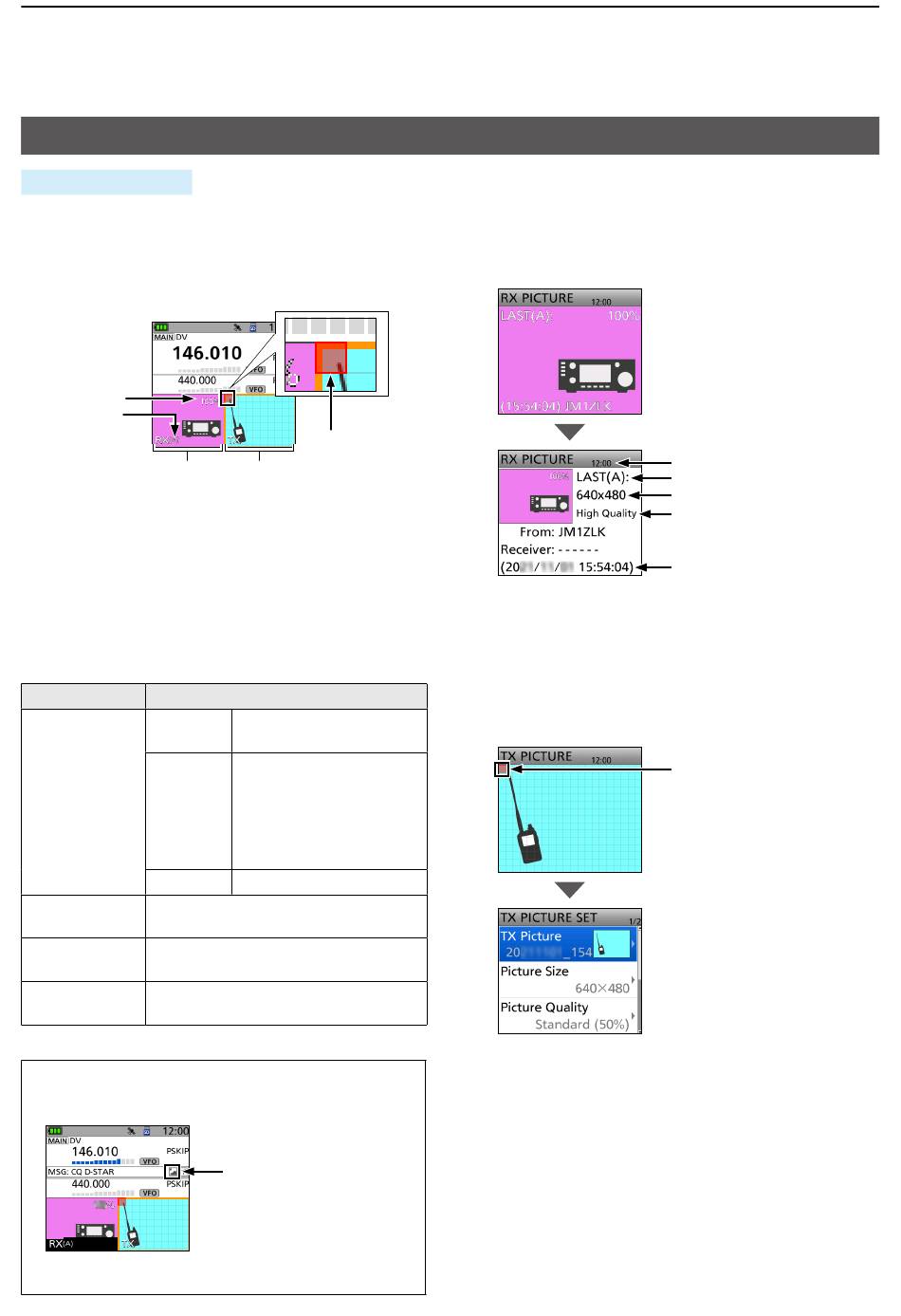

Using the Picture screen

[MENU] > PICTURE
1� Push [MENU]�
2� Select "PICTURE�"
• The Picture screen is displayed�
L To close the Picture screen, push [QUICK], and then
select "<<Exit Picture Screen>>�"
Percentage of
picture data
received
Received band
RX Picture zone*
Select to display the
RX PICTURE screen�
* When signals that contain picture data are received on the
MAIN and SUB bands at the same time, both pictures are
saved on a microSD card, but a picture is displayed on
only the MAIN band�
In the Quick Menu window, you can select the
following options�
Item
OFF
Picture TX
Single TX
Repeat TX The picture is repeatedly sent�
Sends the picture using the DV Fast
<<TX All>>
Data function�
Moves the TX block marker back to the
<<Back To 1st>>
1st block�
<< Exit Picture
Closes the Picture screen�
Screen>>
When a received signal contains picture data
When the received signal contains picture data, the
RX Picture icon is displayed�
L You can turn OFF the RX Picture icon�
([MENU] > SET > Display > RX Picture Indicator)
TX block marker
TX Picture zone
Select to display the
TX PICTURE screen�
Action
Turns OFF the Share
Pictures function�
Turns ON the Share
Pictures function�
L The picture is sent while
transmitting� After the
sending is completed, this
function is turned OFF�
RX Picture icon
The RX PICTURE screen
z Push [ENT] to display the RX PICTURE detail
screen�
z Push D-pad() to display the RX Picture history�
(p� 14-7)
The TX PICTURE screen
z Push [ENT] to display the TX PICTURE SET
screen�
z Push D-pad() to display the TX Picture history�
(p� 14-7)
14-3
Current time
History number
Picture Size
Picture Quality
Received time
TX block marker
