Chapter 3: System Setup
3.
Push the module down until the clips on both sides of the socket lock
into position.
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.

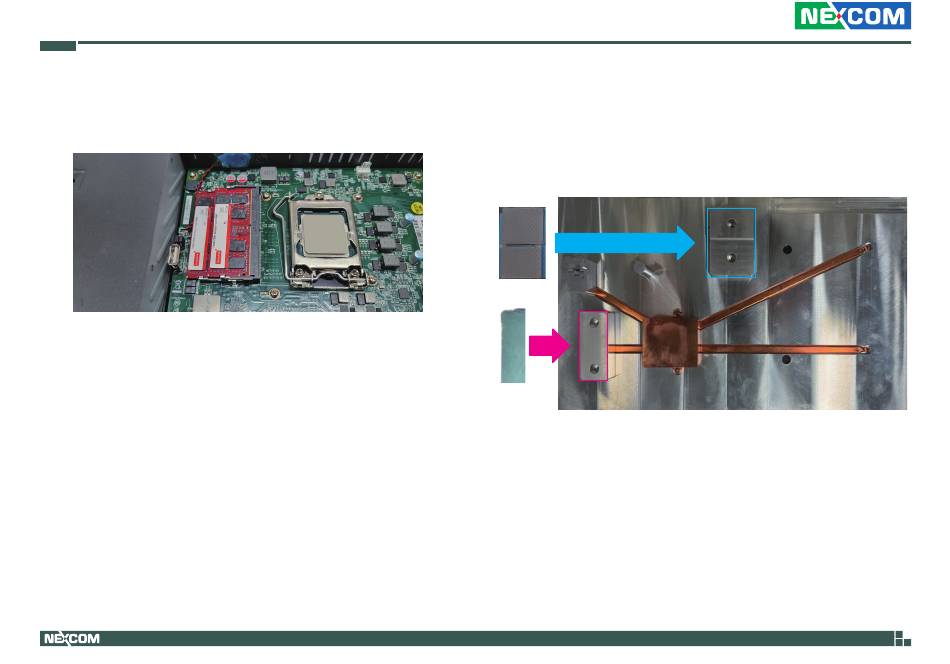

4.
Attach the thermal pad (refer to the red square below) provided in the
accessory box for the memory module on the top cover, ensuring it is
evenly and securely attached, and remove the protective film before
use. The blue square marks the area where the thermal pad for the
mini-PCIe/M.2 module should be attached.
75
IPPC XX11-C11 Series User Manual
