Chapter 2: Jumpers and Connectors

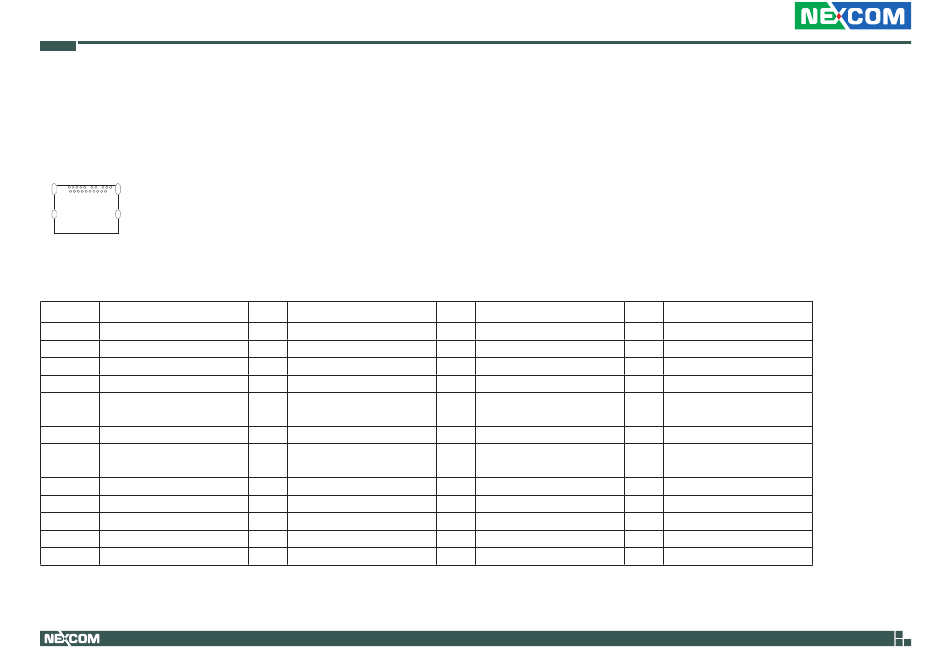

DP++ Port Connector

Connector type: 20P 90D Female DIP 16.4x12.6x6.08mm
Connector location: J2
1
19
2
20
Pin Definition
1 DPTX0P
2 GND
3 DPTX0N
4 DPTX1P
5 GND
6 DPTX1N
7 DPTX2P
8 GND
9 DPTX2N
10 DPTX3P
MH1 GND
MH2 GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Type Description
I/O Lane 0 (positive)
Ground
I/O Lane 0 (negative)
I/O Lane 1 (positive)
Ground
I/O Lane 1 (negative)
I/O Lane 2 (positive)
Ground
I/O Lane 2 (negative)
I/O Lane 3 (positive)
CHASIS GND
CHASIS GND
Pin Definition
11 GND
12 DPTX3N
13 CFG1
14 CFG2
15 DPAUXPCLK
16 GND
17 DPAUXNDAT
18 HPD
19 GND
20 VCC3DP
MH3 GND
MH4 GND
47
Type Description
Ground
I/O Lane 3 (negative)
I/O CONFIG1(H:AUX L:DDC)
I/O CONFIG2
Auxiliary channel
I/O
(positive)/DDCCLK
Ground
Auxiliary channel
I/O
(negative)/DDCDAT
O Hot plug detect
Return for power
O Power for connector
CHASIS GND
CHASIS GND
