Chapter 2: Jumpers and Connectors

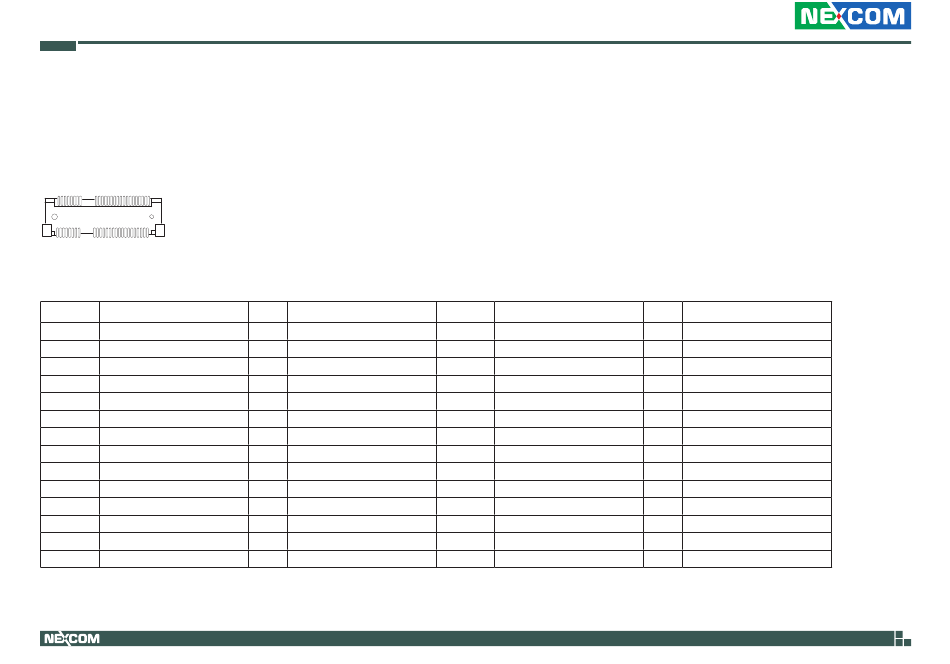

Mini PCIE Connector

Connector type: H: 9.9mm 90D 10u SMD
Connector location: CN6
2 52
1 51
Pin Definition
1 S_WAKE#
3 NC
5 NC
7 SRCCLKREQ2N
9 USB11N
11 S_CLKOUT_PCIE_N2
13 S_CLKOUT_PCIE_P2
15 GND
17 NC
19 NC
21 GND
23 PCIE_mSATA_RXP
25 PCIE_mSATA_RXN
27 GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Type Description
O WAKE#
NC
NC
BI CLKREQ#
BI CHASIS_ GND
BI REFCLK-
BI REFCLK+
CHASIS_ GND
NC
NC
CHASIS_ GND
BI PERN0/SATARXP
BI PERP0/SATARXN
CHASIS_ GND
Pin Definition
2 3VSB
4 GND
6 VCC1V5
8 UIM_PWR
10 UIM_DATA
12 UIM_CLK
14 UIM_RESET
16 UIM_VPP
18 GND
20 3.3V
22 PLTRST#
24 3VSB
26 GND
28 VCC1V5
31
Type Description
O 3.3V
CHASIS_ GND
O 1.5V
O UIM-PWR
O UIM-DATA
O UIM-CLK
O UIM-RESET
O UIM-VPP
CHASIS_ GND
O W_DISABLE#
O PERST#
O 3.3V
CHASIS_ GND
O 1.5V
Continued on the next page
