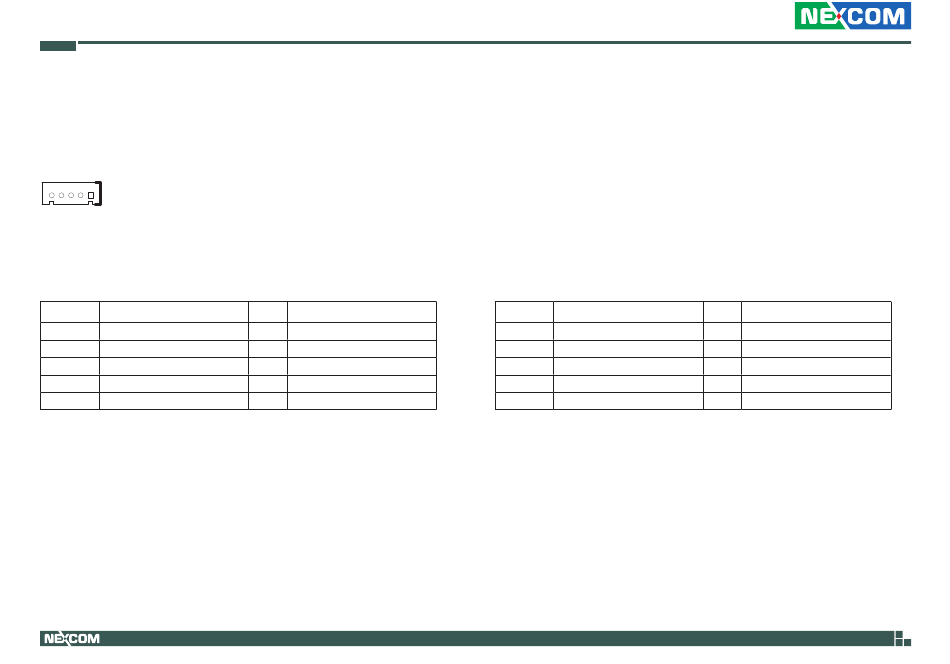

Chapter 2: Jumpers and Connectors
Resistance Touch Connector
Connector type: 5P 180D Male DIP 15x5.7x7mm
Connector location: J1
5
1
5-Wire
Pin
Definition
1
TOUCH_YD
2
TOUCH_XR
3
SENSE
4
TOUCH_YU
5
TOUCH_XL
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Type
Description
O
UR(H)
O
LR(X)
O
SENSE(S)
O
UL(Y)
O
LL(L)
4-Wire
Pin
Definition
1
TOUCH_YD
2
TOUCH_XR
3
SENSE
4
TOUCH_YU
5
TOUCH_XL
59
Type
Description
O
BOTTOM
O
RIGHT
O
N/A
O
TOP
O
LEFT
IPPC XX11-C11 Series User Manual
