Chapter 2: Jumpers and Connectors

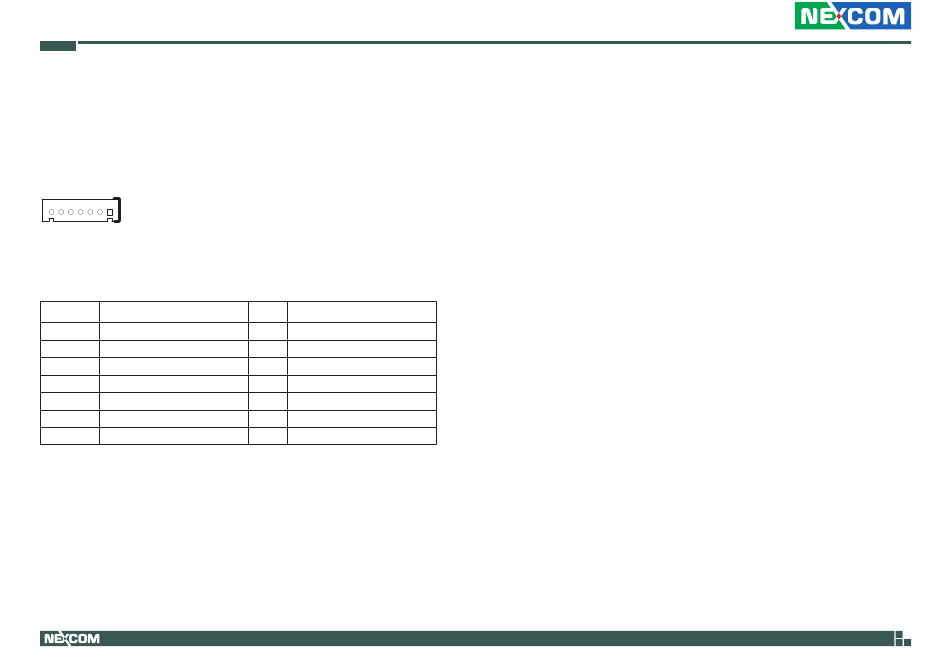

LVDS Inverter Connector
Connector type: 7P 2.54mm 20x5.7x7mm 180D Wafer DIP
Connector location: J5
7
1
Pin
Definition
1
VCC5
2
V_INV
3
V_INV
4
BKLTCTRL
5
GND
6
GND
7
BKLTEN
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Type
Description
O
5V
O
12V
O
12V
O
Backlight Control
Digital GND
Digital GND
O
Backlight Enable
61
IPPC XX11-C11 Series User Manual
