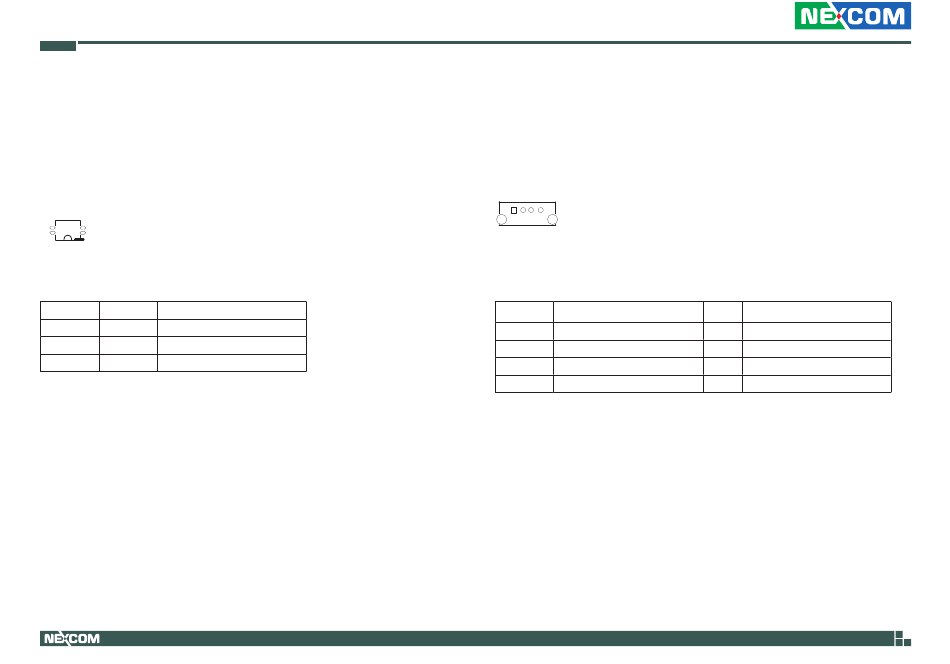

Chapter 2: Jumpers and Connectors
Jumper
AT/ATX Select Switch
Connector type: DC24V 25mA PIT:1.27mm SMD
Connector location: SW2
3
2
4
1
Pin 1-4
Pin 2-3
Mode
ON
ON
AT (PWR BT Available)
ON
Off
AT (PWR BT Available)
Off
ON
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
ATX
Internal I/O Pin Definitions
USB2.0 Port Connector
Connector type: 4P 180D Female DIP 14.4x7x15mm
Connector location: CN1
1
4
Pin
Definition
1
+5V
2
USB2_N3
3
USB2_P3
4
GND
25
Type
Description
O
USB Port3 5V Power
I/O
USB2 Port3 DN signal
I/O
USB2 Port3 DP signal
Digital GND
IPPC XX11-C11 Series User Manual
