Chapter 2: Jumpers and Connectors

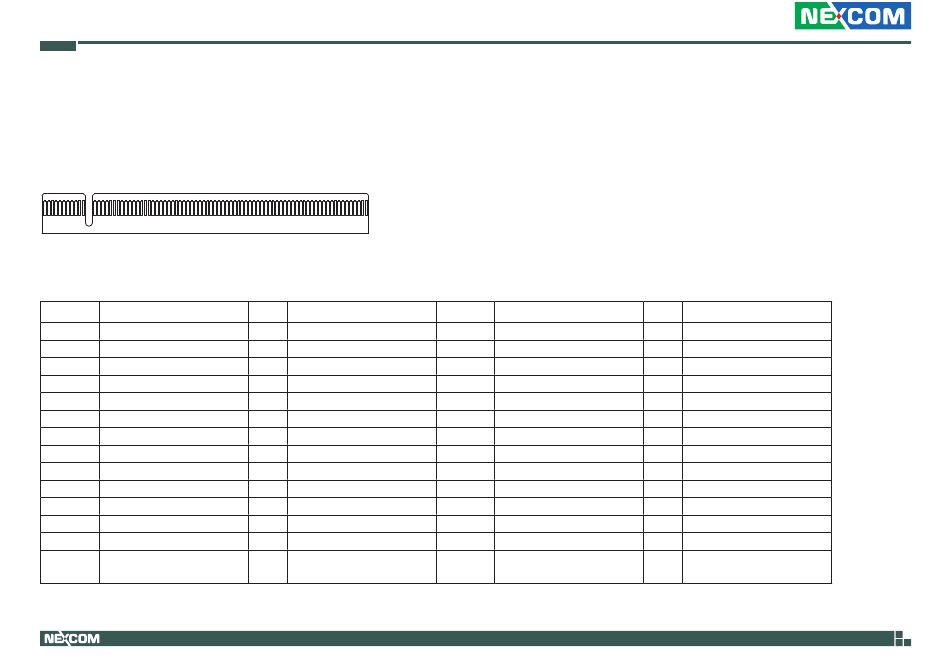

PCIE x16 Gold Finger

Connector type: 164P PCI-E x16 non-Standard Pinout
Connector location: GFM1
A1 A11 A12
Pin Definition
A1 5VSB
A2 5VSB
A3 VCC12
A4 VCC12
A5 VCC12
A6 VCC12
A7 VCC12
A8 VCC12
A9 VCC12
A10 GND
A11 PERSR#
A12 GND
A13 NA
A14 NA
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
A82
Type Description
O 5V
O 5V
O 12V
O 12V
O 12V
O 12V
O 12V
O 12V
O 12V
Digital GND
I PCI-Express Reset signal
Digital GND
NA
NA
Pin Definition
B1 VCC5
B2 VCC5
B3 VCC5
B4 VCC5
B5 VCC5
B6 GND
B7 SMBCLK
B8 SMBDATA
B9 GND
B10 GND
B11 Wake
B12 NA
B13 GND
B14 SOP7
33
Type Description
O 5V
O 5V
O 5V
O 5V
O 5V
Digital GND
O SMBUS CLOCK
BI SMBUS DATA
+TRST#
Digital GND
O Link Reactivation
NA
Digital GND
Transmitter Lane 7,
O
Differential pair+
Continued on the next page
