IPC960/IPC962/IPC964-525 Series User's Manual
2.2
Procedure of Installation
This chapter will guide you on installing a processor.
Step 1
Turn off the system.
Step 2
Disconnect the power connector.
Step 3

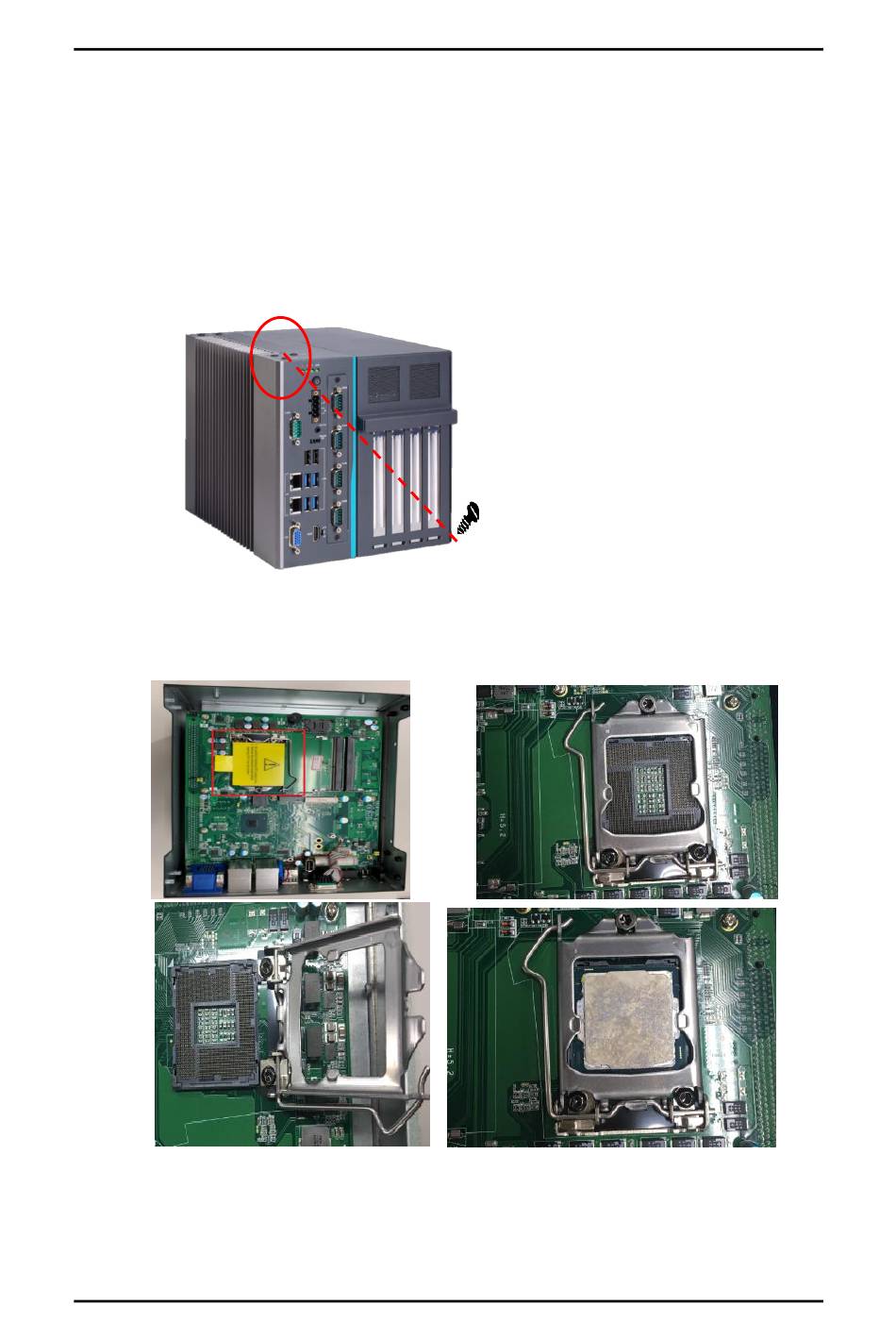

Loosen four screws to remove the heatsink cover from the chassis.
Step 4
After opening the heatsink cover, you can locate the CPU socket as marked. Align
pins of the CPU with the pin holes of the socket. Beware of the CPU's orientation
when you align the arrow mark on the CPU with the arrow key on the socket.
Remove the Mylar before you install the CPU into the socket.
46
Hardware Installation
