eBOX671B Series user's Manual
⚫ Storage
◼ 2 x 2.5" SATA HDD/SSD (up to 15 mm height; RAID 0,1 supported)
◼ 1 x NVMe by M.2 Key M 2280
◼ 1 x mSATA (enable in BIOS setting)
⚫ Flexible I/O Window
◼ Default : 2 x DB9 half cut bracket
⚫ Indicator
◼ 1 x Green LED for system power
◼ 1 x Orange LED for HDD active
◼ 4 x Programmable Green LED
⚫ Switch
◼
1 x ATX PWR switch
◼ 1 x Remote PWR switch
◼ 1 x Reset switch
⚫ Antenna & SIM
◼
5 x SMA type connector openings for antenna
◼ 1 x front access SIM slot (for M.2 Key B)
⚫ TPM 2.0
◼ 1 x ST33HTPH2E32AHA6

1.2.3 System Specifications

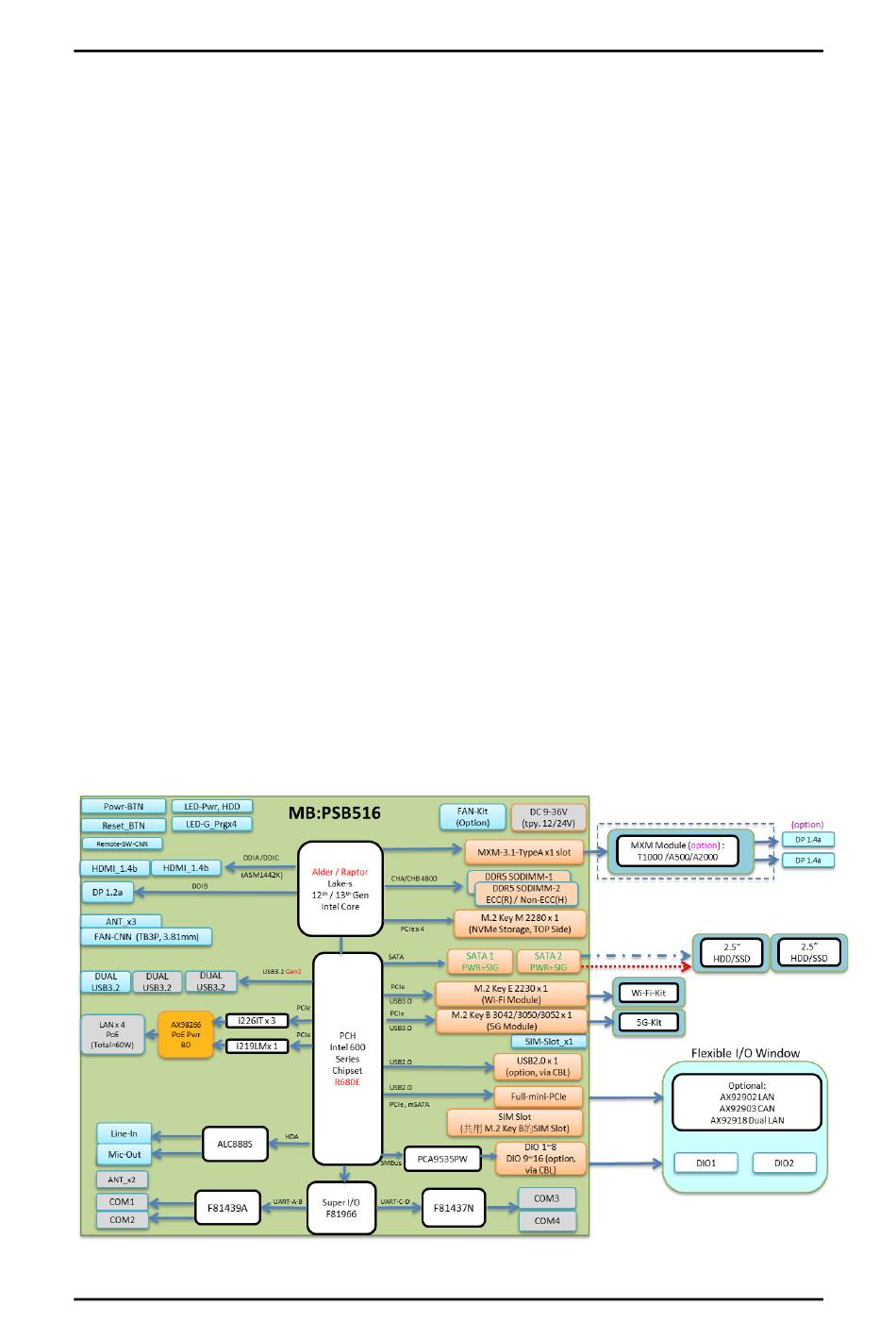

⚫ System Block diagram
4 Introduction
