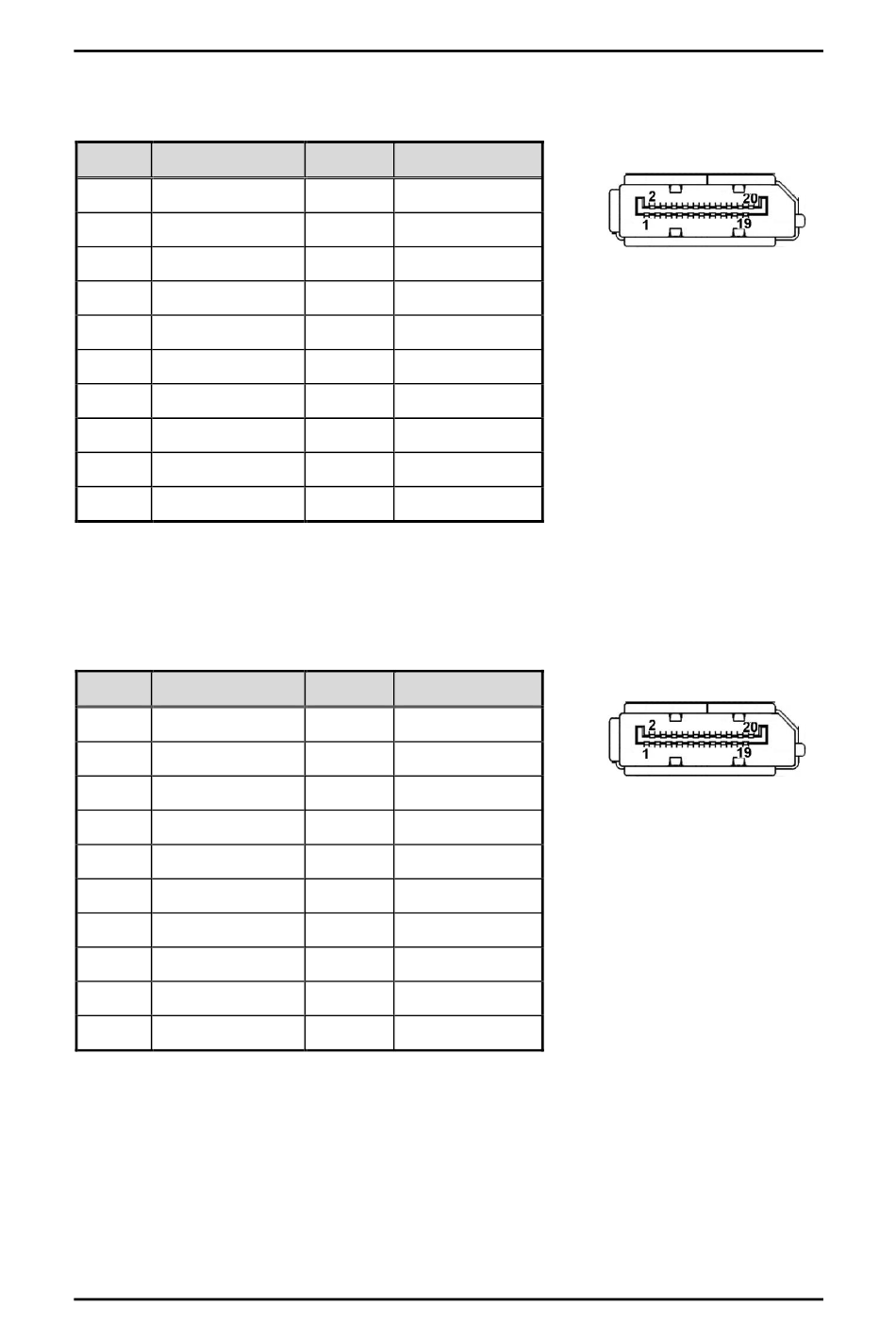

DisplayPort++ 1.2a Connector (CN28)

eBOX671B supports one DisplayPort outputs.
Pins Signals
1 DPB_LANE0
2 GND
3 DPB_LANE0#
4 DPB_LANE1
5 GND
6 DPB_LANE1#
7 DPB_LANE2
8 GND
9 DPB_LANE2#
10 DPB_LANE3

3.3.4 DisplayPort Connector (CN27)(optional, via MXM module)

eBOX671B support optional two DisplayPort outputs via MXM module.
Pins Signals
1 DPB_LANE0
2 GND
3 DPB_LANE0#
4 DPB_LANE1
5 GND
6 DPB_LANE1#
7 DPB_LANE2
8 GND
9 DPB_LANE2#
10 DPB_LANE3
40
Pins Signals
11 GND
12 DPB_LANE3#
13 Detect Pin
14 GND
15 DPB_AUX
16 GND
17 DPB_AUX#
18 DPB_HPDE
19 GND
20 +3.3V
Pins Signals
11 GND
12 DPB_LANE3#
13 Detect Pin
14 GND
15 DPB_AUX
16 GND
17 DPB_AUX#
18 DPB_HPDE
19 GND
20 +3.3V
