eBOX671B Series user's Manual
Step 4

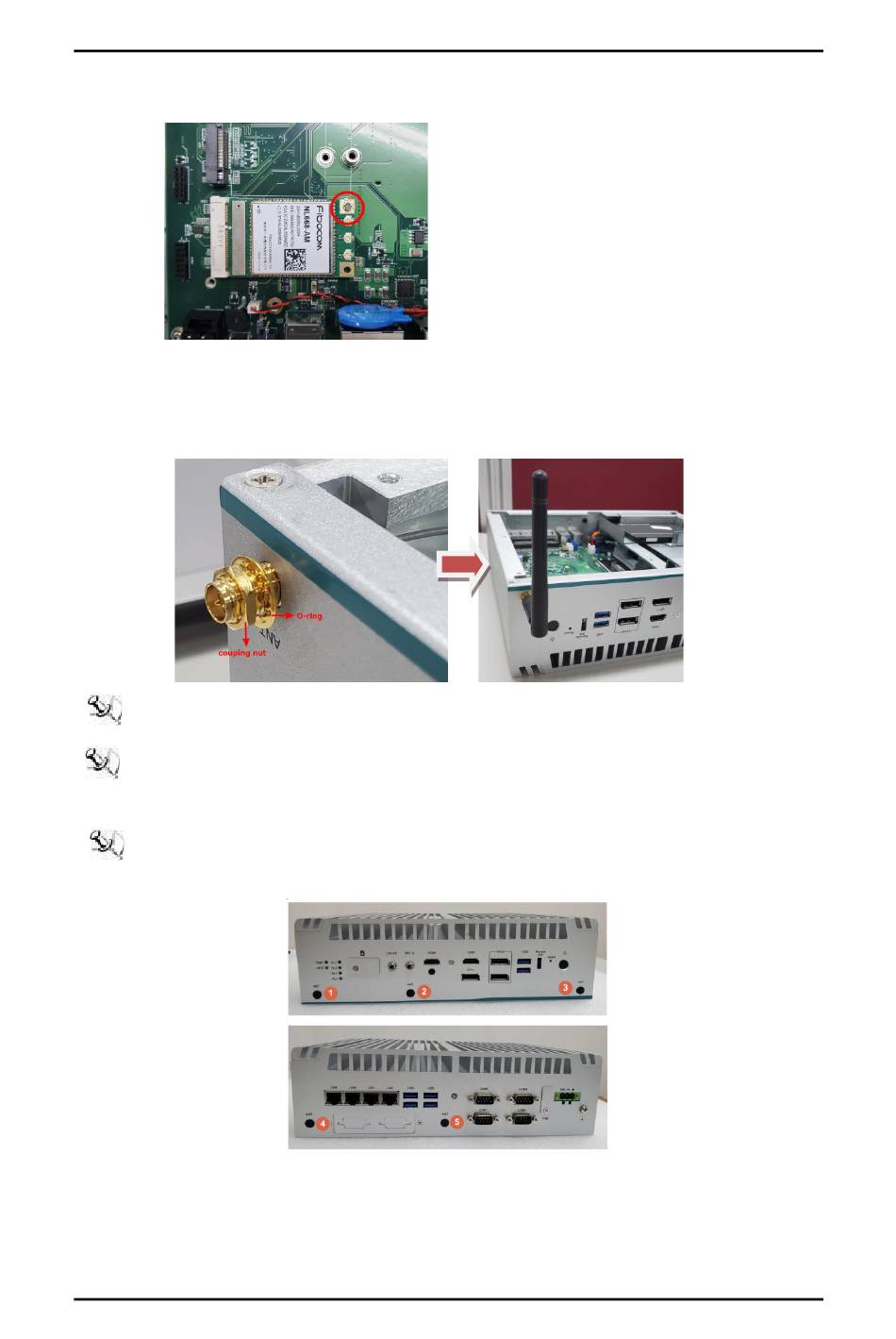

Insert the LTE mPCIe module on a 45 degree angle into the mPCIe slot
and secure the module with M3x2 screw.
Step 5
Remove the antenna cover from system, fix the SMA connector of the
IPEX-to-SMA cable to one of the five antenna apertures on either front
panel of back panel.
Note: Please use an extended bracket when using a half-size Mini card
Note: If users install Wi-Fi module, the installation procedure is the same as with LTE module, but
there is no need to insert a sim card.
Note: There are five antenna holes in the system, please adjust the antenna placement according
to the environment.
