3.3.1

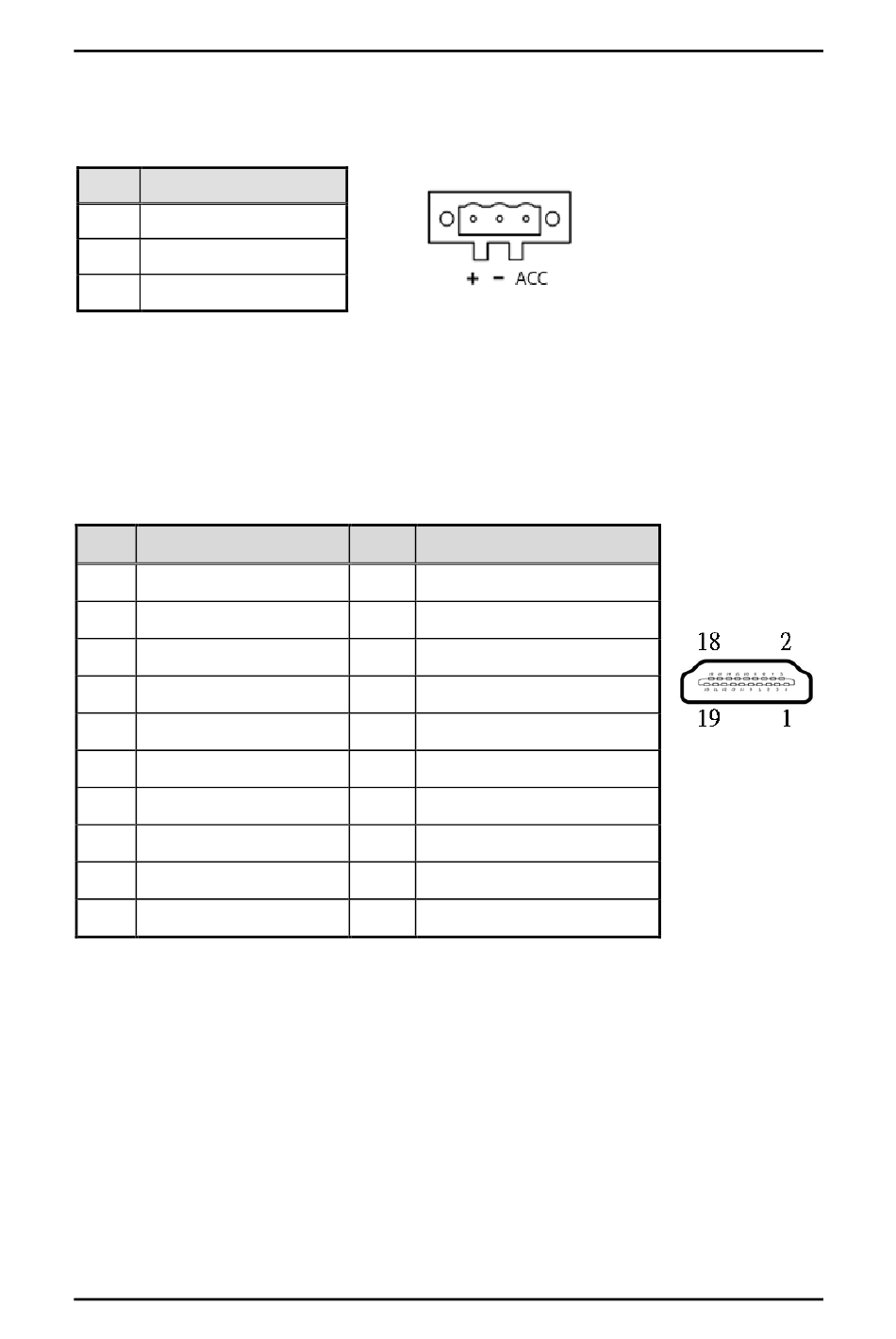

DC-in Phoenix Power Connector (CN1)

The system supports 9~48V Phoenix DC-in connector for system power input.
Pins Signals
1 DC+
2 DC-
3 ACC
3.3.2

HDMI Connector (CN28, CN34)

The HDMI (High-Definition Multimedia Interface) is a compact digital interface which
is capable of transmitting high-definition video and high-resolution audio over a single
cable.
Pins Signals
1 HDMI OUT_DATA2+
2 GND
3 HDMI OUT_DATA2-
4 HDMI OUT_DATA1+
5 GND
6 HDMI OUT_DATA1-
7 HDMI OUT_DATA0+
8 GND
9 HDMI OUT_DATA0-
10 HDMI OUT Clock+
Jumper & Connector Settings
Pins Signals
11 GND
12 HDMI OUT Clock-
13 N.C.
14 N.C.
15 HDMI OUT_SCL
16 HDMI OUT_SDA
17 GND
18 +5V
19 HDMI_HTPLG
eBOX671B Series user's Manual
HDMI1.4b
39
