eBOX671B Series user's Manual

2.5 Installation of Mini PCIe Module (CN23)

The eBOX671B provides one full-size mini-PCIe socket with SIM card support.

Customers can use this socket for install wireless modules or flexible IO modules to

expand functions for eBOX671B.

Install Mini PCIe Modules, please follow the instructions as blow:

- 1 x GbE Kit (RJ45*1)

- 1 x CAN Bus (DB9*1)

- 2 x RS-232 Kit (DB9*2, via flat cable)

- 2 x GbE Kit (RJ45*1)

Note: Please refence the data sheet for more mini card modules model.

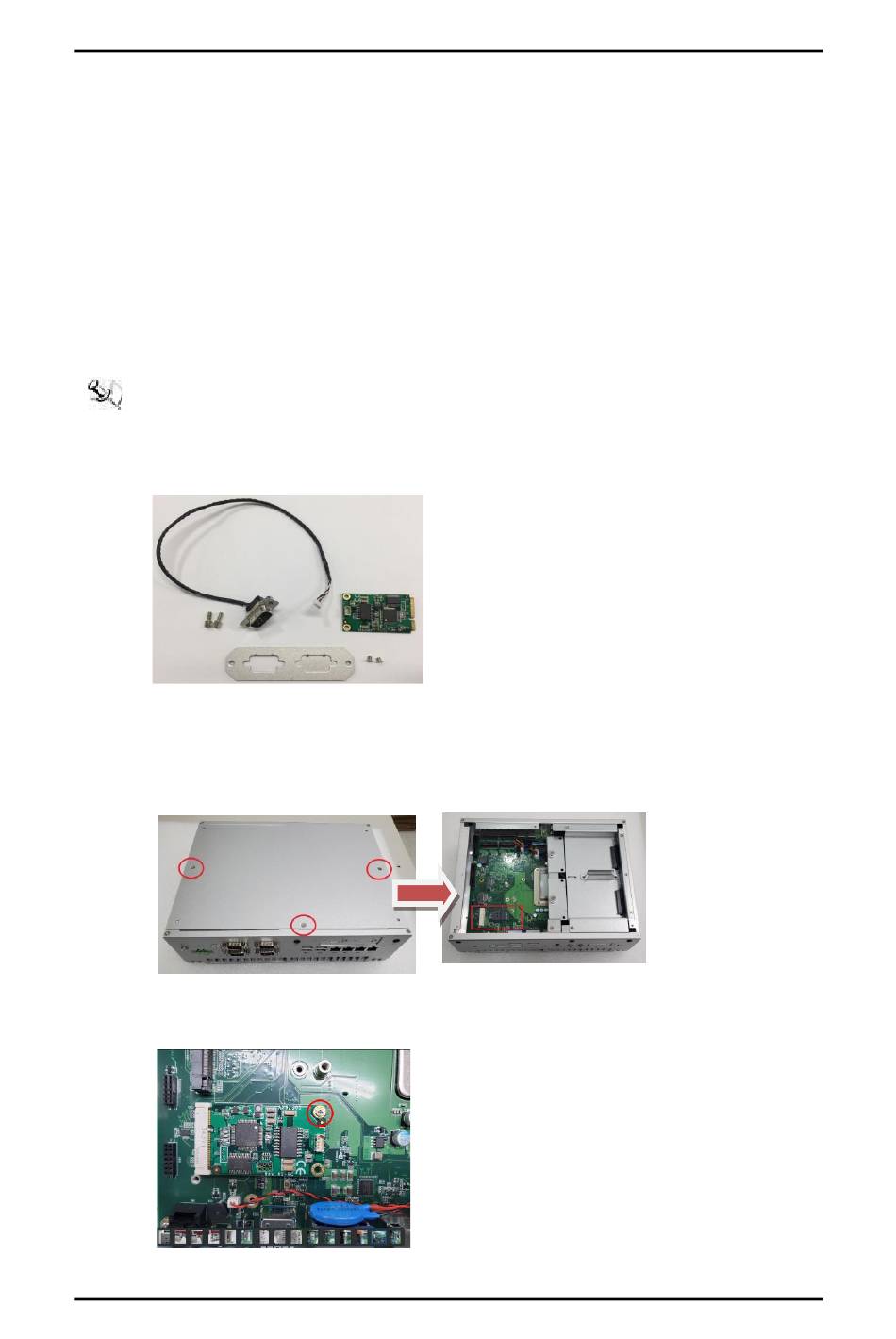

Step 1

Prepare the optional mini PCIe module kit as below photo shows.

Step 2 Turn off the system and unplug the power cord.

Step 3 Loosen three screws to remove bottom cover and locate PCIe mini

card slot within the red line as marked.

Step 4

Insert a mini PCIe module into the socket and tighten the card

securely to the mainboard with one M3x2 screw.

Hardware Installation
