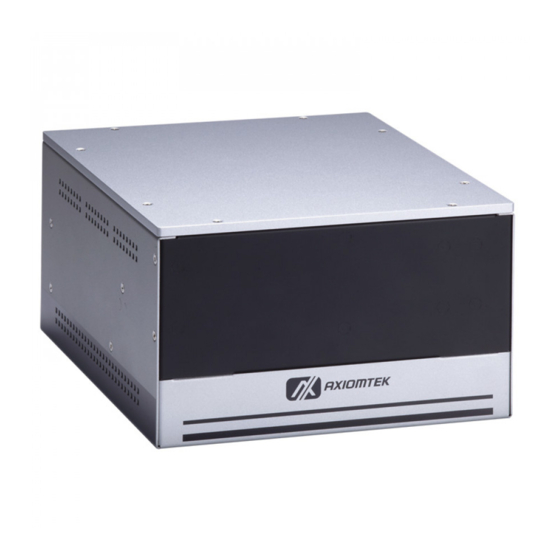

AXIOMTEK eBOX638-840-FL Quick Installation Manual

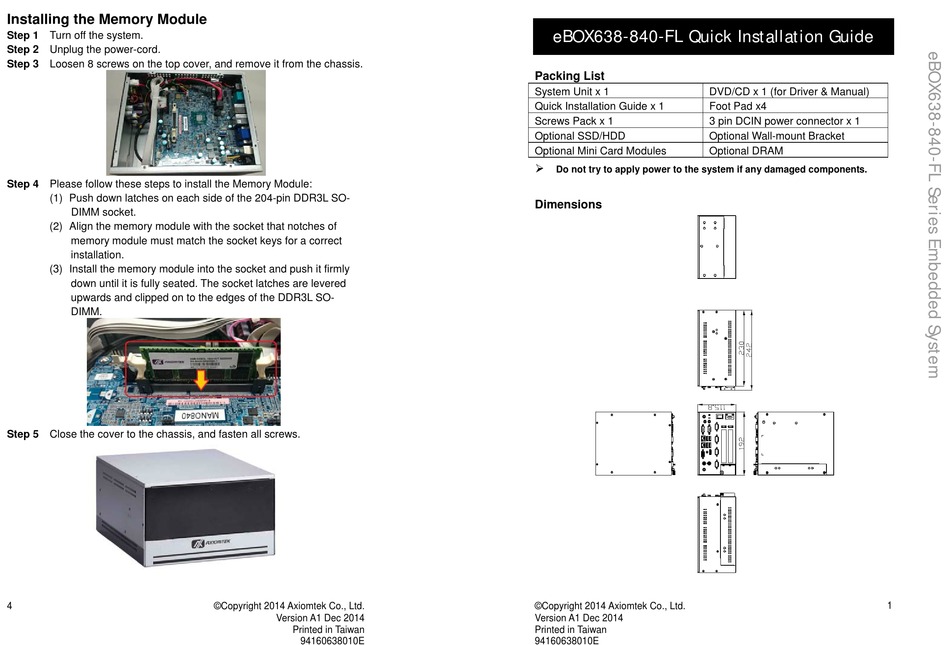

Installing the Memory Module
Step 1 Turn off the system.
Step 2 Unplug the power-cord.
Step 3 Loosen 8 screws on the top cover, and remove it from the chassis.
Step 4 Please follow these steps to install the Memory Module:
(1) Push down latches on each side of the 204-pin DDR3L SO-
DIMM socket.
(2) Align the memory module with the socket that notches of
memory module must match the socket keys for a correct
installation.
(3) Install the memory module into the socket and push it firmly
down until it is fully seated. The socket latches are levered
upwards and clipped on to the edges of the DDR3L SO-
DIMM.
Step 5 Close the cover to the chassis, and fasten all screws.
4
©Copyright 2014 Axiomtek Co., Ltd.
Version A1 Dec 2014
Printed in Taiwan
94160638010E
eBOX638-840-FL Quick Installation Guide
Packing List
System Unit x 1 DVD/CD x 1 (for Driver & Manual)
Quick Installation Guide x 1 Foot Pad x4
Screws Pack x 1 3 pin DCIN power connector x 1
Optional SSD/HDD Optional Wall-mount Bracket
Optional Mini Card Modules Optional DRAM

Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2014 Axiomtek Co., Ltd.
Version A1 Dec 2014
Printed in Taiwan
94160638010E
1
