3.3.8

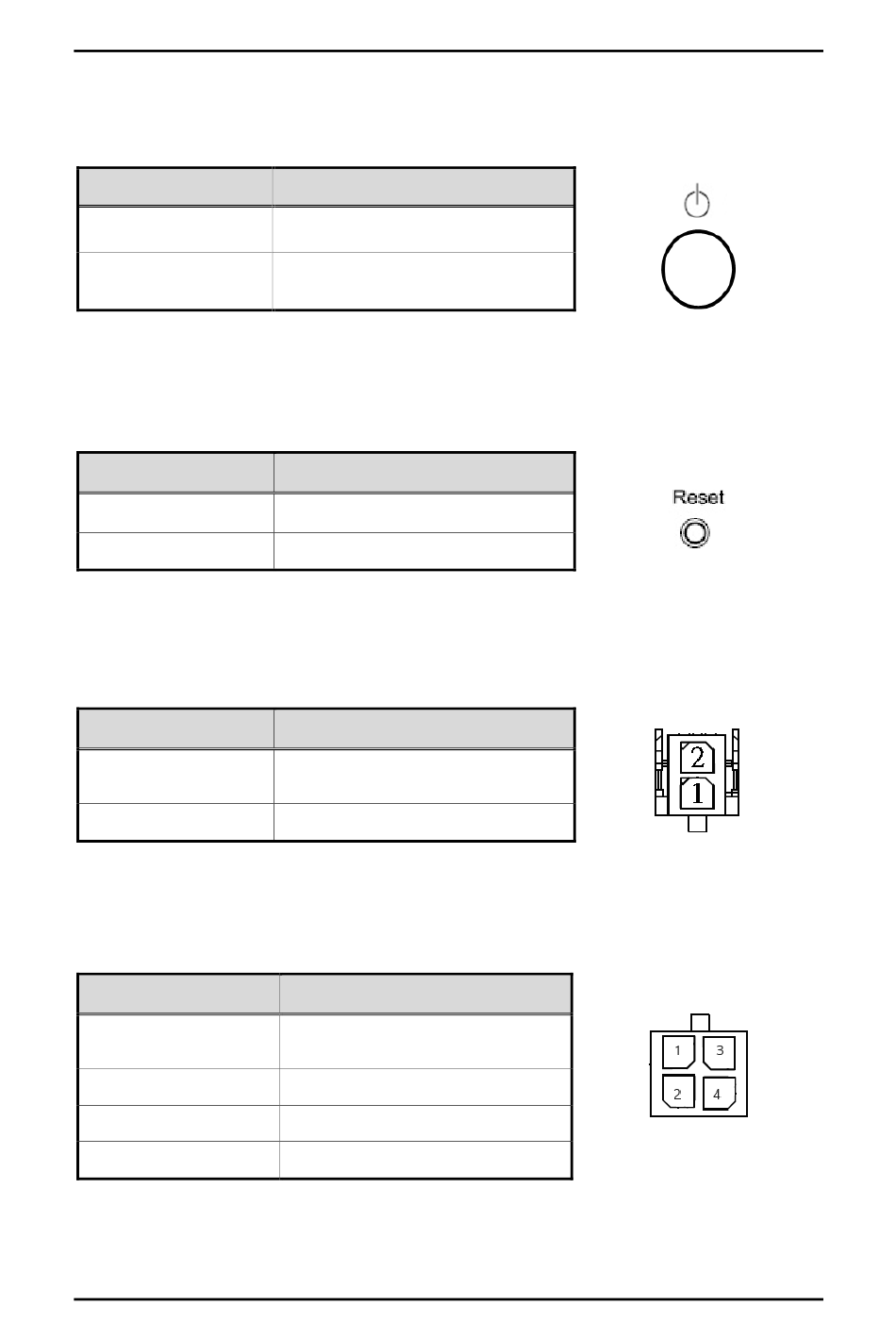

ATX Power On/Off (SW2)

The ATX power button is on the I/O side. It can allow users to control eBOX671B power on/off.
Functions
On
Off
3.3.9

Reset Switch (SW3)

The Reset button can allow users to reset eBOX671B system.
Functions
On
Off

3.3.10 Remote Power Switch Connector (CN31)

One 2-pin connector output for remote power on/off switch.
Functions
Short(1-2)
Open

3.3.11 FAN Kit Connector (CN2)(optional)

One 4pin connector output for optional Fan.
Functions
1
2
3
4
Jumper & Connector Settings
Descriptions
Turn on/off system
Keep system status
Descriptions
Reset system
Keep system status
Descriptions
Turn on/off system
Keep system status
Descriptions
FANIN_CPU
GND
+12V
FANOUT_CPU
