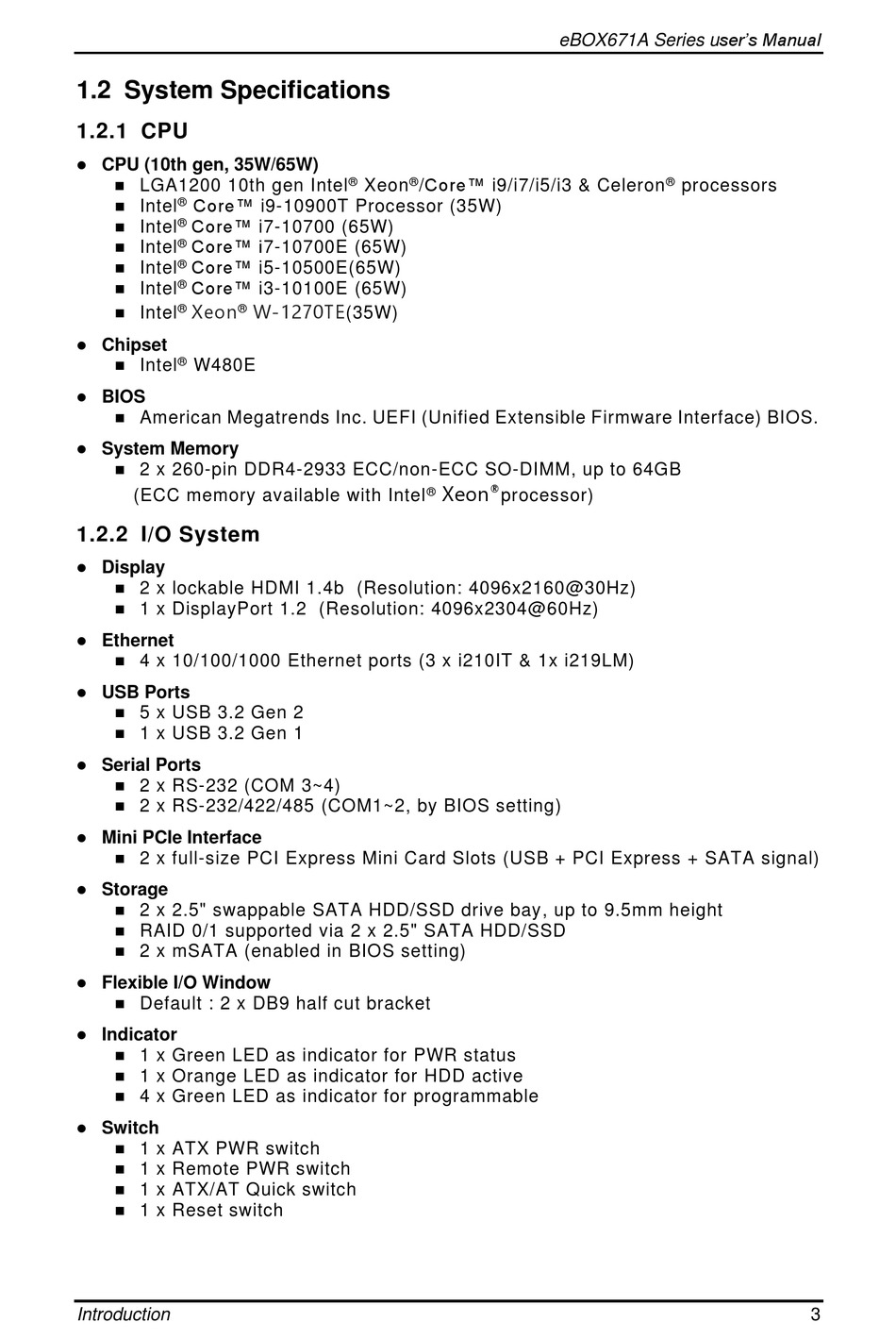

1.2 System Specifications

1.2.1 CPU

⚫ CPU (10th gen, 35W/65W)
◼ LGA1200 10th gen Intel
Core™ i9-10900T Processor (35W)
®
◼ Intel
Core™ i7-10700 (65W)
◼ ®
Intel
Core™ i7-10700E (65W)
◼ Intel ®
Core™ i5-10500E(65W)
®
◼ Intel
Core™ i3-10100E (65W)
®
◼ Intel
Xeon
◼ ® ®
Intel
⚫ Chipset
®
◼ Intel W480E
⚫ BIOS
◼ American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
⚫ System Memory
◼ 2 x 260-pin DDR4-2933 ECC/non-ECC SO-DIMM, up to 64GB
(ECC memory available with Intel

1.2.2 I/O System

⚫ Display
◼ 2 x lockable HDMI 1.4b (Resolution: 4096x2160@30Hz)
◼ 1 x DisplayPort 1.2 (Resolution: 4096x2304@60Hz)
⚫ Ethernet
◼ 4 x 10/100/1000 Ethernet ports (3 x i210IT & 1x i219LM)
⚫ USB Ports
◼ 5 x USB 3.2 Gen 2
◼ 1 x USB 3.2 Gen 1
⚫ Serial Ports
◼ 2 x RS-232 (COM 3~4)
◼
2 x RS-232/422/485 (COM1~2, by BIOS setting)
⚫ Mini PCIe Interface
◼ 2 x full-size PCI Express Mini Card Slots (USB + PCI Express + SATA signal)
⚫ Storage
◼ 2 x 2.5" swappable SATA HDD/SSD drive bay, up to 9.5mm height
◼ RAID 0/1 supported via 2 x 2.5" SATA HDD/SSD
◼
2 x mSATA (enabled in BIOS setting)
⚫ Flexible I/O Window
◼ Default : 2 x DB9 half cut bracket
⚫ Indicator
◼ 1 x Green LED as indicator for PWR status
◼ 1 x Orange LED as indicator for HDD active
◼ 4 x Green LED as indicator for programmable
⚫ Switch
◼
1 x ATX PWR switch
◼ 1 x Remote PWR switch
◼ 1 x ATX/AT Quick switch
◼ 1 x Reset switch
Introduction
® ®
Xeon /Core™ i9/i7/i5/i3 & Celeron
W-1270TE
(35W)
eBOX671A Series user's Manual
Xeon ®
®
processor)
®
processors
