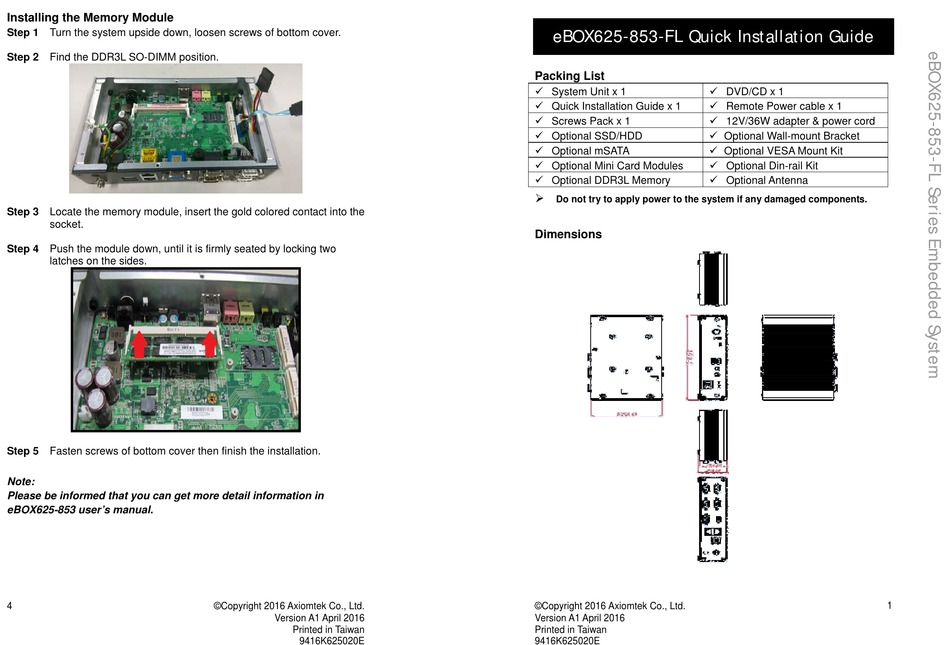

AXIOMTEK eBOX625-853-FL Quick Installation Manual

Installing the Memory Module

Step 1 Turn the system upside down, loosen screws of bottom cover.
Step 2 Find the DDR3L SO-DIMM position.
Step 3 Locate the memory module, insert the gold colored contact into the
socket.
Step 4 Push the module down, until it is firmly seated by locking two
latches on the sides.
Step 5 Fasten screws of bottom cover then finish the installation.
Note:
Please be informed that you can get more detail information in
eBOX625-853 user's manual.
4
©Copyright 2016 Axiomtek Co., Ltd.
Version A1 April 2016
Printed in Taiwan
9416K625020E
eBOX625-853-FL Quick Installation Guide

Packing List

 System Unit x 1  DVD/CD x 1
 Quick Installation Guide x 1  Remote Power cable x 1
 Screws Pack x 1  12V/36W adapter & power cord
 Optional SSD/HDD  Optional Wall-mount Bracket
 Optional mSATA  Optional VESA Mount Kit
 Optional Mini Card Modules  Optional Din-rail Kit
 Optional DDR3L Memory  Optional Antenna

Do not try to apply power to the system if any damaged components.
Dimensions
©Copyright 2016 Axiomtek Co., Ltd.
Version A1 April 2016
Printed in Taiwan
9416K625020E
1
