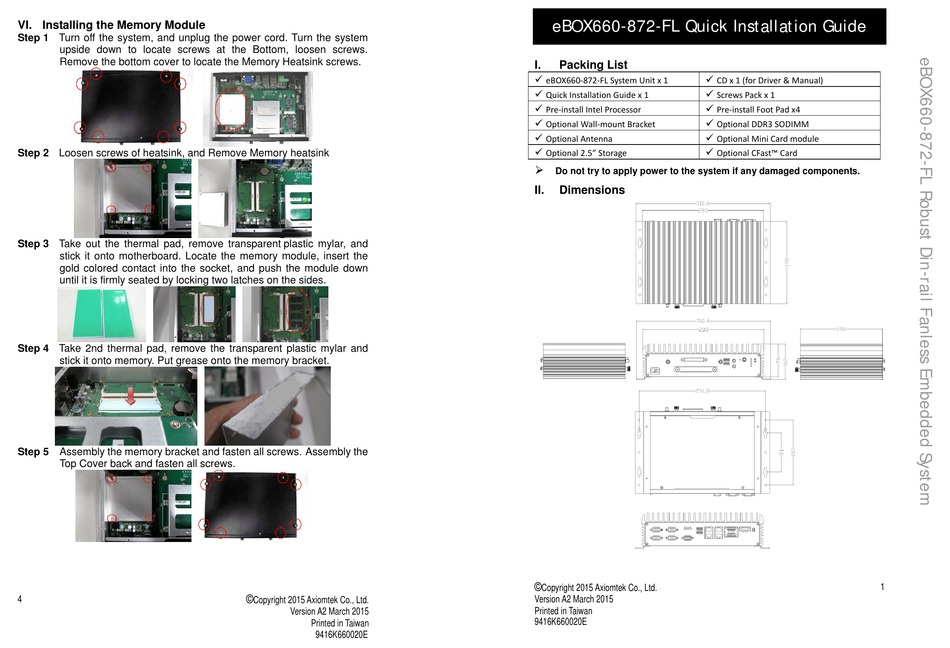

AXIOMTEK eBOX660-872-FL Quick Installation Manual

VI. Installing the Memory Module
Step 1 Turn off the system, and unplug the power cord. Turn the system
upside down to locate screws at the Bottom, loosen screws.
Remove the bottom cover to locate the Memory Heatsink screws.
Step 2 Loosen screws of heatsink, and Remove Memory heatsink
Step 3 Take out the thermal pad, remove transparent plastic mylar, and
stick it onto motherboard. Locate the memory module, insert the
gold colored contact into the socket, and push the module down
until it is firmly seated by locking two latches on the sides.
Step 4 Take 2nd thermal pad, remove the transparent plastic mylar and
stick it onto memory. Put grease onto the memory bracket.
Step 5 Assembly the memory bracket and fasten all screws. Assembly the
Top Cover back and fasten all screws.
4
©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 March 2015
Printed in Taiwan
9416K660020E
eBOX660-872-FL Quick Installation Guide
I.

Packing List

 
eBOX660‐872‐FL System Unit x 1
 
Quick Installation Guide x 1
 
Pre‐install Intel Processor
 
Optional Wall‐mount Bracket
 
Optional Antenna
 
Optional 2.5" Storage

Do not try to apply power to the system if any damaged components.
II.

Dimensions

©
Copyright 2015 Axiomtek Co., Ltd.
Version A2 March 2015
Printed in Taiwan
9416K660020E
CD x 1 (for Driver & Manual)
Screws Pack x 1
Pre‐install Foot Pad x4
Optional DDR3 SODIMM
Optional Mini Card module
Optional CFast™ Card
1
