AXIOMTEK FAB111-7B1P4 Quick Installation Manual

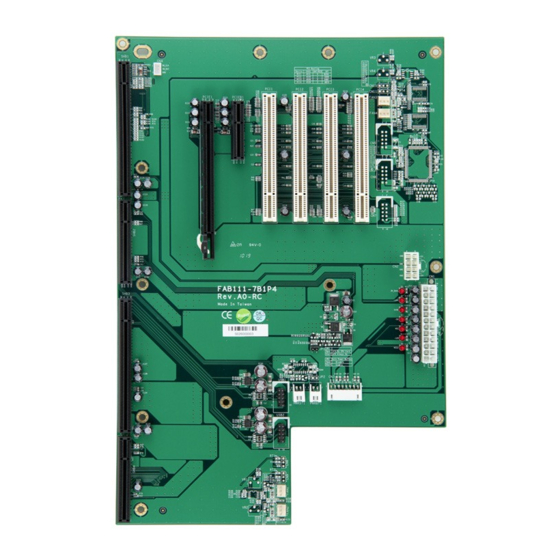

FAB111-7B1P4 Quick Installation Guide

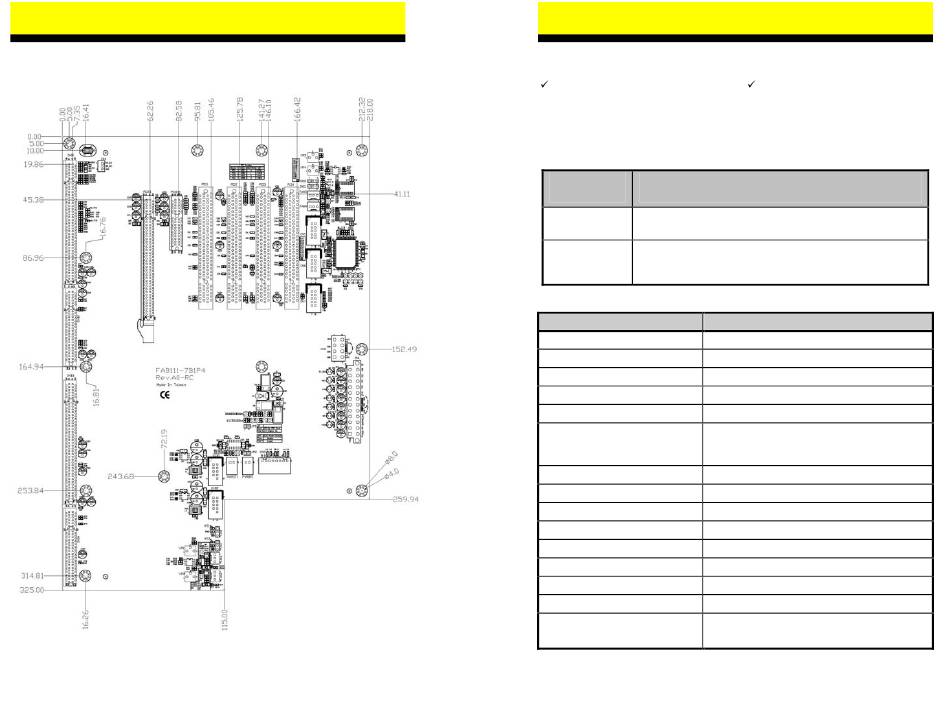

Board Dimensions
©Copyright 2010 AXIOMTEK Co., Ltd.
4
Version A1 Apr 2010
Printed in Taiwan
9419B111010E
FAB111-7B1P4 Quick Installation Guide
I. Checklist
FAB111-7B1P4 7-Slot ATX-Supported
PICMG 1.3 Bus Backplane x 1
Note1: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II. Jumper List
Jumper
Open : ATX by CPU Card
JP1
Short : ATX Power Always On
Auto : Power Button
JP2
Open : Disable
(Reserved)
Short : Enable
III. Connectors
Connector
CN1 ATX Power Connector
CN2 12V 8Pin(+12V Auxiliary Power Connector)
CN3 8-Pin Power Connector for thermal board
CN4 SM Bus Connector
CN5,CN6,CN7 (Reserved) COM Ports and DIO Connector (Optional)
Thermal sensor Connector For FAN1;FAN2
CN8,CN9,CN10,CN11(Reserved)
&FAN3;FAN4(Optional)
USB1,USB2 USB 0,1,2,3
PWRBT1 ATX Power button connector
HWRST1 Hardware Reset Connector
FAN1,FAN2,FAN3,FAN4 FAN Connector
SHB1 – SHB4 PICMG 1.3 Full-SIZE SBC Slot
PCI1-PCI4 PCI Slots 32-bit/33MHz
PCIE1 X16 PCIe Slot
PCIEB1 X4 PCIe Slot (Note 2)
Temperature Selection For FAN
VR1,VR2,VR3,VR4 (Reserved)
Control(Optional)
