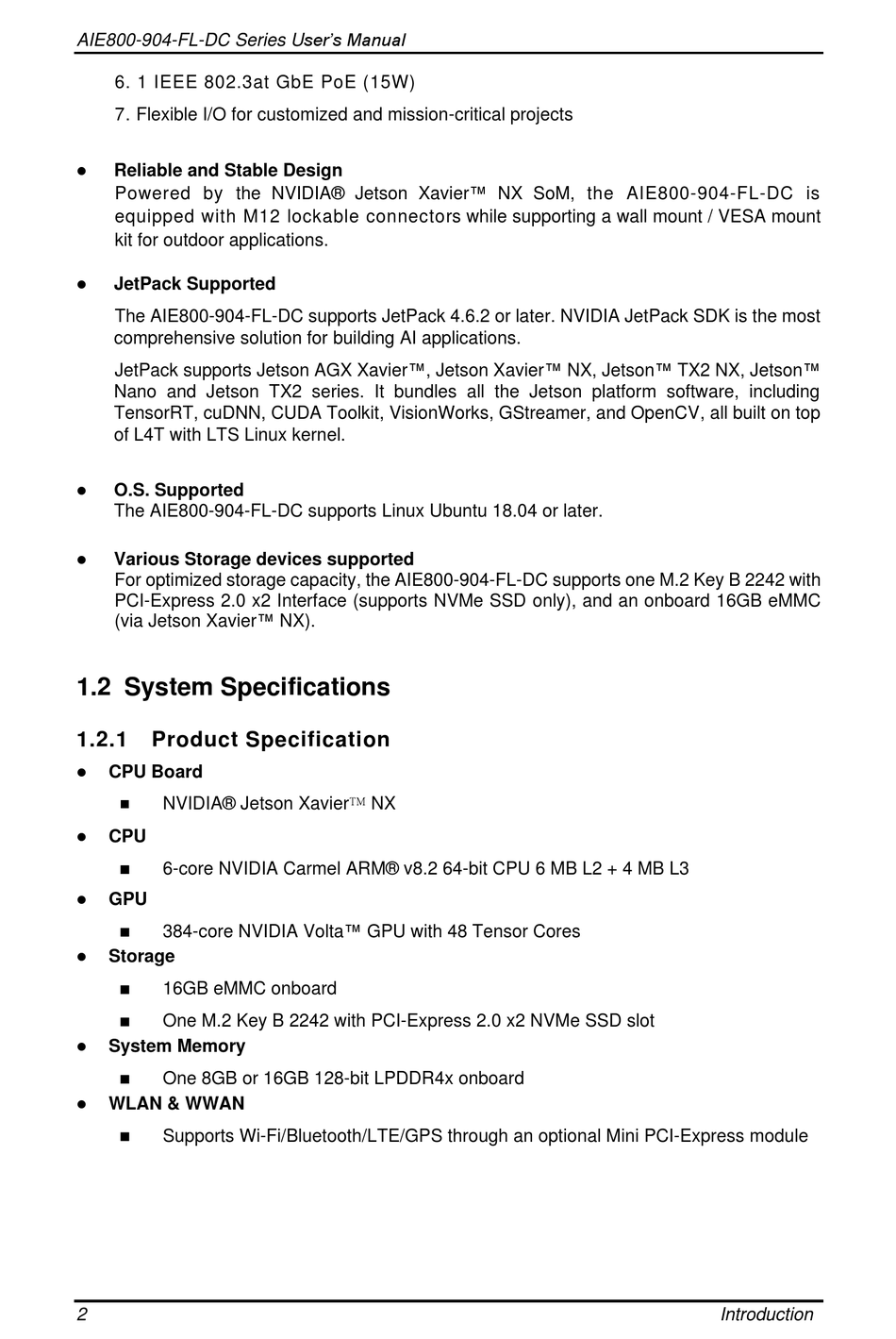

AIE800-904-FL-DC Series User's Manual
6. 1 IEEE 802.3at GbE PoE (15W)
7. Flexible I/O for customized and mission-critical projects
⚫ Reliable and Stable Design
Powered by the NVIDIA® Jetson Xavier™ NX SoM, the AIE800-904-FL-DC is
equipped with M12 lockable connectors while supporting a wall mount / VESA mount
kit for outdoor applications.
⚫ JetPack Supported
The AIE800-904-FL-DC supports JetPack 4.6.2 or later. NVIDIA JetPack SDK is the most
comprehensive solution for building AI applications.
JetPack supports Jetson AGX Xavier™, Jetson Xavier™ NX, Jetson™ TX2 NX, Jetson™
Nano and Jetson TX2 series. It bundles all the Jetson platform software, including
TensorRT, cuDNN, CUDA Toolkit, VisionWorks, GStreamer, and OpenCV, all built on top
of L4T with LTS Linux kernel.
⚫ O.S. Supported
The AIE800-904-FL-DC supports Linux Ubuntu 18.04 or later.
⚫ Various Storage devices supported
For optimized storage capacity, the AIE800-904-FL-DC supports one M.2 Key B 2242 with
PCI-Express 2.0 x2 Interface (supports NVMe SSD only), and an onboard 16GB eMMC
(via Jetson Xavier™ NX).

1.2 System Specifications

1.2.1

Product Specification

⚫
CPU Board
◼ NVIDIA® Jetson Xavier™ NX
⚫ CPU
◼ 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
⚫ GPU
◼
384-core NVIDIA Volta™ GPU with 48 Tensor Cores
⚫ Storage
◼ 16GB eMMC onboard
◼
One M.2 Key B 2242 with PCI-Express 2.0 x2 NVMe SSD slot
⚫ System Memory
◼ One 8GB or 16GB 128-bit LPDDR4x onboard
⚫ WLAN & WWAN
◼ Supports Wi-Fi/Bluetooth/LTE/GPS through an optional Mini PCI-Express module
2 Introduction
