2.4 Installation of M.2 Key B Mini PCIe Module (CN20)

The eBOX671B equipped with an M.2 Key B 3052 socket for users to install an 5G
module.

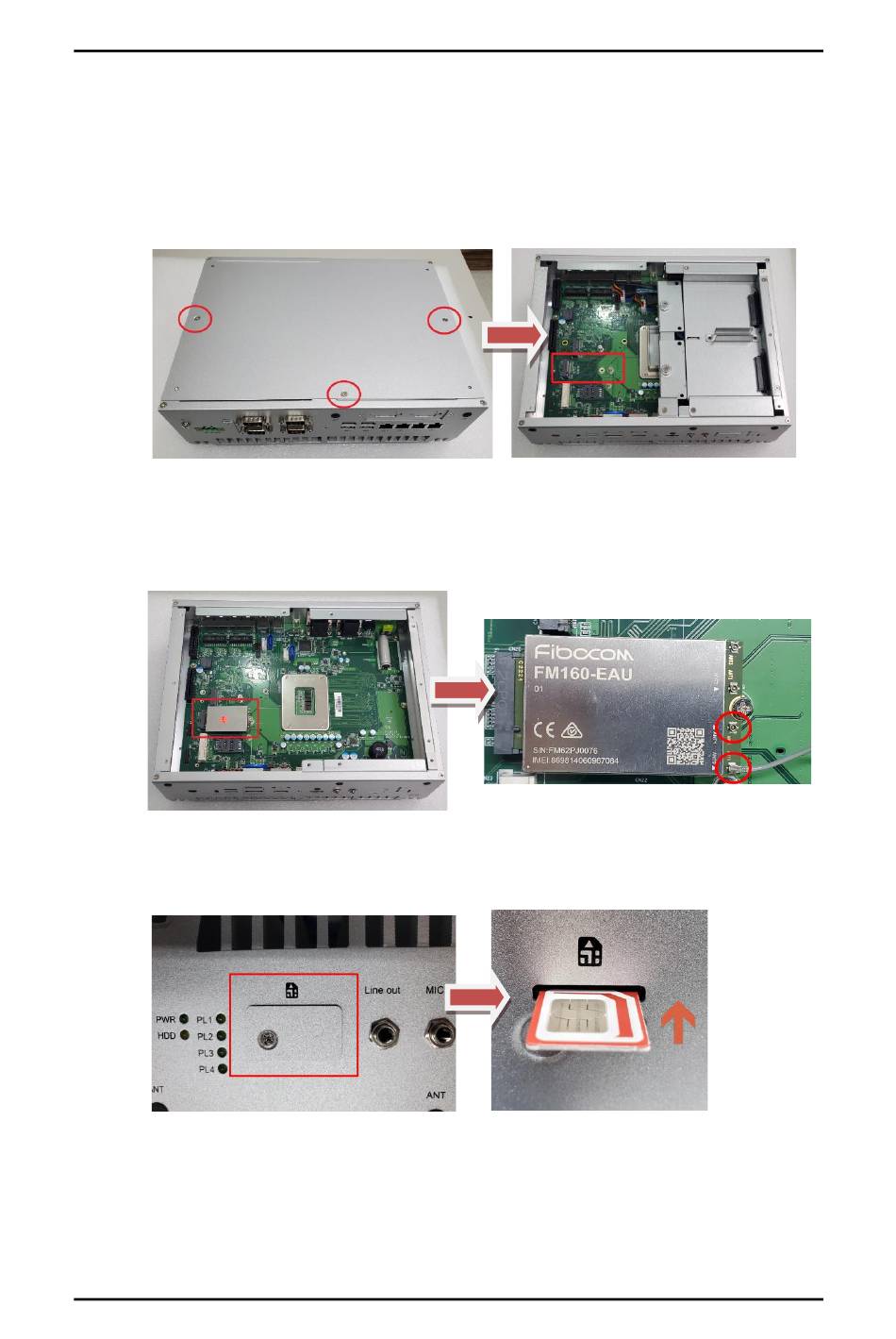

Step 1 Turn off the system and unplug the power cord.
Step 2 Loosen three screws to remove bottom cover and locate M.2 key B
mini card slot within the red line as marked.
Step 3 Insert 5G wireless module into the slot and tighten the card securely to
the mainboard with M3x3 screw, and attach the IPEX-to-SMA cable to
the 5G module.
Step 4 Remove the front panel-accessible SIM socket cover and insert the SIM
card upside down to the SIM socket to support wireless communication.
