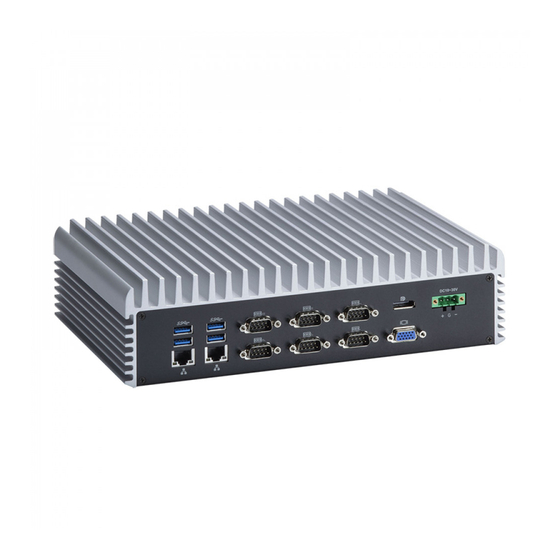

eBOX670-883-FL Series
Embedded System
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eBOX670-883-FL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK eBOX670-883-FL Series

Summary of Contents for AXIOMTEK eBOX670-883-FL Series

  • Page 1 Series Embedded System User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Safety Precautions Before getting started, please read the following important safety precautions. The eBOX670-883-FL does not come equipped with an operating system. An operating system must be loaded first before installing any software into the computer. Be sure to ground yourself to prevent static charge when installing the internal components.

  • Page 4: Classification

    Classification Degree of production against electric shock : not classified Degree of protection against the ingress of water : IP40 Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide. Mode of operation : Continuous...

  • Page 5: General Cleaning Tips

    General Cleaning Tips You may need the following precautions before you begin to clean the computer. When you clean any single part or component for the computer, please read and understand the details below fully. When you need to clean the device, please rub it with a piece of dry cloth. Be cautious of the tiny removable components when you use a vacuum cleaner to absorb the dirt on the floor.

  • Page 6: Scrap Computer Recycling

    If the computer equipment’s needs the maintenance or are beyond repair, we strongly recommended that you should inform your Axiomtek distributor as soon as possible for the suitable solution. For the computers that are no longer useful or no longer working well, please contact your Axiomtek distributor for recycling and we will make the proper arrangement.

  • Page 7: Table Of Contents

    Table of Contents Disclaimers ......................ii Safety Precautions ....................iii Classification ......................iv General Cleaning Tips .................... v Scrap Computer Recycling ..................vi CHAPTER 1 INTRODUCTION ................. 1 General Description ................1 System Specifications ................ 3 1.2.1 CPU ........................3 1.2.2 I/O System ......................
  • Page 8 3.3.13 SIM Card Slots ....................26 3.3.14 Serial ATA Connectors (SATA1-SATA2) ............26 3.3.15 CFast™ Socket ....................27 3.3.16 Digital I/O Connector ..................28 3.3.17 Express Mini Card Slot (SCN12, SCN13) ............29 CHAPTER 4 BIOS SETUP UTILITY ..............31 Starting ....................

  • Page 9: Chapter 1 Introduction

    Series User’s Manual CHAPTER 1 INTRODUCTION This chapter contains general information and detailed specifications of the eBOX670-883-FL. The Chapter 1 includes the following sections:  General Description  System Specifications  Dimensions  I/O Outlets  Packing List ...
  • Page 10 Series User’s Manual  Reliable and Stable Design The eBOX670-883-FL adopts the advanced cooling system and supporting the CFast™, which makes it especially suitable for vibration environments, best for industrial automation, digital signage and gaming application.  Embedded O.S. Supported The eBOX670-883-FL not only supports Windows 7, Windows 8, but also supports embedded OS, such as Windows 7 Embedded, Windows 8 Embedded and Linux.

  • Page 11: System Specifications

    Series User’s Manual System Specifications 1.2.1 CPU  LGA1150 Socket Intel® Core™ i7/i5/i3/Celeron processor   W orking temperature depends on TDP of processor, please refer to 1.2.3 System Specification  Chipset  Intel® Haswell Q87 chipset  BIOS ...

  • Page 12: Driver Cd Content

    Series User’s Manual  Storage Temperature  -45℃ ~ 80℃ (-49 ºF ~ 176ºF)  Humidity  10% ~ 90% (non-condensation)  Vibration Endurance  3Grm w/ CFast (5-500Hz, X, Y, Z directions)  Weight  3.8 kg (8.37 lb) without package ...

  • Page 13: Dimensions

    Series User’s Manual Dimensions The following diagrams show you dimensions and outlines of the eBOX670-883-FL. 1.3.1 System Dimension Introduction...

  • Page 14: Wall Mount Bracket Dimension

    Series User’s Manual 1.3.2 Wall mount Bracket Dimension Introduction...

  • Page 15: I/O Outlets

    Series User’s Manual I/O Outlets The following figures show you I/O outlets on front view of the eBOX670-883-FL.  Front View drawing ※ Indicator Information: HDD: 1 x Orange LED for HDD active PL1: Programmable LED (Please refer to Appendix B to set it.) PL2: Programmable LED (Please refer to Appendix B to set it.)
  • Page 16 Series User’s Manual  Rear View drawing Introduction...

  • Page 17: Packing List

    Fanless Embedded System with Intel Core i7 /i5/i3 & Celeron Processor, Q87 PCH, HDMIx2/VGA/DisplayPort, eBOX670-883-FL-DC Dual HDD, LAN*4, USB3.0*6, Audio, 232/422/485*6, 32 Channel digital I/O, 9~36VDC If you cannot find this package or any items are missing, please contact Axiomtek distributors immediately. Introduction...
  • Page 18 Series User’s Manual This page is intentionally left blank. Introduction...

  • Page 19: Chapter 2 Hardware Installation

    Series User’s Manual CHAPTER 2 HARDWARE INSTALLATION The eBOX670-883-FL is convenient for your various hardware configurations, such as HDD (Hard Disk Drive), SSD (Solid State Drive), CFast card or PCI Express Mini Card modules. The chapter 2 will show you how to install the hardware.
  • Page 20 Series User’s Manual Step 6 Fasten total four screws between two sides of HDD/SSD. ※ Please notice that you should base on the photo to check HDD ’s direction. Step 7 Lock the HDD and fasten screws then connect SATA & Power cables.
  • Page 21 Series User’s Manual << HDD-B >> Step 1 Please find the HDD bracket location then loosen four screws of HDD bracket to take out it. Step 2 You can refer to below photo to find out four screw holes and then set your HDD on bracket.

  • Page 22: Installing The Express Mini Card

    Series User’s Manual Installing the Express Mini Card Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system upside down to locate screws at the bottom, loosen screws. Step 3 Remove the top cover then find Mini Card location.

  • Page 23: Installing The Cfast Card

    Series User’s Manual Installing the CFast Card Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system to the side with CFast & SIM cover. Step 3 Loosen screws to remove the CFast & SIM cover.

  • Page 24: Installing The Sim Card

    Series User’s Manual Installing the SIM Card Step 1 Turn off the system, and unplug the power cord. Step 2 Turn the system to the side with CFast & SIM cover. Step 3 Loosen screws to remove the CFast & SIM cover.

  • Page 25: Installing The So-Dimm Memory

    DIMM slots are on the top side of main board . Step 3 You can get thermal pad of memory from accessory box. (If you don’t order memory from Axiomtek, you will get them from accessory box .) Step 4 Stick the thermal pad onto motherboard then insert your memory to the slot.
  • Page 26 Series User’s Manual This page is intentionally left blank. Hardware Installation...

  • Page 27: Chapter 3 Jumper Setting & Connector

    Jumper & Connector Location SBC87883 Top Side SBC87883 Bottom Side Note: We strongly recommended that you should not modify any unmentioned jumper setting without Axiomtek FAE’s instruction. Any modification without instruction might cause system to become damage. Jumper Setting & Connector...

  • Page 28: Jumper Setting Summary

    Series User’s Manual Jumper Setting Summary Proper jumper settings configure the eBOX670-883-FL to meet your application purpose. We are herewith listing a summary table of all jumpers and default settings for onboard devices, respectively. Jumper Function/Default Setting Jumper Setting...

  • Page 29: Connectors

    Series User’s Manual Connectors Connectors connect the board with other parts of the system. Loose or improper connection might cause problems. Make sure all connectors are properly and firmly connected. Here is a summary table shows you all connectors and button on the eBOX670-883-FL Series.

  • Page 30: Dc-In Phoenix Power Connector

    Series User’s Manual 3.3.1 DC-in Phoenix Power Connector The system supports a wide range 9~36V Phoenix DC-in connector for system power input. Signal 3.3.2 VGA Connector The VGA connector is a slim type 15-pin D-Sub connector which is common for the CRT VGA display.

  • Page 31: Displayport Connector

    Series User’s Manual 3.3.4 DisplayPort Connector DisplayPort interface is also called DP port. Signal DPB_LANE0 DPB_LANE0# DPB_LANE1 DPB_LANE1# DPB_LANE2 DPB_LANE2# DPB_LANE3 DPB_LANE3# Detect Pin DPB_AUX DPB_AUX# DPB_HPDE +3.3V 3.3.5 COM1~COM6 Serial Port Connector The system has six serial ports. COM1~COM6 are RS-232/422/485 ports. Please refer to Chapter 4 for the detail of BIOS setting.

  • Page 32: Usb 3.0 Connector

    Series User’s Manual 3.3.6 USB 3.0 Connector The Universal Serial Bus connectors are compliant with USB 3.0 (5Gb/s), and ideally for installing USB peripherals such as keyboard, mouse, scanner, etc. Signal USB Port 0 Signal USB Port 1 USB_VCC (+5V level standby...

  • Page 33: Audio Connector (Scn2, Scn1)

    Series User’s Manual 3.3.8 Audio Connector (SCN2, SCN1) These two audio jacks ideal are for Audio Mic-In and Audio Line-out. Signal Line Out Microphone In 3.3.9 ATX Power On/OFF Button The ATX power button is on the I/O side. It can allow users to control eBOX635-881- FL power on/off.

  • Page 34: At/Atx Switch

    Series User’s Manual 3.3.12 AT/ATX Switch If you set AT/ATX switch to AT mode, the system will be automatically power on without pressing soft power button during power input; we can use this switch to achieve auto power on demand.

  • Page 35: Cfast™ Socket

    Series User’s Manual 3.3.15 CFast™ Socket The system is equipped with a CFast™ socket on the bottom side to support a CFast™ card which is based on the Serial ATA bus. The socket is specially designed to avoid incorrect installation of the CFast™ card. W hen installing or removing the CFast™...

  • Page 36: Digital I/O Connector

    Series User’s Manual 3.3.16 Digital I/O Connector The system is equipped with 32bit Programmable Digital I/O for 44-pin D-Sub female connectors, please refer to the following table to get default pin define. Default is 16in/16out. The digital I/O can be configured to control cash drawers and sense warning signals from an Uninterrupted Power System (UPS), or perform store security control.

  • Page 37: Express Mini Card Slot (Scn12, Scn13)

    Series User’s Manual 3.3.17 Express Mini Card Slot (SCN12, SCN13) eBOX670-883-FL provides two PCI Express Mini Card slots and they all supports a PCI Express x1 link and a USB 2.0 link with mSATA function. You can adjust SJP3 to set mSATA function for SCN12 or SCN13.
  • Page 38 Series User’s Manual This page is intentionally left blank. Jumper Setting & Connector...

  • Page 39: Chapter 4 Bios Setup Utility

    Series User’s Manual CHAPTER 4 BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del> key immediately.

  • Page 40: Main Menu

    Series User’s Manual Main Menu The first time you enter the setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as described below.

  • Page 41: Advanced Menu

    Series User’s Manual Advanced Menu  Launch PXE OpROM Use this item to enable or disable the boot ROM function of the onboard LAN chip when the system boots up. The Advanced menu also allows users to set configuration of the CPU and other system devices.
  • Page 42 Series User’s Manual  ACPI Settings You can use this screen to select options for the ACPI configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 43 Series User’s Manual  CPU Configuration This screen shows the CPU information. Hyper-threading To enable hyperthreading you must first enable it in your system's BIOS settings, the default is enabled. Intel Virtualization Technology If you want to enable or disable Intel Virtualization Technology function through BIOS, please adjust this item.
  • Page 44 Series User’s Manual  SATA Configuration In this Configuration menu, you can see the currently installed hardware in the SATA ports. During system boot up, the BIOS automatically detects the presence of SATA devices. SATA Mode Selection Determine how SATA controller(s) operate. Operation mode options are RAID Mode, IDE Mode and AHCI Mode.
  • Page 45 Series User’s Manual  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen. For items marked with “”, please press <Enter>...
  • Page 46 Series User’s Manual  Serial Port 1 Configuration Serial Port Use this item to enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for interrupt request line is IRQ4. Select Mode Use this item to configure serial port 0. Here are the options for your selection:...
  • Page 47 Series User’s Manual  Serial Port 2 Configuration Serial Port Use this item to enable or disable serial port 1. The optimal setting for base I/O address is 2F8h and for interrupt request line is IRQ3. Select Mode Use this item to configure serial port 0. Here are the options for your selection:...
  • Page 48 Series User’s Manual  Serial Port 3 Configuration Serial Port Use this item to enable or disable serial port 1. The optimal setting for base I/O address is 3E8h and for interrupt request line is IRQ7. Select Mode Use this item to configure serial port 0. Here are the options for your selection:...
  • Page 49 Series User’s Manual  Serial Port 4 Configuration Serial Port Use this item to enable or disable serial port 1. The optimal setting for base I/O address is 2E8h and for interrupt request line is IRQ5. Select Mode Use this item to configure serial port 0. Here are the options for your selection:...
  • Page 50 Series User’s Manual  Serial Port 5 Configuration Serial Port Use this item to enable or disable serial port 1. The optimal setting for base I/O address is 2E0h and for interrupt request line is IRQ10. Select Mode Use this item to configure serial port 0. Here are the options for your selection:...
  • Page 51 Series User’s Manual  Serial Port 6 Configuration Serial Port Use this item to enable or disable serial port 1. The optimal setting for base I/O address is 2F0h and for interrupt request line is IRQ6. Select Mode Use this item to configure serial port 0. Here are the options for your selection:...

  • Page 52: Chipset Menu

    Series User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► PCH-IO Configuration ►...
  • Page 53 Series User’s Manual  PCH-IO Configuration This screen shows memory information. For items marked with “”, please press <Enter> for more options. USB Configuration XHCI Mode Use this item to enable, disable or Auto mode for XHCI, it is one USB Spec compatible and provide an interface to different hardware host controller implementations.
  • Page 54 Series User’s Manual  System Agent (SA) Configuration This screen provides function for specifying internal graphics controller and memory related parameters. Graphics Configuration Internal Graphics You can use this item to select internal graphics to enable or disable. Graphics Control Use this item for further setting of graphics control;...
  • Page 55 Series User’s Manual  Memory Configuration Use this item for further setting of memory configuration, this screen displays memory information, and allows user to set memory configuration. BIOS Setup Utility...

  • Page 56: Boot Menu

    Series User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Boot Option Priorities These are settings for boot priority. Specify the boot device priority sequence from the available devices.

  • Page 57: Security Menu

    Series User’s Manual Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set (installed or uninstalled). User Password This item indicates whether an user password has been set (installed or uninstalled).

  • Page 58: Save & Exit Menu

    Series User’s Manual Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and return to Main Menu.
  • Page 59 Series User’s Manual Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select Yes to save changes. Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.
  • Page 60 Series User’s Manual This page is intentionally left blank. BIOS Setup Utility...

  • Page 61: Appendix Awatchdog Timer

    Series User’s Manual APPENDIX A WATCHDOG TIMER About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.

  • Page 62: Sample Program

    Series User’s Manual Sample Program Following is example to enable configuration by using debug tool.  Enable WDT 1.Enable configuration -O 2E 87 -O 2E 87 2. Select Logic device: -O 2E 07 -O 2F 08 3. WDT Device Enable...

  • Page 63: Appendix Bprogrammable Led

    Series User’s Manual APPENDIX B PROGRAMMABLE LED About Programmable LED eBOX670-883-FL supports two programmable LED which allows user to program the LED status. It can do as special indicator or alarm. Below is the way to program the LED.
  • Page 64 Series User’s Manual This page is intentionally left blank. Programmable LED...
