1.4 I/O Outlets

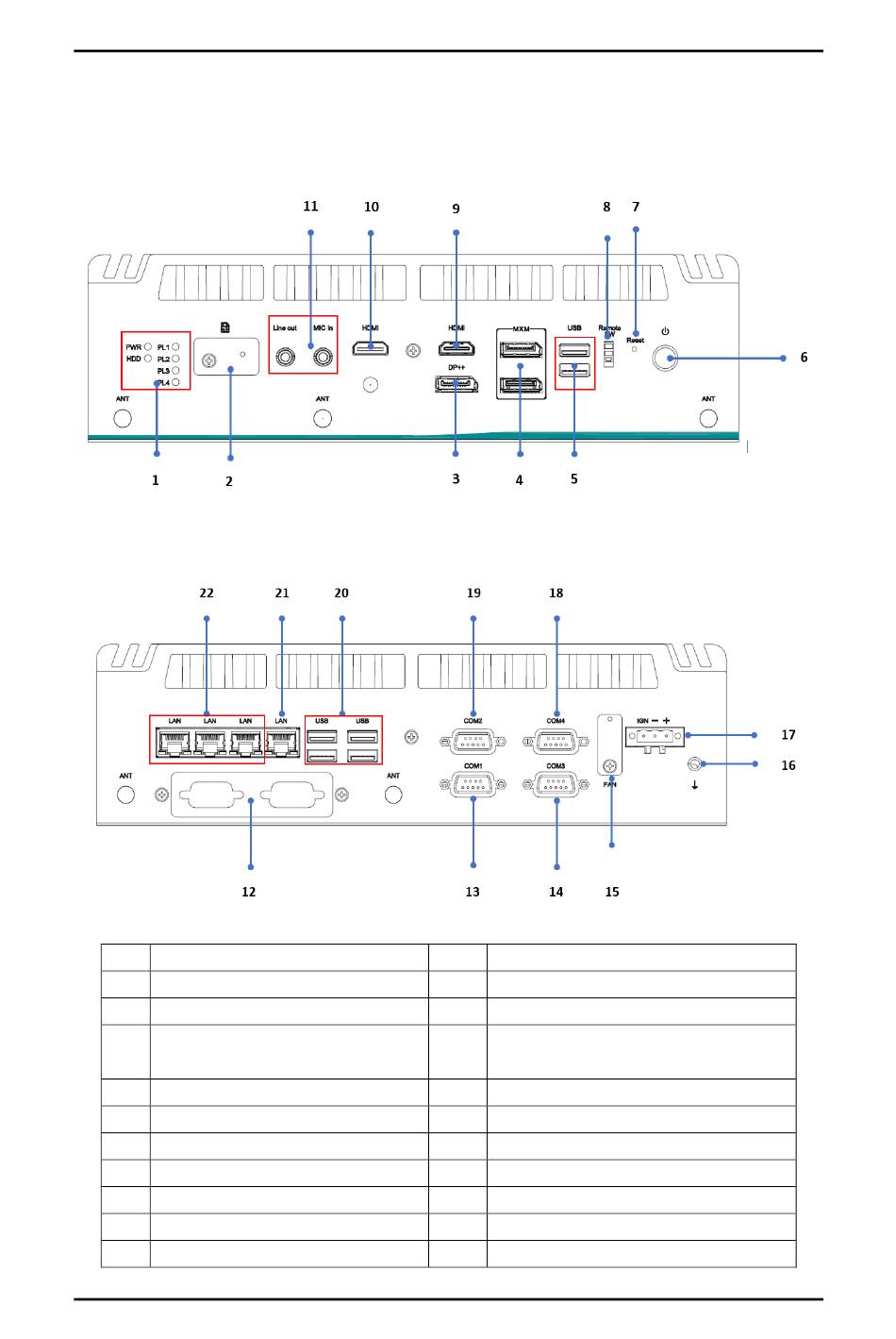

The following figures show I/O outlets on the eBOX671B.
Front View
Rear View
1
2 1 x Front Access SIM slot
3 1 x DisplayPort++
Optional 2 x optional DP
4
(via MXM module)
5 2 x USB 3.2
6 Power switch
7 Reset switch
8 Remote switch connector
9
10 1 x HDMI (lockable)
21 1 x LAN (i219-LM)
12
LEDs
1 x HDMI
11 Audio (Line in/Mic out)
12 Flexible IO window
13 RS232/422/485 (COM1)
14 RS232(COM3)
15 Optional FAN kit connector
16 Chassis Grounding screw
17 Phoenix type power input
18 RS232 (COM4)
19 RS232/422/485 (COM2)
20 4 x USB 3.2
22 3 x LAN (i226-AT)
