3.3.20 Digital I/O (CN13 and CN14) (optional)

The system is equipped with 16bit programmable Digital I/O, please refer to the following table
to get default pin define. Default is 4in/4out.
The digital I/O can be configured to control cash drawers and sense warning signals from an
Uninterrupted Power System (UPS) or perform store security control. You may use software
programming to control these digital signals.

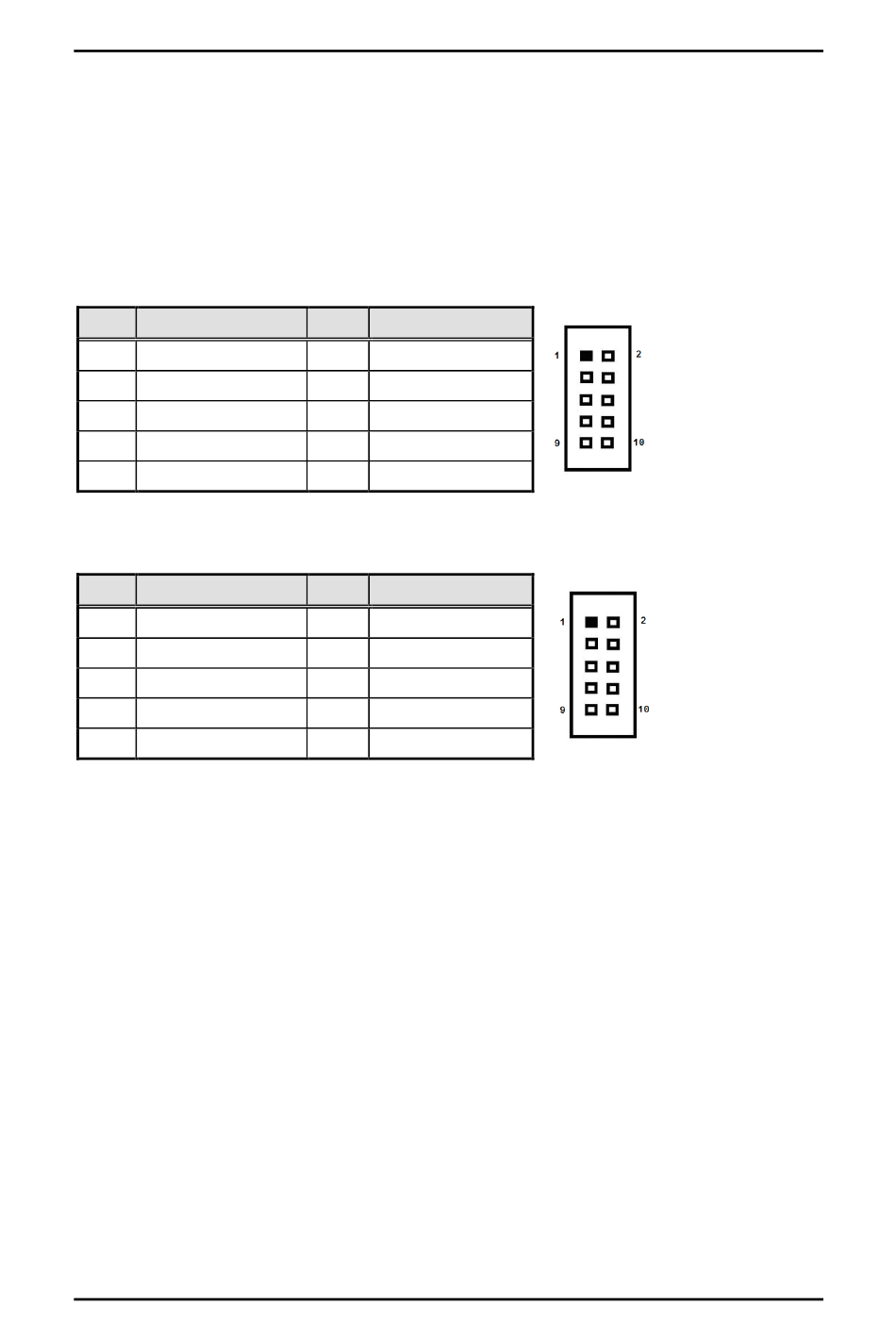

CN14
Pins Signals
1 DIO1_IN
3 DIO2_IN
5 DIO3_IN
7 DIO4_IN
9 +5V
CN13
Pins Signals
1 DIO9_IN
3 DIO10_IN
5 DIO11_IN
7 DIO12_IN
9 +5V
Jumper & Connector Settings
Pins Signals
2 DIO8_OUT
4 DIO7_OUT
6 DIO6_OUT
8 DIO5_OUT
10 GND
Pins Signals
2 DIO16_OUT
4 DIO15_OUT
6 DIO14_OUT
8 DIO13_OUT
10 GND
