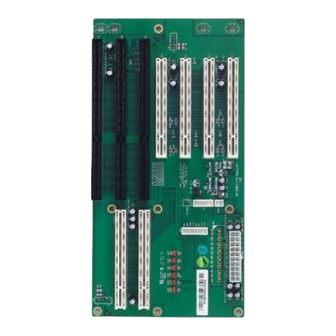

ATX6022/6 User's Manual
1 ISA / 4 PCI / 2 PICMG Backplane

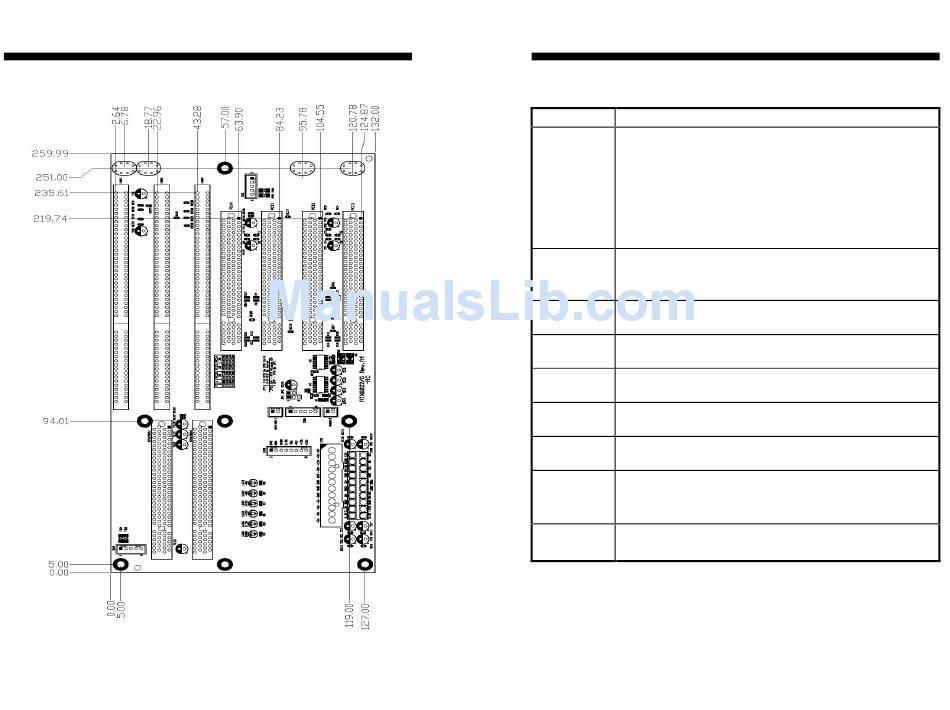

III. Board Dimensions
4
©Copyright 2010 AXIOMTEK Co., Ltd.
Version A3 May 2010
Printed in Taiwan
94160221520E
ATX6022/6 User's Manual
1 ISA / 4 PCI / 2 PICMG Backplane
I.
Jumper Settings & Connectors List
Jumper
Short 1-2:
System power ON/OFF either by front panel power
button (PWRBT1) or via ACPI compliant Microsoft
Windows software
JP1
Short 2-3:
System power ON/OFF via front panel power button
(PWRBT1)
Open: System power ON/OFF via JP2
Short: System power ON/OFF via power supply
JP2
switch
PWRBT1
Power ON/OFF push button connector to front panel
EXT-SMI1
External SMI connector to front panel
CN1;CN4
5 Pin K/B Connector
CN2
12 Pin AT Power Connector
CN3
8 Pin Power Output Connector
6 Pin ACPI Connector
6-pin cable to CPU card; used for Microsoft Windows
CN5
Soft-power ON/OFF (ACPI compliant)
20 Pin ATX Power Connector
CN6
