The eBOX671B is convenient for various hardware configurations, such as CPU, DRAM, HDD
(Hard Disk Drive), SSD (Solid State Drive), PCI Express Mini card modules and optional MXM
graphic module. Section 2 contains guidelines for hardware installation.
2.1 Installation of CPU
Step 1 Turn off the system and unplug the power cord.

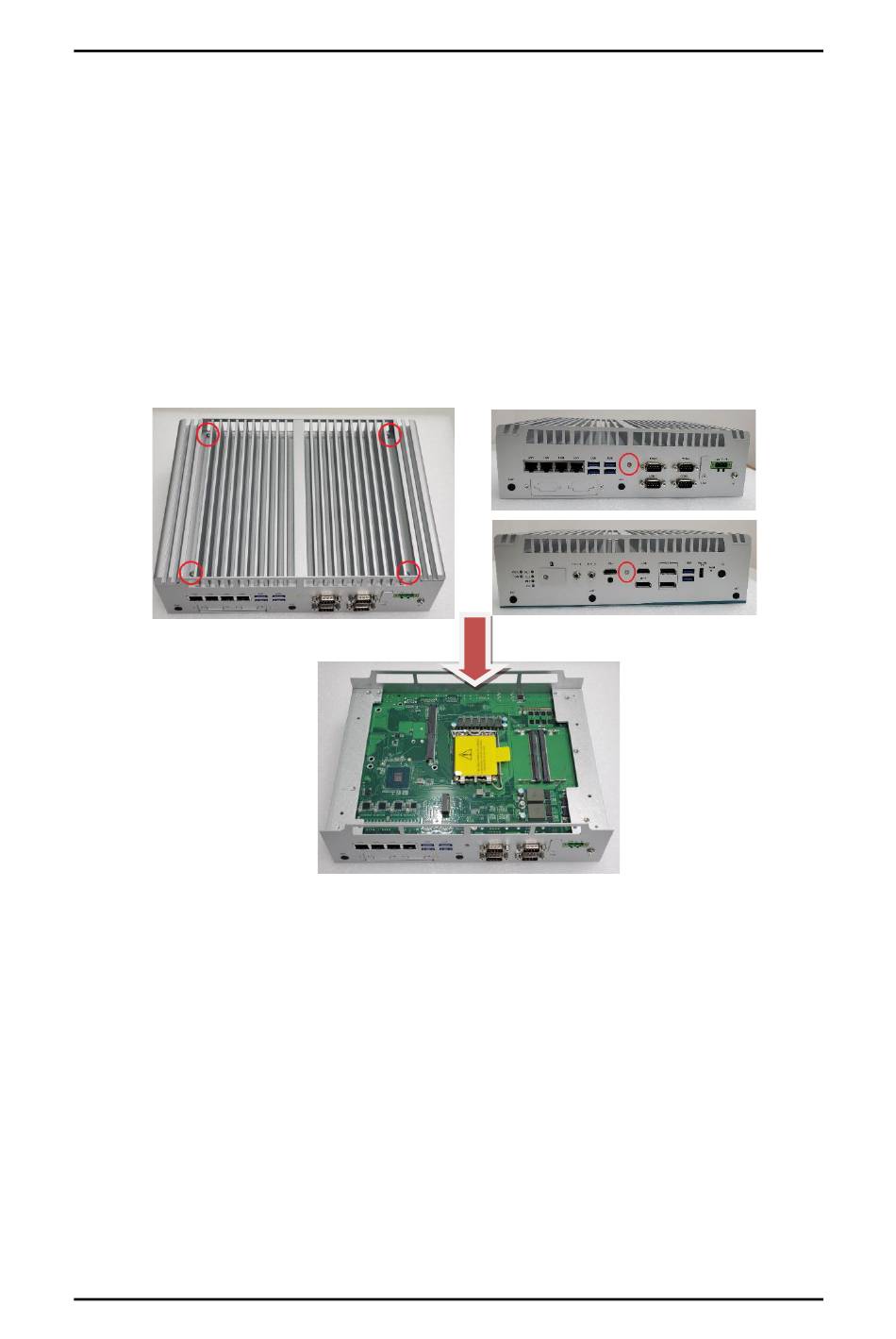

Step 2 Loosen four screws of the top heatsink & two screws of the front/rear
panel.
Step 3 Remove the top heatsink.
Hardware Installation
eBOX671B Series user's Manual
HARDWARE INSTALLATION
SECTION 2
15
