2.2 Installation of DRAM Module
Step 1 Turn off the system and unplug the power cord.

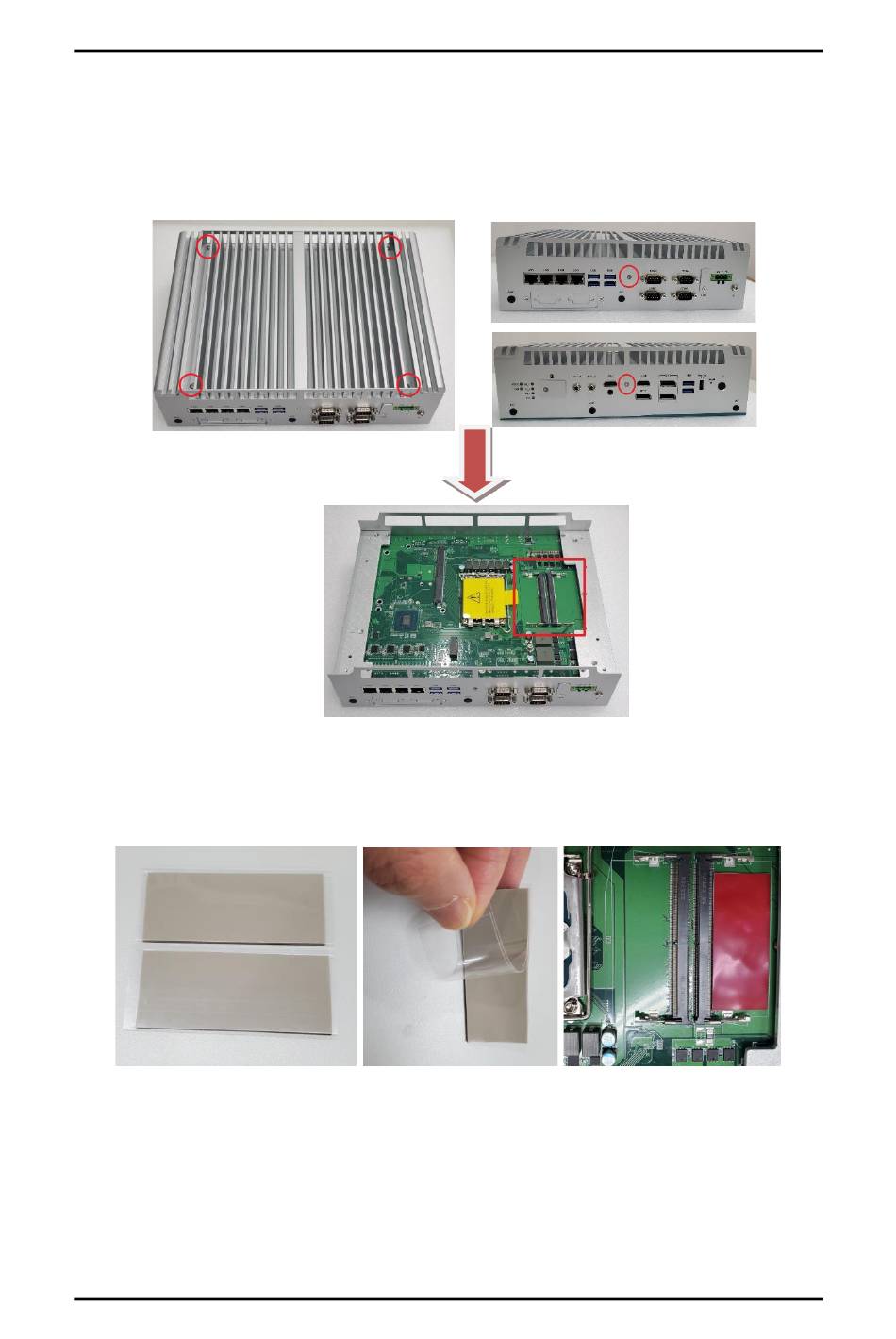

Step 2 Loosen four screws of the top heatsink & two screws of the front/rear
panel.
Step 3 Remove the top heatsink and located the dual SO-DIMM socket.
Step 4 Prepare thermal pad, the system will come with 2pcs thermal pad in
accessory pack. The thermal pads will come with plastic liner on one
side, so make sure it is removed before use. And then stick the
thermal pad on the DRAM socket.
Hardware Installation
eBOX671B Series user's Manual
19
