1.7.1.3 Electric Parts

The electrical unit of the printer is activated when connected to the AC power supply.

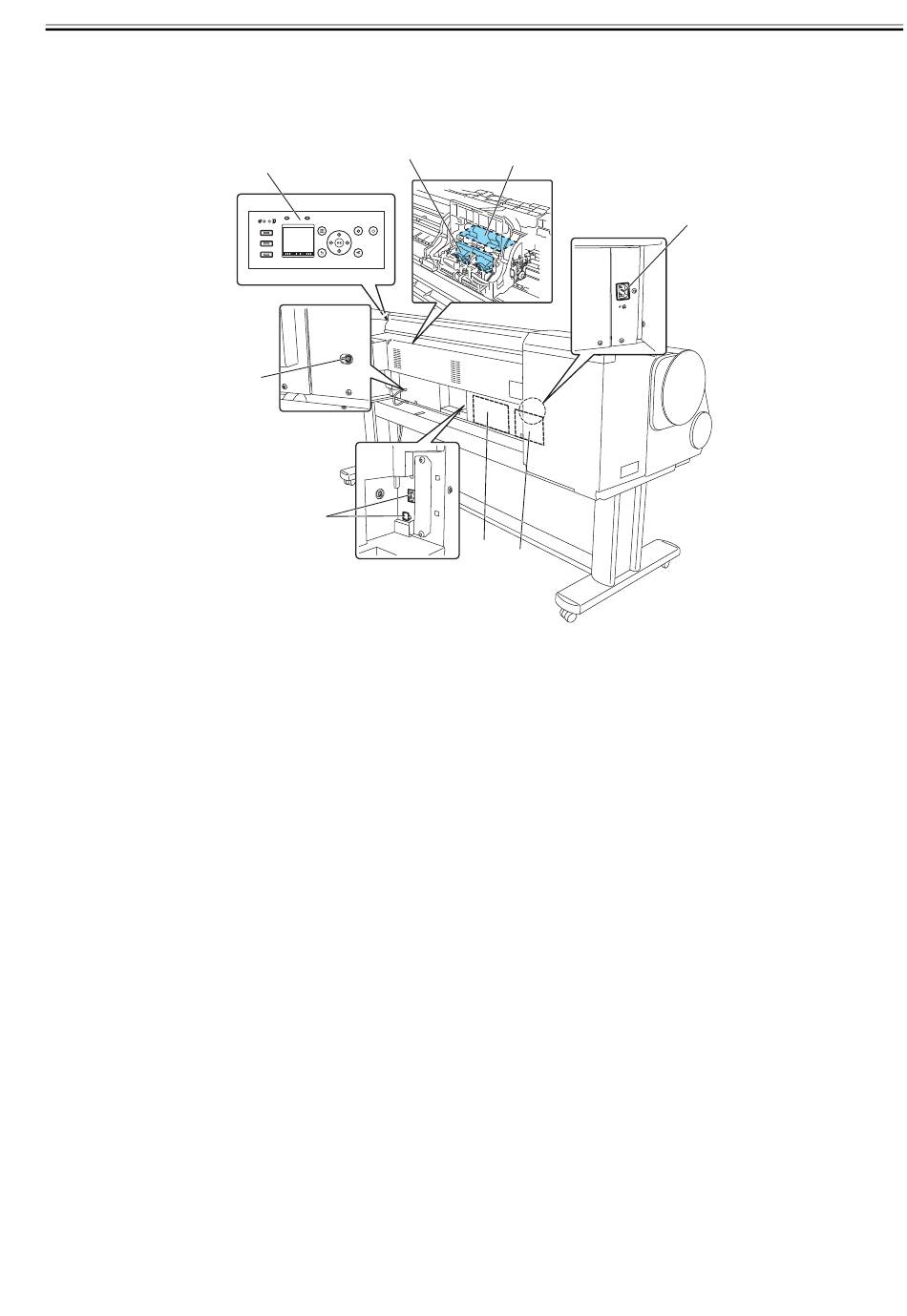

At the rear of the printer are the main controller, power supply, interface connector, and optional media take-up unit connector. The head relay PCB and carriage
relay PCB are incorporated in the carriage unit, and the operation panel is located on the upper right cover.
When servicing the printer with the cover removed, be extremely careful to avoid electric shock and shorting contacts.
[3]
[1]
[8]
[7]
[1] Operation panel
[2] Carriage relay PCB
[3] Head relay PCB
[4] AC inlet
[2]
[6]
[5]
F-1-37
[5] Power Supply
[6] Main controller PCB
[7] Interface connector
[8] Media take-up unit connector
Chapter 1
[4]
0012-6287
1-53
