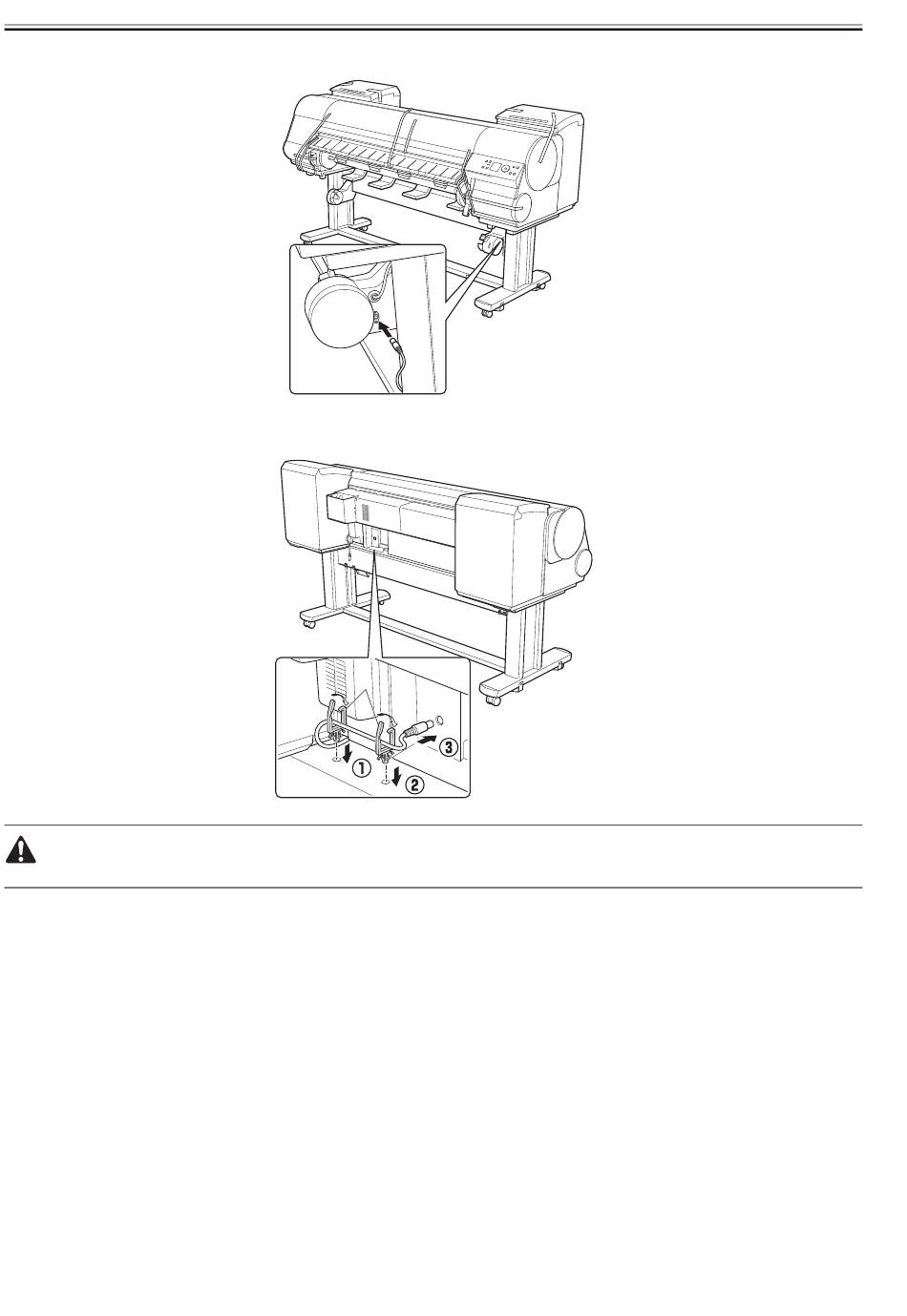

6) Plug the cord of the media take-up sensor unit into the right media take-up unit.
7) Attach the cord holders [1] to the holes of the top stand stay. Bring the power cord of the right media take-up unit to the back of the printer and pass the cord
through the cord holders. After passing the cord behind the holders, plug the cord into the power supply connector on the back of the printer.
When plugging in the power cord, be careful about the positions of the prongs. It may damage the cord or connector if you force the cord into the connector.
3-14
F-3-24
[1]
F-3-25
