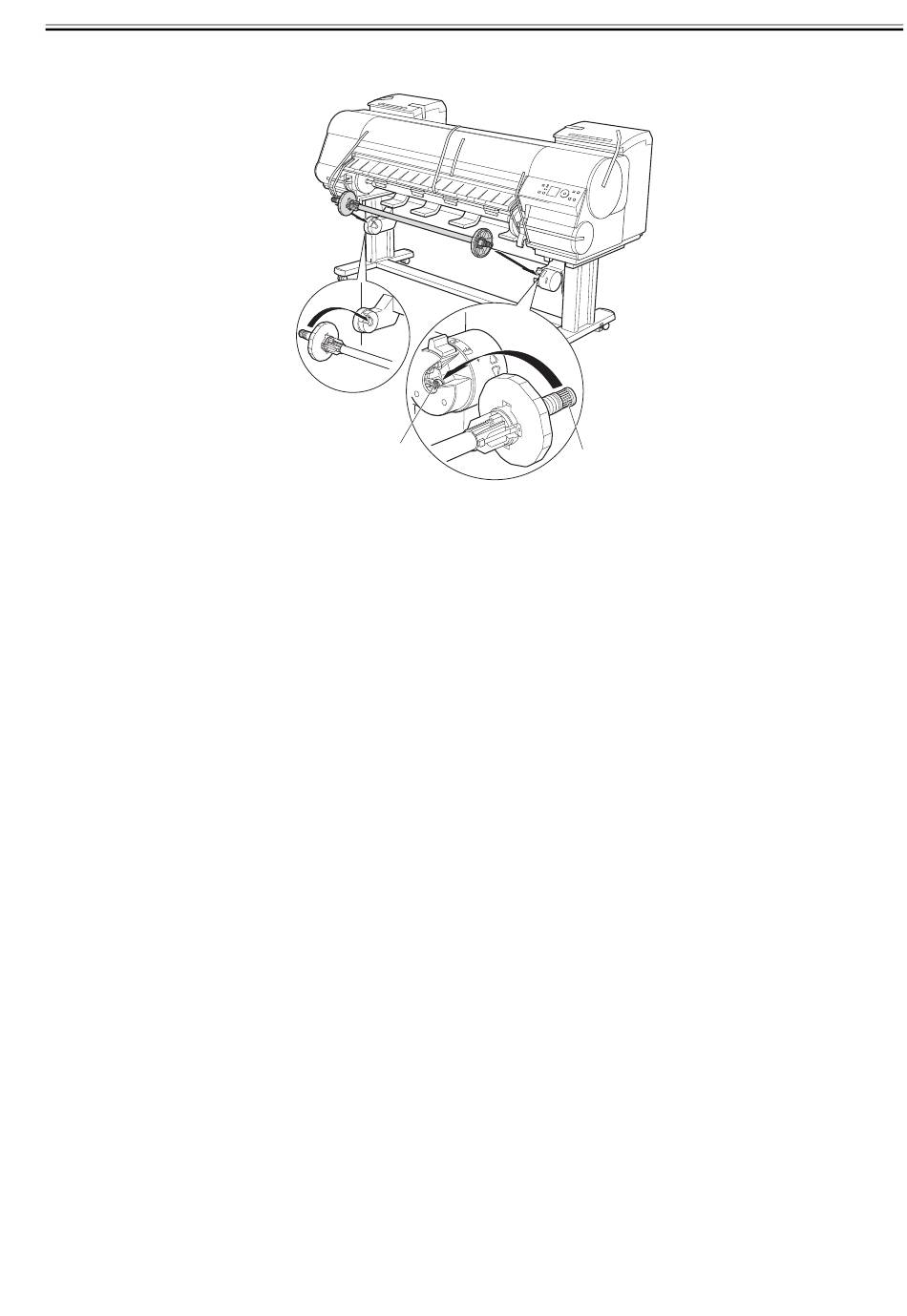

8) Load the left side of the media take-up spool on the media take-up unit so that the gear [1] on the right side of the media take-up spool meshes with the gear [2]
of the right media take-up unit.
[2]
[1]
F-3-26
