Chapter 1

1.7 Safety and Precautions

1.7.1 Safety Precautions

1.7.1.1 Moving Parts

Be careful not to get your hair, clothes, or accessories caught in the moving parts of the printer.

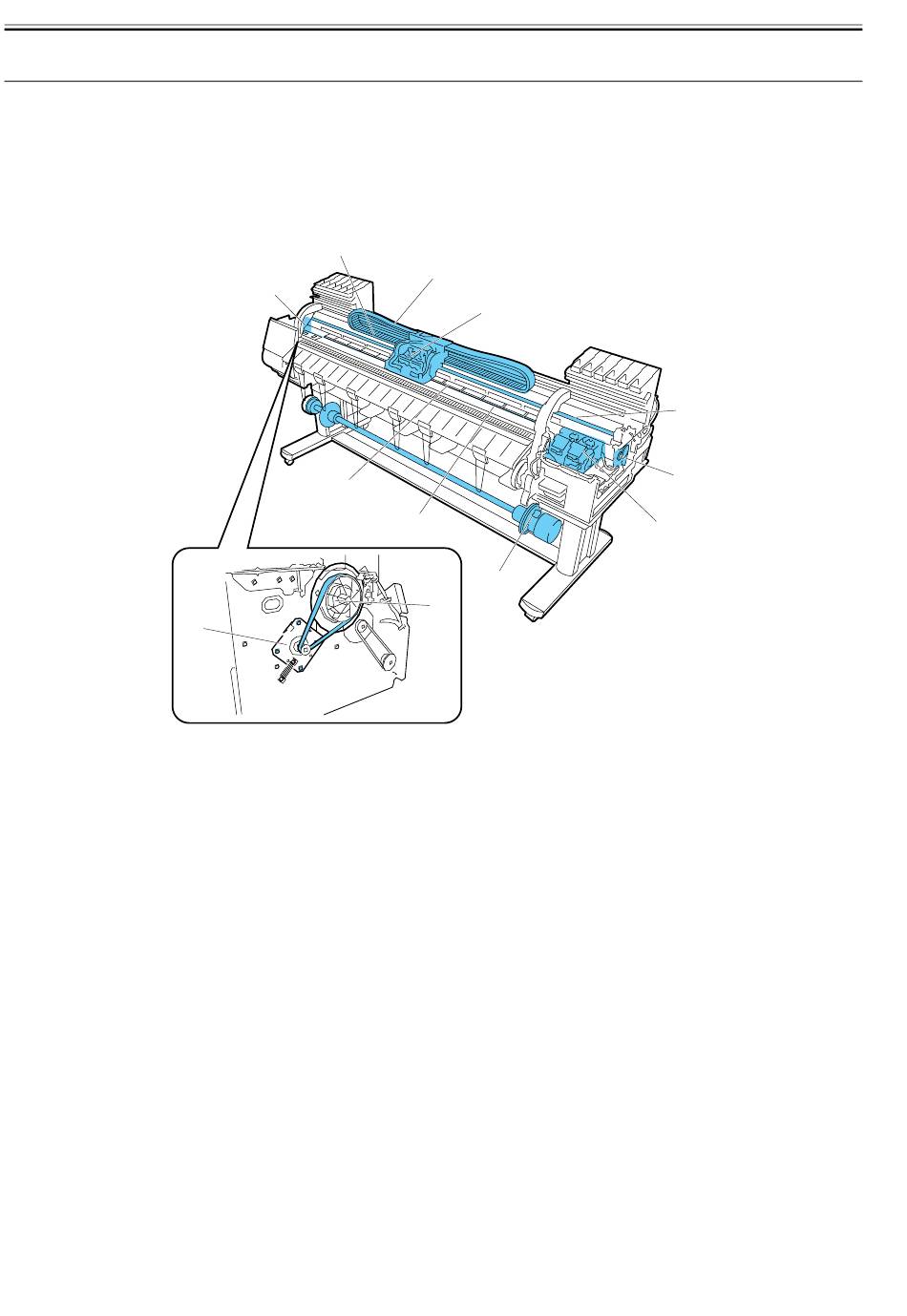

These include the carriage unit activated by the carriage motor, the carriage belt, the ink tube and the flexible cable; the feed motor-driven the feed roller, the pinch
roller; and the purge motor-driven the purge unit.
To prevent accidents, the upper cover of the printer is locked during printing so that it does not open. If the upper cover is opened in the online/offline mode, the
carriage motor, feed motor, and other driving power supplies are turned off.
1-50
[2]
[5]
[8]
[11]
[1] Carriage belt
[2] Ink tube
[3] Flexible cable
[4] Carriage unit
[5] Carriage motor
[6] Lift unit
[3]
[4]
[9]
[12]
[10]
F-1-34
[7] Purge unit
[8] Pinch roller
[9] Feed roller
[10] Feed unit
[11] Feed motor
[12] Media take-up unit
[1]
[6]
[7]
0012-6284
