Canon imagePROGRAF iPF8000S Service Manual page 189

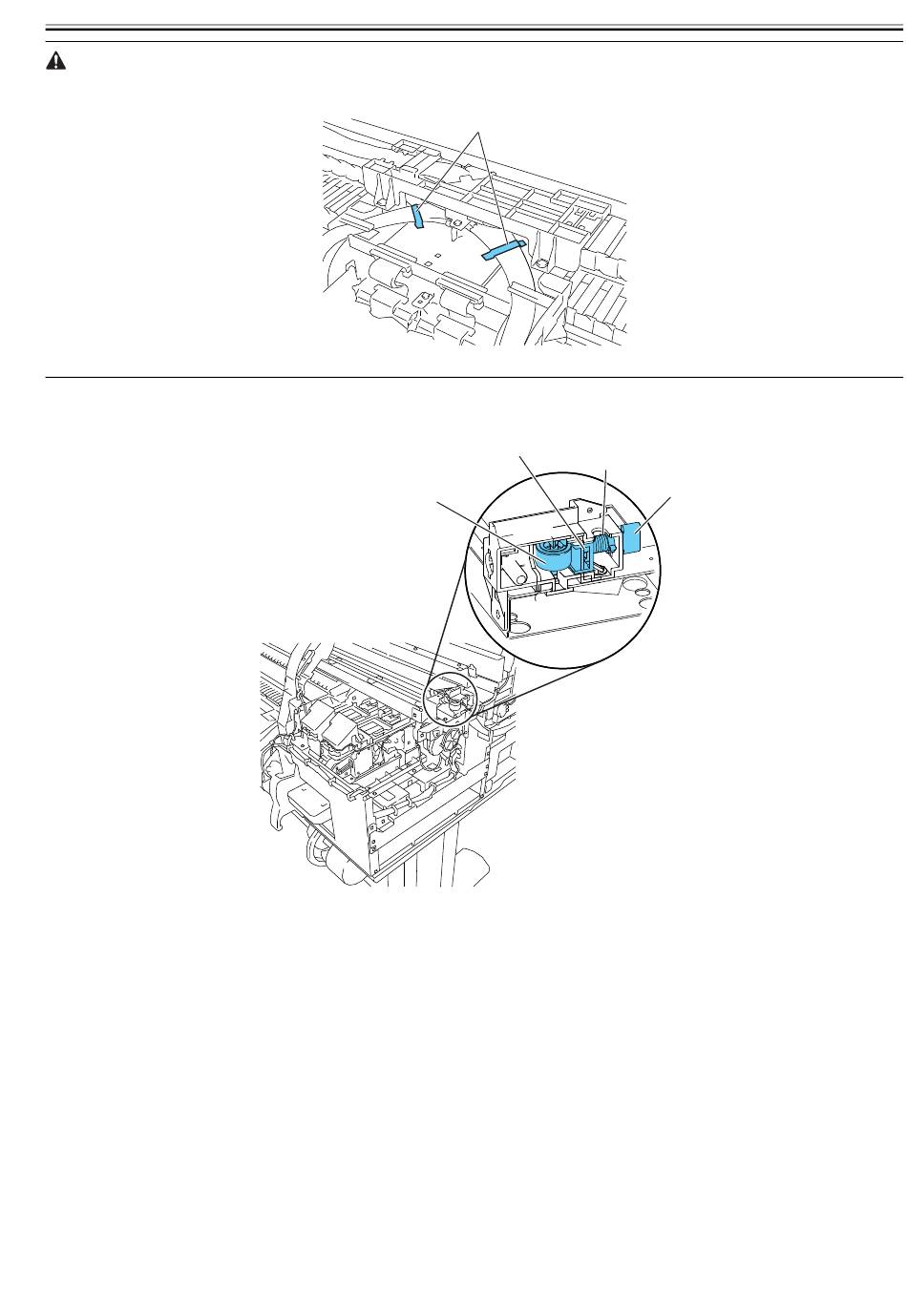

Never peel off tape [1] that fixes the ink tube when detaching the joints of the ink tube on the upper part of the carriage or when removing the joint base from the
carriage.
8) Twist off belt fixer knob [1] to loosen the belt, and remove spring [2], guide [3] and pulley [4].
9) Release carriage belt from the pulley of the carriage motor.
[1]
F-4-30
[3]
[4]
F-4-31
[2]
[1]
Chapter 4
4-17
